Magnetic Field Meter MP-4000

Magnetic Field Meter MP-4000

Waveform Display in under a Millisecond

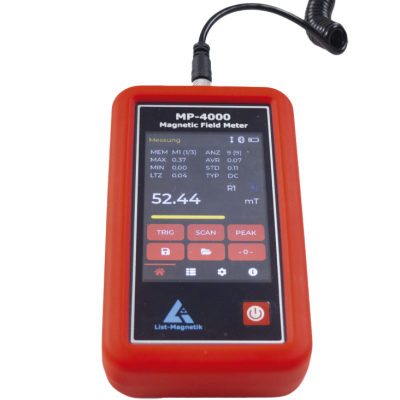

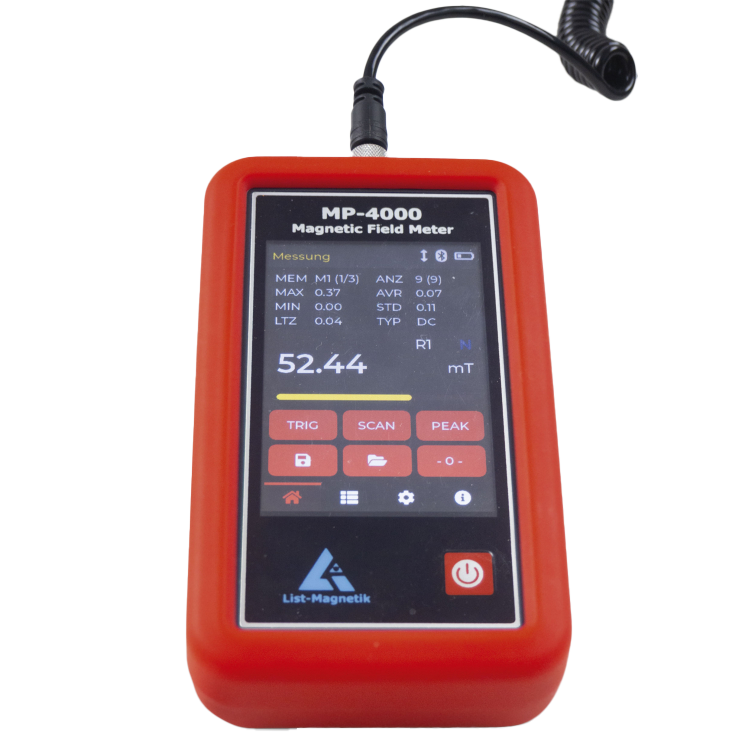

The MP-4000 is a professional grade gauss meter capable of measuring DC, AC, and Pulse Fields. It has a maximum field strength of 40,000 A/cm (50,265 G). Perhaps the most outstanding feature is it displays waveforms in 0.1 milliseconds using the trigger measurement function and displays this information in graph form. Additionally, stable DC fields can be detected by area, which can be statistically evaluated, via the scan measurement function. All data is recorded and can be sent to an Apple iOS or Android device via Bluetooth or directly to a Windows PC through USB connection. The MP-4000 precision and probe-modularity make it suitable for nearly all low frequency magnetic field testing.

Features

  • LCD Touch Panel with 320x480 Resolution
  • Innovative User Interface
  • Bluetooth and USB Connectivity
  • Interchangeable Probes
  • Graphical Measurement Display
  • Trigger and Scan Measurement Functionality
  • A Maximum Range of 40,000 A/cm

What are the differences between Axial and Transverse Probes?

The Axial probe measures in the same direction of the probe. Transverse probes measure at an angle of 90° to the probe. The Transverse probe is the more universal of the two probe types because practically all measurements of the axial probe can be carried out transversally. However, the Axial probe has an edge over the Transverse probe in its 2mm distance between Hall sensor and probe cap. This is advantageous in situations such as ball bearing production, where probe distance to the Hall sensor has become the standard. As it stands, the transverse probe will suit most needs but the user should consider the material and industry standards when deciding between Axial and Transverse Probes.



Probes (Measuring range 0 – 20,000 A/cm)

Axial Field Probe PM2-A

The axial field probe measures the field along the longitudinal axis of the probe and is suitable for measuring on planar or curved surfaces and particularly in bores. The hall sensor in the axial probe is placed at a precise distance of 2 mm to the surface.

Transverse Field Probe PM2-T

The tangential field probe measures the field in a 90 degree angle to the axis of the probe and is suitable for measuring in air gaps, hollow spaces or on the surface of workpieces (e.g. for crack testing).

Transverse Flexible Reed Probe PM2-TR

The transverse reed probe measures the field in a 90 degree angle to the axis of the probe. It is flexible by approx. 5 degrees and is suitable for measuring in air gaps, hollow spaces or on the surface of workpieces (e.g. for crack testing).

Probes (Measuring range 0 – 40,000 A/cm)

Axial Field Probe PM4-A

The axial field probe measures the field along the longitudinal axis of the probe and is suitable for measuring on planar or curved surfaces and particularly in bores. The hall sensor in the axial probe is placed at a precise distance of 2 mm to the surface.

Transverse Field Probe PM4-T

The transverse field probe measures the field in a 90 degree angle to the axis of the probe and is suitable for measuring in air gaps, hollow spaces or on the surface of workpieces (e.g. for crack testing).

Transverse Flexible Reed Probe PM4-TR

The transverse reed probe measures the field in a 90 degree angle to the axis of the probe. It is flexible by approx. 5 degrees and is suitable for measuring in air gaps, hollow spaces or on the surface of workpieces (e.g. for crack testing).

Scan and Trigger Measurements

  • The Scan Measurement functionality provides a graphical curve of the magnetic field. This is achieved by generating a continuous reading of the magnetic field that is being observed. The graphical curve is bounded by the minimum and maximum values of the magnetic field and offers statistical evolutions.

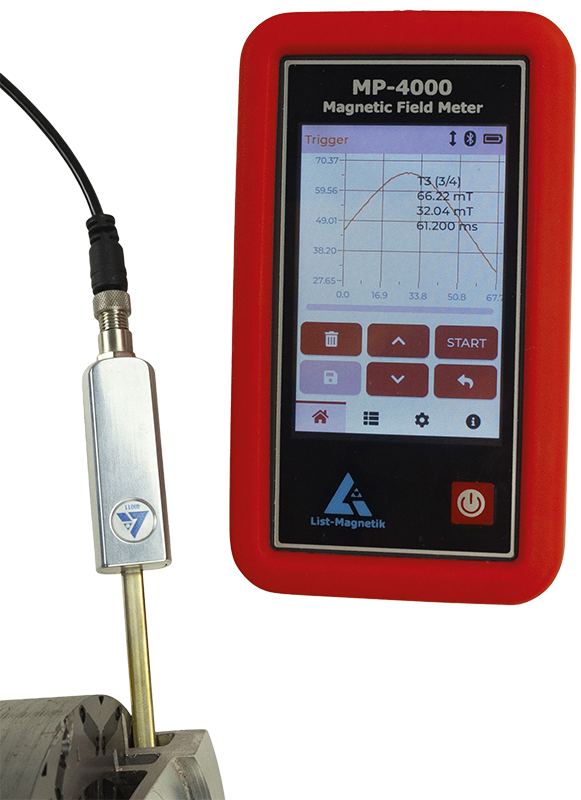

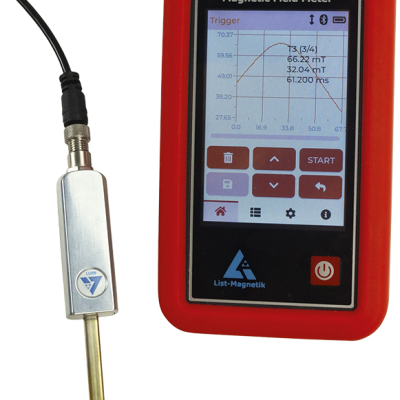

  • The Trigger Measurement functionality captures and stores the peak value of a magnetic field pulse. This measurement can make an exact recording of the measured values in a matter of milliseconds.

Manage and send Measurement Data with free Software

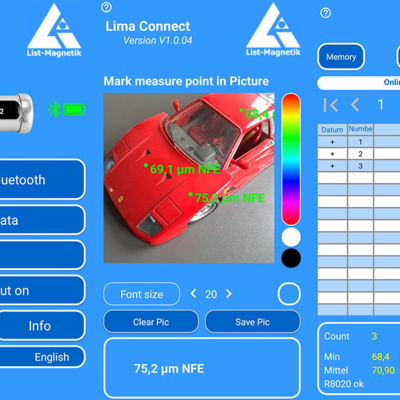

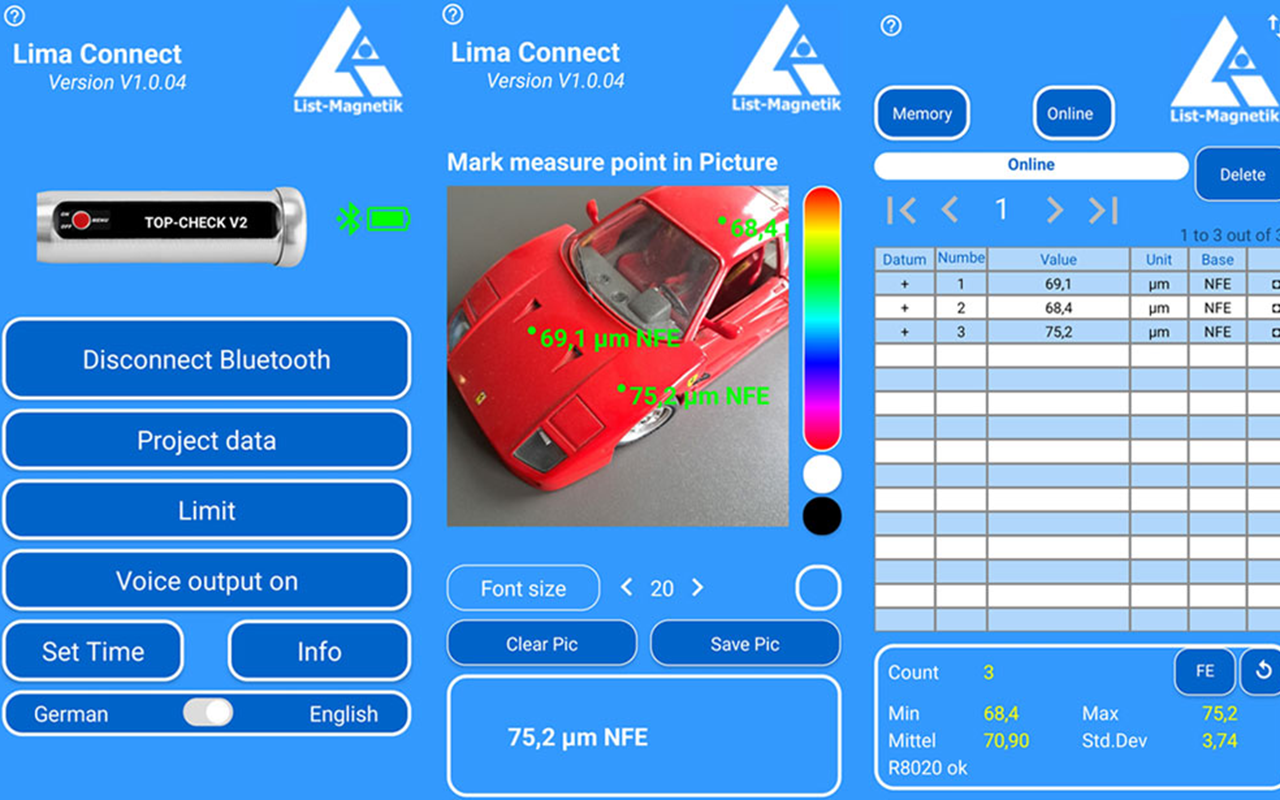

The MP-4000 packages comes with a free data management software. Access the MP-4000s data on your Windows PC through USB connection, or over Bluetooth on your iOS or Android device via Lima Connect. Lima allows you to manage projects, assign measuring points, display graphical readings, and more.

Technical Specifications

MP-4000 Specifications

 MP-4000
Measuring Units:  A/cm - kA/m - Gauss / Oersted - Tesla switchable
(1 A/cm = 0.1 kA/m = 1.256 Gauss = 1.256 Oersted = 0.1256 mT)
 Applicable Probes: Axial probes PM2-A and PM4-A, transversal probes PM2-T, PM2-TR, PM4-T and PM4-TR
 Measuring Range Direct Field / DC:  0-40,000 A/cm
 Measuring Range Alternating field / AC:  0-40,000 A/cm
 Accuracy:  in homogeneous field
± 1 A/cm to 50 A/cm,
± 2% of measured value from 50 A/cm,
± 3% of measured value from 20,000 A/cm
 Resolution: 0-1000 A/cm: 0.1 A/cm,
> 1000 A/cm: 1 A/cm
 Frequency Range AC:  2 Hz - 20 kHz
 Peak Value Memory:  at pulse time >= 0.1 msec
 Display:  LCD touch panel color 320x480 pixel
 Multilingual Menu Navigation:  German, English, Italian, French, Spanish
Data Logger:  10,000 measurements, flexibly divisible
Statistics:  count / maximum / minimum / average / standard deviation
Interface:  Bluetooth Low Energy interface for communication with Android, iOS and Windows
App for Android, iOS, Windows:  free of charge via Google Play Store, Apple App Store, List-Magnetik website
Power Supply:  3x 1.5 V AA Mignon. External power supply can be connected via USB-C
Operating Time:  approx. 25 hours with battery, unlimited with external power supply
Dimensions: 5.91 x 3.35 x 1.38 in (150 x 85 x 35 mm)
Weight: 11.29 oz (320 g) with batteries
MP-4000 Probe Specifications

MP-4000 Probe Specifications


Axial Field Probe PM2-A

 Axial Field Probe PM4-A

Transverse Field Probe PM2-T

 Transverse Field Probe PM4-T Transverse Flexible Reed Probe PM2-TR Transverse Flexible Reed Probe PM4-TR
Measuring Range: 0-20,000 A/cm /
0-20,000 Gauss /
0-2 T		 0-40,000 A/cm /
0-40,000 Gauss /
0-4 T		 0-20,000 A/cm /
0-20,000 Gauss /
0-2 T		 0-40,000 A/cm /
0-40,000 Gauss /
0-4 T		 0-20,000 A/cm /
0-20,000 Gauss /
0-2 T		 0-40,000 A/cm /
0-40,000 Gauss /
0-4 T
Probe Handle Length 3.35 in (85 mm) 3.35 in (85 mm) 3.35 in (85 mm) 3.35 in (85 mm) 3.35 in (85 mm) 3.35 in (85 mm)
Total Length: 5.91 in (150 mm) 5.91 in (150 mm) 6.10 in (155 mm) 6.10 in (155 mm) 5.91 in (150 mm) 5.91 in (150 mm)
Hall Sensor Distance:  0.079 in (2.0 mm) 0.079 in (2.0 mm) 0.035 in (0.9 mm) 0.035 in (0.9 mm) 0.016 in (0.4 mm) 0.016 in (0.4 mm)
Probe Thickness:  N/A N/A 0.067 in (1.7 mm) 0.067 in (1.7 mm) 0.028 in (0.7 mm) 0.028 in (0.7 mm)

Kit Includes

  • MP-4000 Magnetic Field Meter
  • Probe Cable
  • USB Bluetooth Receiver
  • Case
  • Calibration Certificate

Optional Accessories

  • Zero Gauss Chamber NGK-10: in order to be able to carry out the probe calibration for magnetic field measuring devices independently of the earth's magnetic field, a shielded Zero Gauss Chamber helps



  • Precision Calibration Standard 180 A/cm: a calibration standard is a reference magnet with which an axial or tangential measuring probe matched to it can be checked for accuracy by the user

Product Literature

Description Part # Saved Price Select Option Add to
List Magnetik Special NDT Kit Including: Magnetic Field Meter MP-4000 w/ Transversal Field Probe PM4-T, with probe cable, USB Bluetooth receiver and case, including calibration certificate. MT-LM-4000T
$1,771.00
List Magnetik Magnetic Field Meter MP-4000 without probe, with probe cable, USB Bluetooth receiver and case, including calibration certificate. (2030) MT-LM-2030
$960.00
List Magnetik Axial Field Probe PM2-A for MP-4000 MT-LM-2840
$1,175.00
List Magnetik Transverse Field Probe PM2-T for MP-4000 MT-LM-2841
$1,175.00
List Magnetik Transverse Flexible Reed Probe PM2-TR for MP-4000 MT-LM-2842
$1,175.00
List Magnetik Axial Field Probe PM4-A for MP-4000 MT-LM-2845
$1,250.00
List Magnetik Transverse Field Probe PM4-T for MP-4000 MT-LM-2846
$1,250.00
List Magnetik Transverse Flexible Reed Probe PM4-TR for MP-4000 MT-LM-2847
$1,250.00
Precision calibration standard 180 A/cm for axial or transversal field probes used with MP-810/-4000/-1000/-2000 MT-LM-2102
$455.00
Calibration Standard for Reed Probe 180 A/cm for use with MP-4000/-1000/-2000 MT-LM-2104
$380.00
List-Magnetik Spare Probe cable for the magnetic field meters MP-4000 / MP-1000 / MP-2000 / MP-5000, for the magnetic permeability meters FerroPro compact / FerroPro FP-5, for the fluxmeter FL-4 MT-LM-9320
$110.00
List-Magnetik Zero Gauss Chamber NGK-10 MT-LM-2110
$380.00
