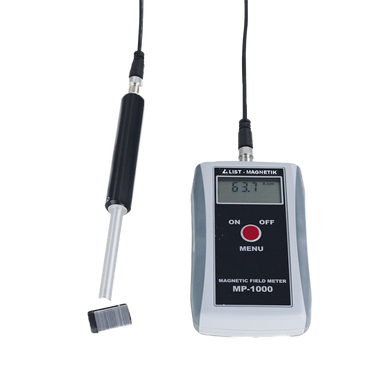

List-Magnetik MP-1000 Magnetic Field Meter

List-Magnetik MP-1000 Magnetic Field Meter

Gaussmeter for Measurement of Residual Magnetism in Metal

Modular and Reliable

The MP-1000 is a handy universal device with externally connectable transversal and axial field probes for the precise measurement of all types of magnetic fields; steady DC fields, alternating AC fields and pulsed fields. A separate built-in micro controller in the MP-1000‘s measuring probes digitizes and linearizes the analog measurement signals of the Hall sensor into the probe. This gives an extremely trouble-free and precise measurement, especially at high magnetic field strengths. It's one-button operation ensures efficiency. The probe cable is pluggable at both ends, at the display unit and the probe. Applications include: testing for residual magnetism, measurements of all magnetic fields, as well as the localization of stray fields for crack detection. In addition, a calibration standard (reference magnet) is available, with which you can always check your magnetic field tester for accuracy.

                                                    Probes

Axial Field Probe P-A3

The axial field probe measures the field along the longitudinal axis of the probe and is suitable for measuring on planar or curved surfaces and particularly in bores. The hall sensor in the axial probe is placed at a precise distance of 2 mm to the surface.

Transversal Field Probe P-T2

The transversal field probe measures the field in a 90 degree angle to the axis of the probe and is suitable for measuring in air gaps, hollow spaces or on the surface of workpieces (e.g. for crack testing).

Transversal Flexible Reed Probe P-Z2

The transversal flexible reed probe measures the field in a 90 degree angle to the axis of the probe. It is flexible by approx. 5 degrees and is suitable for measuring in air gaps, hollow spaces or on the surface of workpieces (e.g. for crack testing).

Angular Axial Probe P-W2

The axial field probe measures the field along the longitudinal axis of the probe. The angled tip allows measurement in gaps and behind projections.

Technical Specifications

MP-1000 Specifications

MP-1000
Measuring Units: A/cm – Gauss / Oersted
Measuring Probe:  Axial probes P-A2 and P-W2, Transversal probesP-T2 and P-Z2
Measuring Range DC: 0-20,000 A/cm
Measuring Range in AC: 20-20,000 A/cm
Accuracy: in the homogeneous field ±1 A/cm up to 50 A/cm, ± 2% of measured value from 50 A/cm
Resolution: 0–100 A/cm: 0,1 A/cm,
>= 100 A/cm: 1 A/cm,
>= 1,000 A/cm: 10 A/cm,
>= 10,000 A/cm: 100 A/cm
Peak Hold: with Impulse duration >= 0.1 millisecond
Frequency Range AC: 10 Hz – 5 kHz
Display: LCD display 3 digit
Power Supply: 2x 1.5 V AA Mignon
Operating Time: approx. 35 hours
Dimensions: 4.13 x 2.56 x 1.02 in (105 x 65 x 26 mm)
Weight: 4.83 oz (137 g) with battery

Kit Includes

  • MP-1000 Magnetic Field Meter
  • Probe Cable
  • Case
  • Calibration Certificate

Optional Accessories

  • Zero Gauss Chamber NGK-10: in order to be able to carry out the probe calibration for magnetic field measuring devices independently of the earth's magnetic field, a shielded Zero Gauss Chamber helps



  • Precision Calibration Standard 180 A/cm: a calibration standard is a reference magnet with which an axial or tangential measuring probe matched to it can be checked for accuracy by the user

Product Literature

Description Part # Saved Price Select Option Add to
Magnetic Field Meter MP-1000 without probe, with probe cable and case, including calibration certificate. (requires probe) MT-LM-2003
$1,095.00
Axial Field Probe P-A2 to measure magnetic fields with MP-1000 and MP-2000 MT-LM-2810
$675.00
Transversal field probe P-T2 to measure magnetic fields with MP-1000 and MP-2000 MT-LM-2811
$675.00
Flexible reed probe P-Z2 to measure magnetic fields with MP-1000 and MP-2000 MT-LM-2812
$675.00
Angular Axial Probe P-W2 to measure magnetic fields with MP-1000 and MP-2000 MT-LM-2813
$890.00
Precision calibration standard 180 A/cm for axial or transversal field probes used with MP-810/-4000/-1000/-2000 MT-LM-2102
$525.00
Calibration Standard for Reed Probe 180 A/cm for use with MP-4000/-1000/-2000 MT-LM-2104
$420.00
List-Magnetik Spare Probe cable for the magnetic field meters MP-4000 / MP-1000 / MP-2000 / MP-5000, for the magnetic permeability meters FerroPro compact / FerroPro FP-5, for the fluxmeter FL-4 MT-LM-9320
$115.00
List-Magnetik Zero Gauss Chamber NGK-10 MT-LM-2110
$445.00
