Karl Deutsch Deutrometer 3873 Field Strength Meter

Karl Deutsch Deutrometer 3873 Field Strength Meter

Simple and Convenient with Automatic Measurement of Magnetic Field Strength, UV & White Light

Rugged & User Friendly

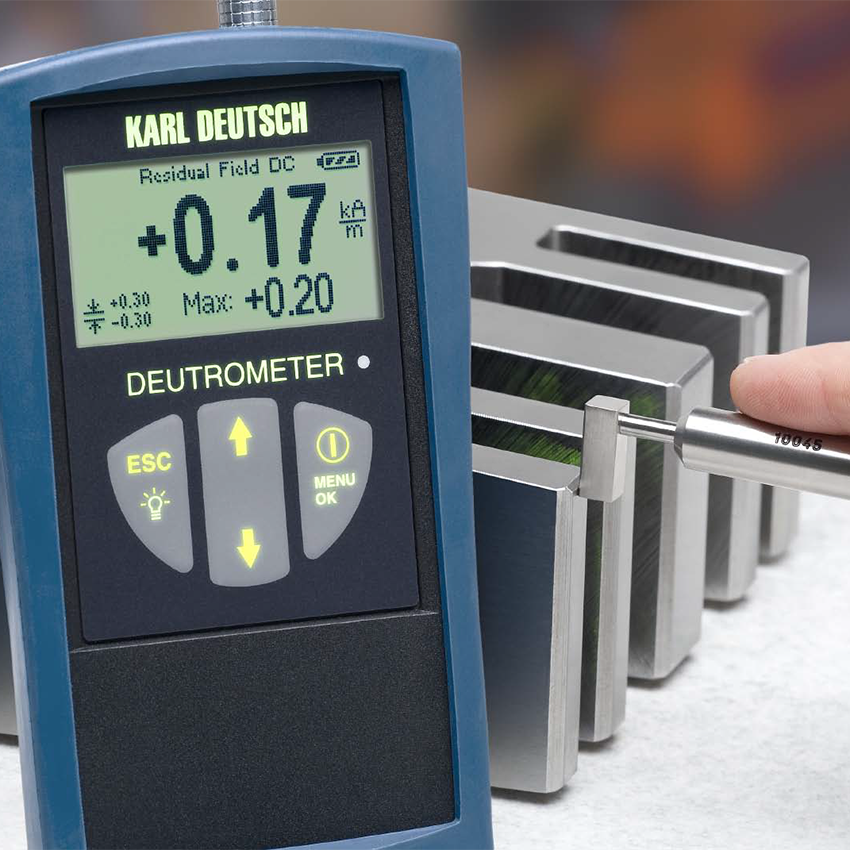

The Deutrometer 3873 is a professional instrument that quickly and easily measures magnetic direct and alternating fields in the low frequency range (20 Hz to 500 Hz). It provides simple and convenient field strength measurement and monitoring of limit values.  It is also possible to measure UV and white light with the DeutroLight special probe. The Deutrometer 3873 has an operating mode that recognizes and measures both magnetizing strength and residual field strength immediately one after the other, eliminating the need for switching manually and thus reducing false measurements due to incorrect gauge selections. The simultaneous representation of readings and maximum values as well as the selectable visual and acoustic limit alarm complete the practical qualities of the new gauge.

Applications

  • Measuring the tangential field strength during magnetization
  • Measurement of the residual field after demagnetization
  • Can be used as a flux density meter (tesla meter)
  • Measures UV irradiance and illuminance of residual light with special probe.











Features

  • Measurement parameters:
    • Magnetic field strength H or induction B (in air) in direct (DC) and alternating fields (AC)
    • UV irradiance Ee, white light illuminance Ev
  • Measuring units:
    • kA/m, A/cm, mT and Gauss
    • UV Light: W/m2 or μW/cm2; White Light: 1x
  • With automatic measuring mode for easy and fast measurements
  • 2 selectable display modes: standard indication, bar graph indication for visual monitoring of limits
  • “True RMS” mean values in AC fields
  • Battery-saving illumination, lettering fluoresces under UV light
  • User friendly menu with clear readings
  • Integrated flip stand
  • Splash-proof housing (IP 54)
  • Meets the requirements of EN ISO 9934-3:2002 chapter 9.3 for field measurement and also DIN EN ISO 3059:2012 for light measurement
  • Suitable for testing tasks according to EN ISO 17638 chapter 5.5.2

UV & White Light Measurement

For a standard MT or PT test, the viewing conditions need to be monitored. A special probe, the DeutroLight sensor, enables the combined measurement of UV and white light illuminance. Here, the lux illuminance measurement is not influenced by the UV radiation, so that a measurement (in compliance with ISO 3059) is possible even when the UV lamp is switched on.



Operating Modes

  • Measurement of alternating field / direct field (automatic detection)
  • Measurement of alternating field / direct field (automatic detection) with monitoring of limit values
  • Measurement of direct fields (e. g. for residual fields)
  • Measurement of alternating fields (e. g. measurement of magnetization strength)

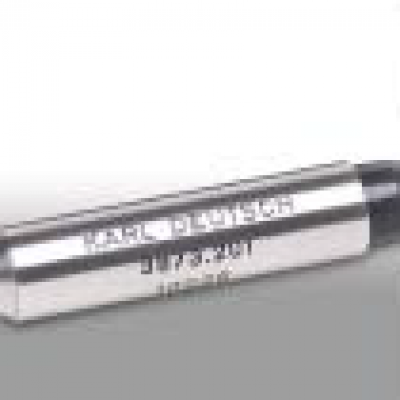

Probes

  • Angled 90° (Order #: 3873.101)
  • Straight (Order #: 3873.201)
  • Angled 90°, for transverse fields (Order #: 3873.301)

When using the device in oily environments, the paraffin resistant probes are recommended:

  • Angled 90°, paraffin resistant (Order #: 3873.111)
  • Straight, paraffin resistant (Order #: 3873.211)

Kit and Accessories

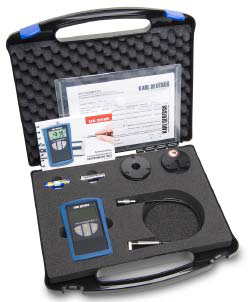

Kit Includes

  • Hard Carrying Case
  • Detailed Instruction Manual
  • Quality Test Certificate
  • Batteries



Accessories

  • Zero Field Chamber with field-free space
  • Reference Magnet for checking the instrument

Technical Specifications

Deutrometer 3873 Specifications

Display

LCD, Illuminated

48mm x 24 mm approx.
Display Graphic Capability

128 px x 64 px

Font Height up to 12.5 mm
Measurements Field Measurement: Magnetic field strength H and/or induction B (in air) in direct (DC) and alternating fields (AC)
Light Measurement: UV irradiance Ee, white light illuminance Ev
Uncertainty of Measurement Field Measurement: ±0.01 kA/m ± 2 % (DC residual field mode), ±0.05 kA/m ± 4 % (modes: AC/DC standard, AC/DC limit, AC/DC peak, AC magnetization).
Light Measurement: ±5 % (white light illuminance), ±7 % (UV)
Measuring Ranges

± 80 kA/m or ± 101 mT or ± 1005 G, 0 upt o 20000 1x (white light), 0 up to 2000 μW/cm2 or 200 W/m2 (UV)
Measuring Principle Field Measurement: Hall Sensor
Measuring Units Field Measurement: mT, A/cm, kA/m, Gauss
UV Light: W/m2 or μW/cm2
White Light Measurement: 1x
Measuring Methods DC: Measurement of a time-variant DC field with indication of +/- for the direction of the magnetic field
AC: RMS value in an alternating field (True RMS)
Probe Design Field Probes: 0° or 90° probe head, ~1 m connection cable, paraffin resistant, weight ~ 45 g
Light Probe: cylindrical Ø 44 mm, 35 mm long, ~ 1 m connection cable, weight ~ 160 g
Spectral Range of the UV + White Light Probe White Light: 380 nm - 780 nm
UV: 315 nm - 400 nm (UVA)
Power Supply 2 pcs. alkaline manganese batteries (operating hours: 50 h approx.) or
2 pcs. NiMH rechargeable batteries (operating hours: 30 h approx., if new), type AA/IEC R6
Externally via mains unit or via USB cable from a PC
Battery Check 4-stage battery level indicator, automatic battery end-of-life switch-off
Keyboard 4 keys, lettering fluoresces under UV light
Size 5.23" x 3.18" x 1.25" (133 mm × 81 mm × 32 mm) approx.
Weight 150 g (with batteries, w/o protective rubber holster)
Applicable Standards Field Measurement: EN ISO 17638, section 5.5.2, EN ISO 9934-3:2002, section 9.3
Light Measurement: DIN EN ISO 3059:2012

Product Literature

Description Part # Saved Price Select Option Add to

Complete Kits
Karl Deutsch Deutrometer Package for field strength measurement includes: Deutrometer, probe, reference magnet, batteries and carrying case MT-KD-3873.901
Request Pricing
Karl Deutsch Deutrometer Light Package for UV and white light measurement includes: Deutrometer Light Meter, DeutroLight Probe, batteries and carrying case MT-KD-3873.902
Request Pricing
Karl Deutsch Deutrometer Universal Package includes: Deutrometer UV, White Light & Field Strength Combi Meter, Probe, Reference Magnet, DeutroLight Probe, batteries & carrying case MT-KD-3873.903
Request Pricing
Test kit for MP crack detection includes: Deutrometer Universal Meter, probe, reference magnet, DeutroLight Probe, Fluxa Test Block, Reference Block acc. to DIN EN 9934-3, Berthold flux indicator, residual field indicator, Centrifuge tube & holder MT-KD-3865.006
Request Pricing
Test kit for Basic MP crack detection includes: Deutrometer Universal Meter, DeuroLight Probe & reference block according to DIN EN 9934-3 MT-KD-3865.007
Request Pricing

Instrument Only
Karl Deutsch Deutrometer 3873, Field Strength Meter, Including Batteries and Carrying Case (Probe Not Included) MT-KD-3873.001
Request Pricing
Karl Deutsch Deutrometer 3873 Light UV & White Light Meter, Including Batteries and Carrying Case (Probe Not Included) MT-KD-3873.002
Request Pricing
Karl Deutsch Deutrometer 3873 Universal, UV, White Light & Field Strength Combi Meter, Including Batteries and Carrying Case (Probe Not Included) UV-KD-3873.003
Request Pricing

Probes Only
Probe for Deutrometer 3873, Angled for 90° (Price Only Valid with Purchase of Instrument) MT-KD-3873.101
Request Pricing
Probe for Deutrometer 3873, Straight (Price Only Valid with Purchase of Instrument) MT-KD-3873.201
Request Pricing
Probe for Deutrometer 3873, Angled for 90°, for Transverse Fields (Price Only Valid with Purchase of Instrument) MT-KD-3873.301
Request Pricing
DeuroLight Probe for Deutrometer 3873, UV & White Light Probe (Price Only Valid with Purchase of Instrument) UV-KD-3869.101
Request Pricing
Reference Magnet for Deutrometer Probes MT-KD-3872.601
Request Pricing
Zero Field Chamber for Deutrometer Probes MT-KD-3872.701
Request Pricing
