| Foerster Magnetoscop 1.070 Permeability Meter, Magnetometer System | MI-FR-MAGNETOSCOP-1.070 |
|
Request Pricing | ||

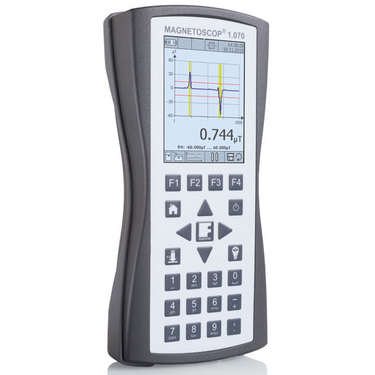

The Magnetoscop 1.070 is a portable magnetometer system with microprocessor and probes for measuring the magnetic flux density as an absolute or differential value (gradient). It has a USB port for simple data transfer and an SD card for saving measurement data and parameters. The measuring system also facilitates the recognition and saving of peak values and the adjustment of thresholds for limit values. The unit can be used for series and individual measurements. The data can be easily analyzed and documented with the PC software included in the scope of delivery. The Magnetoscop 1.070 thus facilitates the portable and fast measurement of the relative permeability within the scope of the quality control of stainless steel and low-permeable (non-magnetic) alloys as well as the localization of ferrite enclosures. Changes in material (sulfidation, degradation of lamination, structural changes) can also be proven thanks to permeability comparative measurements.
Typical industries include research and development, medical, defense and aerospace.
| Measuring Range |
0,1 nT to 1 mT (Fluxgate Probes) |
| Uncertainty of Field Measurement | 1.5% of measuring value Hall Probes: 1 µT to 40 mT 2% of the measured value 40 mT to 50 mT 4% of the measured value |
| Uncertainty of Permeability Measurement | 5% of measured value |
| Resolution | 24 Bit ADC |
| Dimensions | 212 x 102 x 41 mm |
| Weight | 0.62 kg |
| Protection Grade | IP 54 |
| Ambient Temperature | 0 to 40°C |
| Battery Type | 4 pcs. Mignon, AA, LR6 |
| Standards | ASTM A342M API Spec 7 AEODP-7 IEC 60404-15 STANGAG 2897 VG 95578 |
Field- and Differential-Measurement
PN: 2084880
Complete kit including flexible arranged probe pair PFD-100 for determination of absolute magnetic field or gradient, depending on orientation of the probe elements.
Field-Measurement
PN: 2084899
Complete kit including probe PF-1000 with axial arranged sensor elements for field detection with high spatial resolution.
Field-Measurement Hall Transversal
PN: 2084910
Complete kit including probe PH-50-TR and Zero-gauss chamber with perpendicular to the longitudinal axis of the probe arranged sensor element for field detection with high spatial resolution.
Field-Measurement Hall Axial
PN: 2084902
Complete kit including probe PH-50-AX and Zero-gauss chamber with parallel to the longitudinal axis of the probe arranged sensor element for field detection with high spatial resolution.
Differential-Measurement 100 mm
PN: 2084937
Complete kit including differential probe PD-100-100 with coaxially at 100 mm distance arranged sensor elements, for detection larger magnetic anomalies.
Differential-Measurement 20 mm
PN: 2084929
Complete kit including differential probe PD-100-20 with coaxially at 20 mm distance arranged sensor elements, for detection of small magnetic anomalies with flux lines emerging from a component perpendicular to the surface.
Permeability Measurement
PN: 2084945
Complete kit including permeability probe PP-2-5 and reference standard traceable to German National Standards (PTB).
| Item | Part Number |
| Magnetoscop 1.070 | 1991892 |
| Item | Part Number | Details |
| Field and Differential Probe PFD-100 | 2061422 | Flexible arranged probe pair PFD-100 for determination of absolute magnetic field or difference (gradient), depending on orientation of the probe elements, measuring range 100 µT, 3 m cable |
| Field Probe PF-1000 |
2061414 | Measuring range 1 mT, Probe PF-1000 with axially arranged sensor elements for field detection with high spatial resolution, 3 m cable |
| Field Probe PH-50-TR |
2061350 | Measuring range 1 µT to 50 mT, Probe PH-50-TR with transversally arranged sensor element for field detection, 3 m cable |
| Field probe PH-50-AX |
2084600 | Measuring range 1 µT to 50 mT, Probe PH-50-AX with axially arranged sensor element for field detection, 3 m cable |
| Differential Probe PD-100-100 |
2061430 | Measuring range up to 100 µT gradient, Probe PD-100-100 with coaxially at 100 mm distance arranged sensor elements, for detection of larger magnetic field anomalies, 3 m cable |
| Differential Probe PD-100-20 |
2061368 | Measuring range up to 100 µT gradient, Probe PD-100-20 with coaxially at 20 mm distance arranged sensor elements, for detection of smaller magnetic field anomalies and flux lines emerging from a component perpendicular to the surface, 3 m cable |
| Permeability Probe PP-2-5 |
2061392 | Probe for the determination of the relative magnetic permeability µr of semi finished products and components Measuring range µr 1,00000 to 2,00000 3 m cable |
| Item | Part Number | Details |
| Mains Adapter | 1863843 | 5 VDC, 2.4 A, 100 - 240 VAC, 50/60 Hz |
| Battery Charger |
0372161 | 100 - 240 VAC, 50/60 Hz, for battery type Mignon, AA, HR6 |
| Battery Charger for External Battery Pack | 2085143 | 5 VDC, 2.2 A, 100 - 240 VAC, 50/60 Hz |
| Battery 1.5V |
0087700 | Alkaline, Type Mignon, AA, LR6 |
| NiMH Battery - 1.2V | 0377201 | 2850 mAh, Type Mignon, AA, HR6 |
| Battery Pack (External) |
0377236 | 10000 mAh, 5 VDC, 2.4 A, incl. charging cable |
| Item | Part Number | Details |
| Trigger Cable | 2053527 | To connect external trigger devices |
| Extension Cable - 5m |
2084848 | Fits all MAGNETOSCOP 1.070 probes |
| Extension Cable - 15m | 2084856 | Fits all MAGNETOSCOP 1.070 probes |
| Extension Cable 5 m - Hall Probes |
2084872 | Fits to the MAGNETOSCOP 1.070 Hall probes (Type PH) |
| Cable 0.8 m - External Battery Pack | 2075237 | To connect external battery pack with MAGNETOSCOP measuring instrument. (Battery pack in belt bag) |
| Cable 0.15 m - External Battery Pack | 2075245 | To connect external battery pack with MAGNETOSCOP measuring instrument. (Battery pack in carrying bag) |
| USB Cable 2.0 A/B - 2 m |
0377244 | For data transfer between MAGNETOSCOP 1.070 and PC |
| Item | Part Number | Details |
| Reference Standard µr = 1.005 | 2093219 | incl. certificate, actual value varies from nominal value |
| Reference Standard µr = 1.025 |
2093200 | incl. certificate, actual value varies from nominal value |
| Reference Standard µr = 1.05 | 2075296 | incl. certificate, actual value varies from nominal value |
| Reference Standard µr = 1.2 |
2093197 | incl. certificate, actual value varies from nominal value |
| Item | Part Number | Details |
| MAGDATA TRANSFER Software | 2081318 | Loading of measuring data from the MAGNETOSCOP Converting of measurement data set in different formats Loading of software-updates on the MAGNETOSCOP |
| MAGDATA VIEW Software |
2093227 | Data selection and reduction Visualization of measuring data Processing of dynamic measurement methods including trigger information Statistical evaluation of measurement series Report generation and printing Creation of templates for measuring and testing procedures and transfer to the MAGNETOSCOP |
| MAGDATA HOTSPOT Software | 2093235 | Data selection and reduction Visualization of measuring data Processing of dynamic measurement methods including trigger information Processing of reference measurements for Offset-compensation Definition and display of treshold values, highlighting of magnetic anomalies Report generation according to API Spec 7 |
| Item | Part Number | Details |
| Probe Holder - PFD-100 | 2081245 | To fix PFD-100 probe elements precisely. |
| Adapter PP-2-5 |
2075270 | To place the permeability probe PP-2-5 precisely on the reference standard. |
| Zero-Gauss Chamber |
2121344 | For zero-compensation of PH-50 probes |
| SDHC Card |
0367206 | 32 GB, approved for use with MAGNETOSCOP 1.070 |
| Transport Case |
2069857 | Hard, protective transport case |
| Carrying Bag |
2093561 | Incl. strap and bag for external battery pack |
| Belt Pouch |
2093570 | For external battery pack |
| Protection Cap Interface |
2069830 | |
| Protection Cap Probe Connection |
2069792 | |
| Protection Cap Probe PP-2-5 |
0307580 | Soft Rubber |
| Wear Protection Probe PP-2-5 |
2061791 | Ceramic cap to protect the magnetic probe tip |
