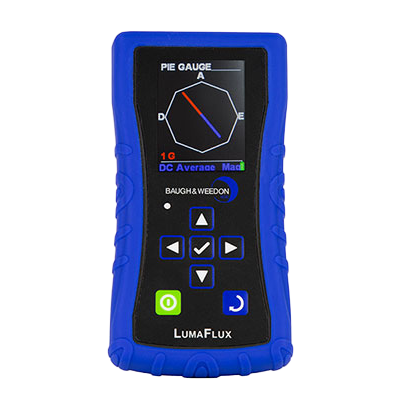

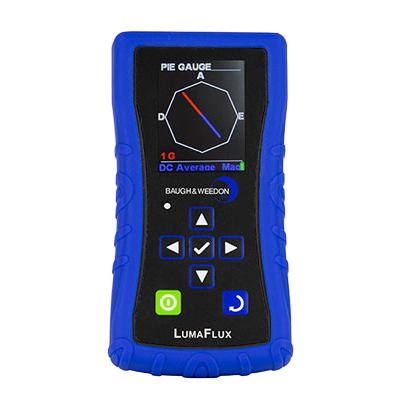

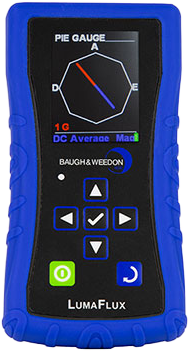

B&W LumaFlux Tangential Field Strength Meter

B&W LumaFlux Tangential Field Strength Meter

Dual UV & White Light and Tangential Field Strength Meter



Powerful and Portable Combined UV / White Light and Tangential Field Strength Meter

The Baugh & Weedon LumaFlux combines all the established functions of the LumaCheck Dual UV / White Light Meter and the unique benefits of the MagnaCheck 3D Tangential Field Strength Meter in one rugged instrumentation package. With the easy "Swap & Go" system to change sensors, the LumaFlux automatically recognizes the Sensor that is connected and operates in the selected mode until the sensors are swapped again. The unique 3D sensor will increase your efficiency and save you time, while its rugged, ergonomic design ensures that no matter your application, the LumaFlux is up to the task.



Features:

  • Two instruments in one allowing you to save on purchase cost
  • Excellent result accuracy in all measurement modes
  • Lightweight, compact and housed in a rugged enclosure
  • Battery powered
  • Ergonomically designed with protective rubber boot
  • Full color programmable library
  • Programmable calibration reminder
  • Separate probes and cables for convenience and lower spares and maintenance costs

*Note: the specifications below refer to the LumaCheck and the MagnaCheck 3D, both of which combined make up the LumaFlux

Technical Specifications

LumaCheck Specifications

Measuring Range

UV-A: 0 to 10,000 µW/cm2
*Factory certified up to 5,000 µW/cm2
Visible: 5 lux to 10,000 lux
Resolution

UV-A: 0.15 to 10 µW/cm2 (micro watts per square cm)
Visible: 0.1 lux to 10 lux
Units

UV-A: µW/cm2 (micro watts per square cm)
Visible: Foot Candles (ft-c or fc or lm/ft.) or Lux
Display 2.8" (70mm) 320 x 240 pixels color display. LCD with selectable backlight.
Screen 5 readings per second
Conversion Rate 100ms
Resolution Up to 0.1 Lux & 0.1 µW/cm2 (configurable)
Dimensions Without Rubber Boot 6.4" x 3.15" x 1" (163 x 80 x 25mm)
Dimensions With Rubber Boot 6.6" x 3.35" x 1.2" (168 x 85 x30mm)
Weight 0.77 pounds (350g) including batteries
Power 2 x 1.5V AA Alkaline Batteries
PC Connectivity USB or mains charging capabilities
IP Standard IP54
Overall Accuracy Settable in menu system
Temperature Coefficient +/- 3% measured against primary standard
Irradiance Range

UV-A: 0 - 10,000 µW/cm2
Visible: 0 - 10,000 Lux
Spectral Range

UV-A: 315 - 400nm
Visible: 460 - 680nm
MagnaCheck Specifications

  3D Probe 1D Probe
Measurement Range Up to 2,000 Gauss Up to 1,000 Gauss
Units Gauss, mTesla, Ka/m
Measurement Modes DC, AC Peak, True RMS
MPI Bench Support True RMS for thyristor switched fields True RMS and shot time measurement
Peak Hold Mode Off, 1, 2, 5 and 10 seconds Off, 1, 2, 5 and 10 seconds
Measurement Sample Rate 70 samples / second 500 samples / second
Measurement Resolution 0.16 Gauss 0.1 Gauss
Probe Type 3D Auto Recognition 1D Transverse
Sensor Calibration Stored digitally in probe
Measurement Accuracy 1%
Standards Compliance ASTM E1444/1444M-16 and EN ISO 9934-3
Zeroing Manual zero with null pot supplied
Display Type Color LCD with selectable backlight
Display Size and Resolution 2.8" (70 mm), 320x240 pixels
Power 2x 1.5V AA Batteries
Typical Battery Life In excess of 10 hrs continuous use
Dimensions

Without Rubber Boot: 6.4" x 3" x 1" (163 x 80 x 25 mm)

With Rubber Boot: 6.6" x 3.3" x 1.2" (168 x 85 x 30 mm)
Weight 0.77 lbs (350 g) including batteries



Kit Includes:

  • LumaFlux Tangential Field Strength Meter
  • Dual UV & White Light Sensor
  • Tangential Field Strength Probe (specify 3D or 4D)
  • Probe Cable
  • Metal Null Pot
  • Carrying Case
  • Calibration Certificate

Product Literature

Description Part # Saved Price Select Option Add to
Baugh & Weedon Lumaflux 3D Meter with Dual UV / White Light Sensor, 3D Tangential Field Strength Meter, Probe Cable, Metal Null Pot, Rubber Boot, Carrying Case and Calibration Certification UV-BW-LumaFlux-3D
$2,910.00
Baugh & Weedon LumaFlux 4D Meter with Dual UV/ White Light Sensor, 4D Tangential Field Strength Probe, Probe Cable, Metal Null Pot, Rubber Boot, Carrying Case and Calibration Certificate UV-BW-LumaFlux-4D
$3,550.00
