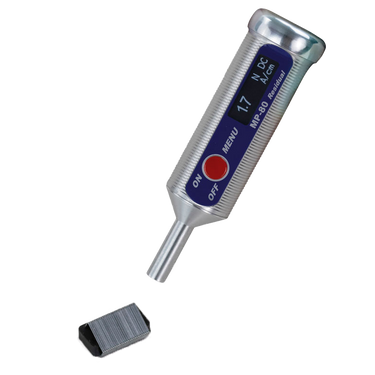

The MP-80 reliably determines the residual magnetism on ferromagnetic iron and steel; it is also used to check demagnetized parts. The MP-80 excels in the area of detecting weak magnetic fields. Its compact design and metal housing means it can withstand oily vapors and moisture. It is less prone to wear and tear on the probe and cable. The Hall sensor in the axial field probe is located at a defined measuring distance of 2.0 mm from the measuring surface. The MP-80 arrives ready with a calibration standard of 5 A/cm to ensure proper functionality. With the MP-80's stable digital readings, you have the perfect residual magnetic field meter.
| MP-80 | |
| Measuring Units: | A/cm – kA/m - Gauss (Oe) – Tesla |
| Measuring Probe: | Integrated Axial Field Probe, ø 0.31 in (8mm) with Defined Measuring Distance of 0.08 inches (2.0 mm) |
| Measuring Range DC: | 0-100 A/cm |
| Accuracy: | in the homogeneous field ± 0,3 A/cm up to 10 A/cm, ± 3% of measured value from 10 A/cm |
| Resolution: | 0.1 A/cm or 0.01 mT |
| Peak Hold: | Recording rate approx. 10 readings / second |
| Display: | OLED Graphic Display Illuminated |
| Analog Display: | Bar Graph |
| Multilingual Menu Navigation: | German / English |
| Power supply: | 1x 1.5 V AA Mignon |
| Operating Time: | approx. 40 hours |
| Dimensions: | Ø 1.1 x 4.06 in (28 x 103 mm) |
| Weight: | 2.47 oz (73 g) with battery |
| Description | Part # | Saved | Price | Select Option | Add to |
|---|---|---|---|---|---|
| List-Magnetik Residual Magnetic Field Meter MP-80 with integrated axial field probe, calibration standard 5 A/cm, spare battery and case, including calibration certificate | MT-LM-2024 |
|
$1,495.00 | ||
| List-Magnetik Calibration standard 5 A/cm for MP-80 / MP-1 | MT-LM-2101 |
|
$445.00 | ||
| List-Magnetik Zero Gauss Chamber NGK-10 | MT-LM-2110 |
|
$380.00 | ||
