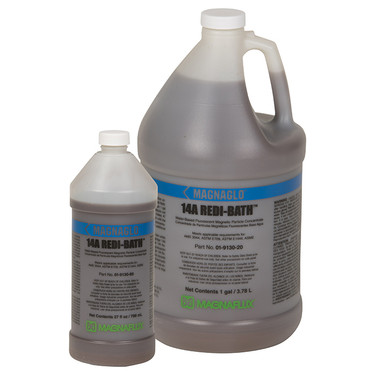

Magnaflux Magnaglo 14A Redi-Bath

Magnaflux Magnaglo 14A Redi-Bath

Easy Preparation, Highly Sensitive Water-Based Magnetic Particle Liquid

Overview

14A Redi-Bath is a highly sensitive water-based magnetic particle liquid with for locating very fine discontinuities in critical parts during fluorescent mag particle inspection. A concentrated liquid with the best-in-industry 14A magnetic particles with water conditioners and corrosion inhibitors, 14A Redi-Bath is designed to be diluted with water to make magnetic particle water bath. The ultra-sensitive 14A particles provide clear, bright, fluorescent green indications under ultra-violet black light for unbeatable inspection quality and accuracy, with superior corrosion protection. 14A Redi-Bath is an ideal choice for high-volume testing of machined parts, forgings and castings where the mag particle bath needs to be changed out frequently due to drag-in or heavy-use. 14A Redi-Bath meets all major industry and NDT specification requirements, including automotive, API and ASTM standards.

Recommended concentration is 2.7 oz./gallon (21 ml/liter).

Benefits

Increases Indication Detection with 14A Particles

  • Find smaller, finer indications in critical applications using the highly sensitive, strong ferromagnetic 14A fluorescent particles
  • Optimized particle size and shape help particles move freely to stick to a wide variety of discontinuities with less particle clumping

Minimizes Inspection Time

  • Clear, bright fluorescent indications form quickly due to the highly fluorescent, highly mobile 14A magnetic particles
  • Minimal background fluorescence help indications stand out more so inspectors need to spend less time examining each part

Improve Inspection Consistency and Reliability

  • Maintain magnetic particle system performance over greater periods of time thanks to the highly-durable, easily-dispersed 14A particles
  • Reduced particle clumping helps maintain particle concentration in the suspension bath for dependable inspections

Convenient to Use

  • Fast, reliable particle bath prep with the easy-to-use premix of 14A magnetic particles, water conditioners and corrosion preventatives
  • Designed to mix with water in low concentrations for an ideal balance of performance and economy

Features

  • Liquid particle concentrate for fast bath prep
  • High sensitivity
  • Excellent fluorescent contrast
  • Excellent particle mobility
  • Optimized particle size and shape distribution
  • Durable particles
  • Easily dispersed
  • Great concentration consistency
  • Superior corrosion protection
  • Non-foaming
  • Easy post-testing clean up
  • Superior surface wetting
  • Even surface coverage and higher probability of detection

Technical Specifications

14A Redi-Bath Specifications

Use Recommendations
NDT Method Magnetic Particle Testing, Fluorescent, Wet Method
Suspension Vehicle Water
Required Equipment Magnetizing device, UV light source
Usage Temperature 42 to 120 °F / 6 to 48 °C
Storage Temperature 50 to 86 °F / 10 to 30 °C
Settling Volume 0.10 – 0.40 mL
Product Properties
Appearance Liquid and fine particle solution
Color in Visible Light Brown
Color in UV Light Fluorescent yellow-green
Odor Subtle amine
Mean Particle Size 6 microns
SAE Sensitivity 8 – 9

Specification Compliance

14A Redi-Bath Specification Compliance

  • AMS 3044
  • ASTM E709
  • ASTM E1444
  • ASME
  • MIL-STD-2132
  • MIL-STD-271
  • NAVSEA 250-1500-1
  • NAVSEA T9074-AS-GIB-010/271
Description Part # Saved Price Select Option Add to
Magnaflux Magnaglo 14A Redi-bath (specify packaging)
Model #
MT-MX-01-9130 - Master $409.00
