The LPX-300 is being replaced by the SPX-300. For more information, click on the link - SPX-300

lpx-300
  • Constant Potential Output
  • End Grounded Exposed Anode
  • Portable, Repeatable, Accurate
  • 100% Duty Cycle
  • Unparalleled Resolution Imaging
  • Penetration of up to 76mm Fe
  • Liquid or Air Cooled Models

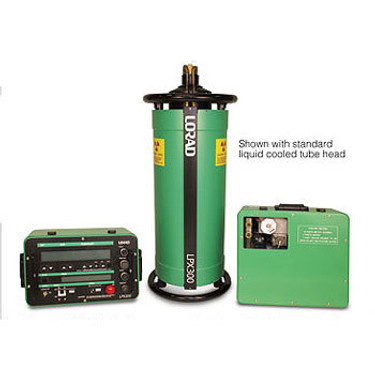

300 kV Portable Industrial NDT X-Ray Imaging System

Spellman's LPX Series are perfectly suited for today's demanding NDT inspection requirements. LPX units are rugged, yet easy to transport and economical to maintain. They can be line or portable generator powered, automati­cally adapting to standard input voltages, permitting all day inspection under extreme conditions virtually anywhere.

The end grounded X-Ray tubes have a focal spot size of 1.5mm sq and the exposed anode allows for easy and flexible positioning of the tube head assembly. The tube ports use a low-absorption beryllium window that allows the radiographer to utilize the full spectrum of X-Ray energy. The high radiation output of the LPX systems allow for lower kV per exposure, shorter exposure times and increased film contrast for superior radiographic imaging.

The LPX microprocessor-driven control unit provides automatic warm-up and comprehensive self-diagnostic circuitry. Memory to store and recall up to 250 exposure techniques is standard and the last set of exposure para­meters is retained before powering down. The LPX is adjustable in 1kV and 0.1mA increments. Exposure dura­tion can be set from 1 second to 99 min 59 seconds in 1 second increments; mAs is variable from 0 to 29995 mAs.

Typical Applications:

  • Aerospace
  • Manufacturing
  • Defense
  • Aviation
  • Energy
  • Security Systems
  • NDT Applications


Standard Accessories:

  • Operation Manual
  • Tubehead Carrying Case
  • Tubehead Cable - 100' with Strain Relief
  • Extra Key (1) for Control Unit Safety Lock
  • Power Cable - 25' with Strain Relief
  • Coolant Hose - Twin, 50' with Self-Sealing Terminations
  • Cooler Power Cable


Optional Accessories:

Laser Pointer
Spellman's exclusive Laser Pointer allows pinpoint image area targeting. The Laser Pointer projects a highly visible reference laser beam from the tubehead to surfaces up to 75 feet away, showing precisely where the central X-Ray beam will be located, providing unmatched accuracy for greater efficiency and reduced set up times.
lpx-laser-pointer
Model 1620 Tubehead Stand
An optional X-Ray Tubehead Stand allows for quick set up and provides rigid support for optimal image quality with three axis positioning of the tubehead assembly. The stand incorporates telescoping legs, a hand wheel-driven variable height adjustment and lockable hand wheel, controlling the tubehead tilt and horizontal rotation. The tubehead cradle is cushioned for secure mounting and vibration damping. A bubble-type indicator is included for quick and easy leveling of the tubehead. Black anodized aluminum construction. 35 lbs. (16 kg) approximately.
lpx-1620-tubehead-stand
Optional Air Cooled Tube Head Assembly
The air cooled tube head assembly uses a heat sink and high volume fan to dissipate heat from the anode and is used typically in applications that do not have limited access and are not in a votatile fuel vapor atmosphere. The air cooled tube head assembly does not require the cooler unit and the associated mixing and maintenance of liquid coolant. This unit requires less user maintenance and is considered environmentally friendly.
lpx-300-tubehead


lpx-300-images

Specifications:

Input Line Requirements:
Automatically adapts to input line voltage
100 - 130 VAC, 50/60 Hz, 20 Amperes maximum
200 - 250 VAC, 50/60 Hz, 10 Amperes maximum
May also be portable generator powered

X-Ray Output:
10 - 300 kV, 0.1 to 10.0mA (900 watts maximum)
Constant potential, end grounded anode, liquid cooled

X-Ray Tube Window:
Beryllium 1.0mm

Radiation Coverage:
40° x 60°

Radiation Output:
30 R/min at 50cm filtered with 0.5 inches (12.7mm) aluminum at 300 kV, 3.0mA

Duty Cycle:
100% - liquid cooled

Effective Focal Spot:
0.060 in. sq. (1.5 mm sq.)

Ambient Temperature:
100% duty cycle @ 120°F (49°C)

Storage Temperature:
-30°F to 160°F (-35°C to 71°C)

Anode Cooling:
Liquid coolant solution closed loop between X-Ray tube anode and cooling unit

Liquid Cooling Unit Dimensions:
12.7" x 15.5" x 15.7" (322.6 x 393.7 x 398.8 mm)

Liquid Cooling Unit Weight:
54 lbs. (24.5 kg) approximately

LPX300 Tube Head Dimensions:
Liquid Cooled: 12.00" x 43.00" (304.8 x 1092.2 mm)
Air Cooled: 12.00" x 49.00" (304.8 x 1244.6 mm)

LPX300 Tube Head Weight:
Liquid Cooled: 98 lbs. (44.5 kg)
Air Cooled: 105 lbs. (47.62 kg)

X-Ray Control Unit:
Digital microcomputer based

X-Ray Control Unit Dimensions:
12.7" x 17.5" x 10.5" (322.58 x 441.96 x 266.7 mm)

X-Ray Control Unit Weight:
34 lbs. (15.4 kg) approximately

Safety Devices:

  • Tubehead Pressure Relief Valve
  • Tubehead Thermal Cut-Out
  • Tubehead Pressure Gauge
  • Tubehead Low Pressure Cut-Out @ 25psi (1.72 Bar)
  • Coolant Flow Sensor
  • Control Unit Safety Keyswitch
  • Microcomputer based Self Diagnostics
  • Continuous Exposure Parameter Display


Radiation Leakage:
Less than 2.0 Roentgens per hour at 1 meter from the X-Ray tube target.
