Kowolux High Intensity Large LED Film Viewer

Kowolux High Intensity Large LED Film Viewer

Kowolux High Intensity Large Format LED Film Viewers

Suitable for large format X-ray film with low density
from castings to film used for wall thickness inspection on pipelines.

LX40

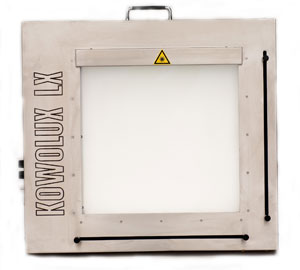

kowolux lx40		 LX60

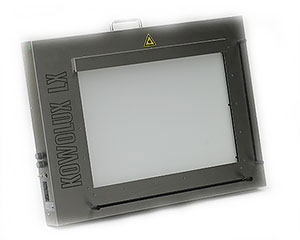

kowolux-lx60

Features:

  • Flat housing made of powder coated steel for wall mounting or table top with optional carry/set up device
  • Terminal strip for attaching X-ray film
  • Fully adjustable vertical and horizontal shutters for adopting illuminated areas to any film size
  • Two potentiometers for brightness control - 0.2 ... 100 percent
  • Cooling fan with temperature dependent speed control for low noise level
  • Optional Plug-in foot switch - Viewer is operable without the foot switch


LX40 LX60
Viewing Area:
Luminance:
Maximum Density:
Rated Power:
Size:
Weight:
Power Supply:
Color Temperature:
Lifetime of LEDs: 		430 x 430 mm / 17 x 17 inches
40,000 cd/m2 *
3.6 Density Max **
140 Watts
700 x 640 x 100 mm / 27.5 x 25.2 x 3.9 in.
20 kg. / 44 lbs.
88...264V / 47 - 63 Hz
5,000 K
40,000 hours 		600 x 430 mm / 23 x 17 inches
40,000 cd/m2 *
3.6 Density Max **
200 Watts
870 x 640 x 120 mm / 34.3 x 25.2 x 4.7 in.
25 kg. / 55 lbs.
88...264V / 47 - 63 Hz
5,000 K
40,000 hours

*Luminance approximately 10% higher than specified when delivered.
**according to DIN EN 25580, ISO 5582 and ASTM E1390 maximum evaluable density.

Product Literature

Description Part # Saved Price Select Option Add to
Kowolux LX40 LED Film Viewer (13 40195) RT-KT-LX40
$7,136.00 $6,490.00
Kowolux LX60 LED Film Viewer (13 40197) RT-KT-LX60
$8,613.00 $7,830.00
Foot switch with plug, separate RT-KT-LX-40086
$50.00
Feet and handle set for table top use RT-KT-LX-40199
$280.00
