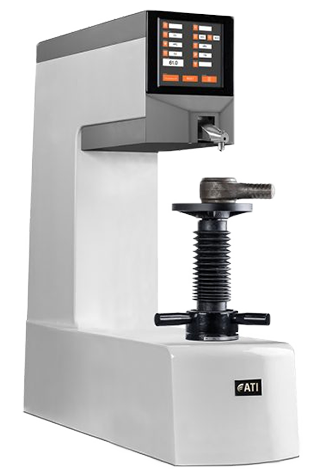

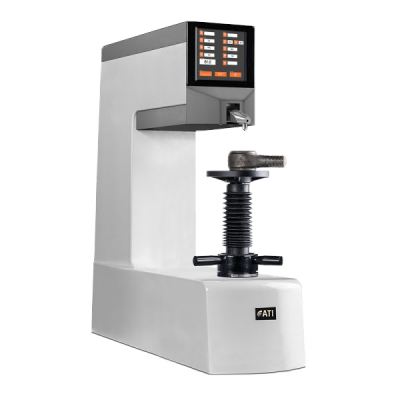

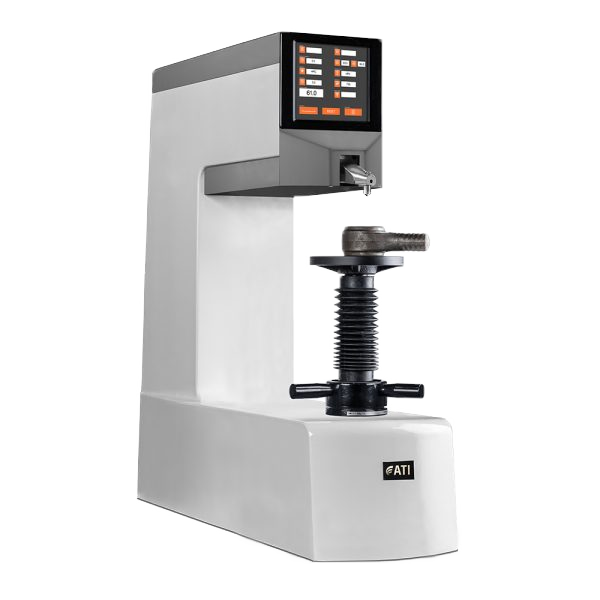

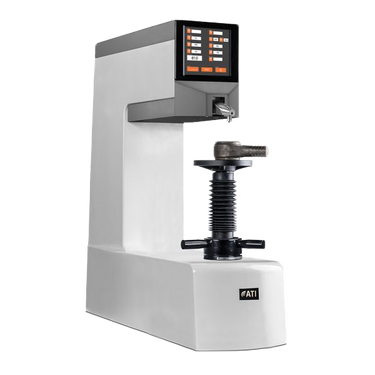

The ATI IN is an Automatic Rockwell hardness tester with easy to see indenter – making measurement of parts with complex geometry easier. The indenter has been specifically designed to reach deep cavities. This allows you to measure hardness on parts that cannot be measured with a traditional hardness tester design. ATI IN is the perfect solution for hardness tests on components such as rings and tubes (with a minimum internal test diameter of 1” ( 25 mm) or near flanges or shoulders. The new design of the indenter allows a direct view of the test point.
A single START button is used to start the test cycle: when the indenter comes into contact with the surface, the hardness test will begin in automatic succession without interruptions. Preload and load are managed electronically in “Closed-Loop” combined with an electronic load cell system. Each step of the test cycle appears automatically on the touch screen display built into the body of the hardness tester. The measurement software is intelligent and easy to use: select the hardness scale, the force value is automatically changed according to the preset test parameters.

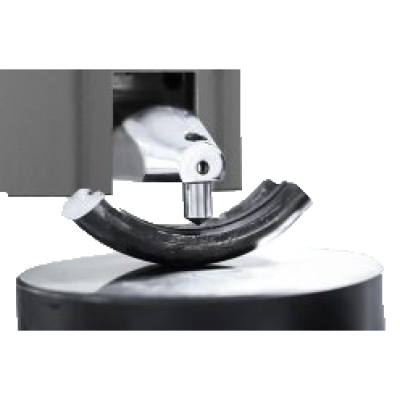

ATI IN performs Rockwell and Brinell hardness tests on hollow samples and their internal parts thanks to the complete visibility of the indenter. It is possible to perform hardness measurements on shoulders, teeth and profiles.

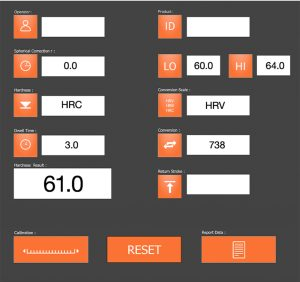

The entire test cycle appears in real time on the screen, which offers a direct view of the indentation. The software is easy to use thanks to the intuitive menu and buttons. It is possible to customize the templates. With a variety of indentation display screens, you can keep under control every detail of the hardness test and monitor the entire test cycle. Hardness test results are directly converted to multiple scales HR, HB, HV. Large internal memory for data saving, statistical creation and saving in EXCEL format. Any data collected can be edited, processed and exported via USB.
Compliance Standards: | ISO 6508, ASTM E18, BSEN 6508, GB/T230 |
Rockwell Initial Test Force: | 3 – 10 kg (29.4 N – 98.07 N) |
60 – 100 – 150 kgf (588 – 80 – 1471 N) | |
Superficial Rockwell Total Test Force: | 15 – 30 -5 kgf (147.1 – 249.2 – 41.3 N) |
Rockwell Hardness Scale: | HRA ,HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV |
Superficial Rockwell Hardness Scale: | 15N, 15T, 15W, 15X, 15Y, 30N, 30T, 30W, 30X, 30Y, 45N, 45T, 45W, 45W, 45X, 45Y |
Rockwell Measurement Range: | HRA: 20 – 88, HRB: 20 – 100, HRC: 20 – 70, HRD: 40 – 77, HRE: 70 – 100, HRF: 60 – 100, HRG: 30 – 94, HRH: 80 – 100, HRK: 40 – 100, HRL: 100 – 120, HRM: 85 – 115, HRR: 114 – 125 |
Superficial Rockwell Measurement Range: | HR15N: 70 – 94 , HR30N: 42 – 86 , HR45N: 20 – 77 , HR15T: 67 – 93 , HR30T: 29 – 82 , HR45T: 1 – 72 |
Force Control System: | Electronic control of load cells in “Closed-Loop” |
Dwell Time: | 1-99 seconds |
Hardness Resolution: | 0.1 HR |
Force Error: | <1.0% |
Height and Depth Capacity: | 12" x 10" (300 x 250 mm) |
Minimum Inner Diameter: | 1" (25mm) |
Power Supply: | 200V / 200VA , 50~60 Hz |
Total Dimensions: | 28" x 10" x 33" (720 x 260 x 840 mm) |
