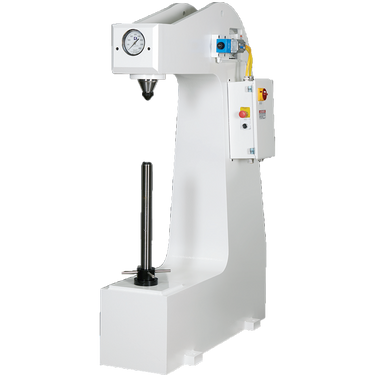

Sun-Tec Detroit PH Series Brinell Hardness Testers

Sun-Tec Detroit PH Series Brinell Hardness Testers

Overview

PH Series Brinell Hardness Testers are an economical solution for accurately conducting high volume Brinell hardness tests. Vertical height adjustments are made through the use of a simple screw assembly. Built with a rugged welded frame, these testers are made to last.

Features

  • Adjustable vertical height with screw assembly
  • Easy-read analog load indicator gauge
  • Hydraulic power supplied and controlled in a single assembly
  • One piece, heavy-duty welded frame
  • Calibrated to customer's  load requirements (500 Kg up to 3000 Kgf)
  • Conforms to tolerances per ASTM & ISO 17025 Standards

Technical Specifications

PH Series Specifications

Model PH-1 PH-2 PH-3
Loads: *500, 750, 1000, 1500, 2000, 2500, 3000 kgf *500, 750, 1000, 1500, 2000, 2500, 3000 kgf *500, 750, 1000, 1500, 2000, 2500, 3000 kgf
Piston Travel: 7/16" (11mm) 7/16" (11mm) 7/16" (11mm)
Maximum Specimen Depth: 6" (152mm) 12" (305mm) 24" (610mm)
Maximum Specimen Height: 12" (305mm) 18" (457mm) 32" (813mm)
Accuracy: Conforms to tolerances per ASTM E-10, ISO 6506-2 Conforms to tolerances per ASTM E-10, ISO 6506-2 Conforms to tolerances per ASTM E-10, ISO 6506-2
Dimensions: 17" x 30" x 45"
(431.8 x 762 x 1143mm)
17" x 36" x 51"
(431.8 x 914.4 x 1295.4mm)
18" x 51" x 70"
(457.2 x 1295.4 x 1778mm)
Flat Anvil: 2.25" (57.15mm) 2.25" (57.15mm) 2.25" (57.15mm)
Weight: 1000 lbs. (454 kg) 1600 lbs. (726 kg) 2200 lbs. (998 kg)
Power Supply: Single phase 120 VAC Single phase 120 VAC Single phase 120 VAC

Standard Kit Includes

  • One (1) Brinell hardness Standard
  • One (1) 10 mm Carbide Ball Indenter
  • One (1) 21/4" Flat Anvil
  • Conversion Chart & Manual
  • Optional - Dwell Time Unit and Floor Stand

Product Literature

Description Part # Saved Price Select Option Add to
Hydraulic 6" x 12" with 7/16" Stroke HT-DB-PH-1 Request Pricing
Hydraulic 9" x 18" with 7/16" Stroke HT-DB-PH-2 Request Pricing
Hydraulic 12" x 34" in with 7/16" Stroke HT-DB-PH-3 Request Pricing
