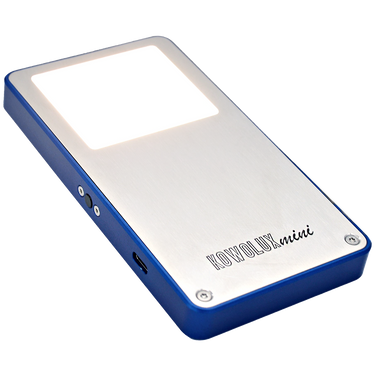

| KOWOLUXmini Pocket NDT Film Viewer | RT-KT-13-40790 |
|
Request Pricing | ||
The KOWOLUXmini viewer is especially designed for inspectors to have an film viewer at hand at all times. This pocket unit has the size of a smartphone and is intended to be used for a quick film evaluation, only. It boasts a 4 hour operation time at 25% duty cycle; 1 hour continuous operation time.
| KOWOLUXmini Technical Specifications | |
| Viewing area: | 2.2" x 1.9" (55 x 47 mm) |
| Luminance: | min. 40.000 cd/m² (+5.000 cd/m²) |
| Optical density: | for films up to D 3.60 |
| Operating time (after full charge): |
~1 h at 100% duty cycle ~4 h at 25% duty cycle |
| Charging: |
USB-C socket at the left side standard mobile phone charger (not included) |
| Operation: | ON/ OFF switch at the left side |
| Charge status: | indicator at the back side |
| Housing Material | aluminum, anodized, blue |
| Front cover Material: | stainless steel |
| Diffusor screen: | PMMA - Lucite |
| Dimensions: | 5.5 x 3.0 x 0.55" (139 x 75 x 14 mm) |
| Weight: | 8.8 oz (0.25 kg) |
| Test certificate: | according to ISO 5580 und ASTM E1390 |
*** USB-C Charger NOT included***
