Kowolux LX Series Large Format Film Viewers

Kowolux LX Series Large Format Film Viewers

Large Format, Built-In Shutters, Masks with spot – 80,000 Cd/cm2 - Up to 320,000 Cd/cm2, Reads 3.9 - 4.5 Density Film, 14"x17, 15.9" x 17", 23" or 35" Viewing Screen

Versatile, Large Format Viewer

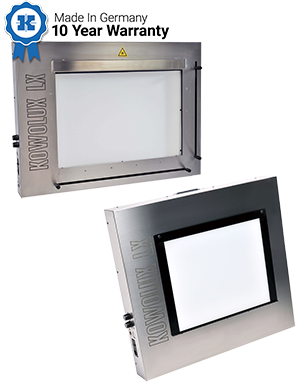

The Kowolux LX Series are high-end film viewers designed for evaluation of large format X-ray films with low density. Four models are available: the LX14x17 with a 14"x17" viewing screen, the LX40 with a 15.9"x17" viewing screen, the LX60 with a 15.9"x23" viewing screen, and the LX90 with a 15.9"x35" viewing screen, and, each with built-in shutters and a luminance of 80,000 up to 320,000 Cd/m2. Powerful LEDs and a variety of accessories makes this indestructible, German made film viewer easy to use with a range of films.

Key Features:

  • Spot in the top left corner for high density films - LX14x17 version only
  • Attachable mask system - LX14x17 version only
  • Horizontal and Vertical Built-In Shutters - LX40, LX60 & LX90 versions
  • Design for Large Format, Low Density Films - LX40, LX60 & LX90 versions



Features

  • 14" x 17", 15.9" x 17", 23" or 35" Large Format Viewing Screen
  • 160,000 to 320,000 for high density film - LX14x17 version only
  • 80,000 to 100,000 Cd/m2 for low density film - LX40, LX60 & LX-90 versions
  • Spot light in the left corner for evaluating higher density film and attachable mask system - LX14x17 version only
  • Flat housing made of corrosion resistant, strong and high quality stainless steel for wall mounting or table top viewing with optional stand
  • Terminal strip for attaching X-ray film

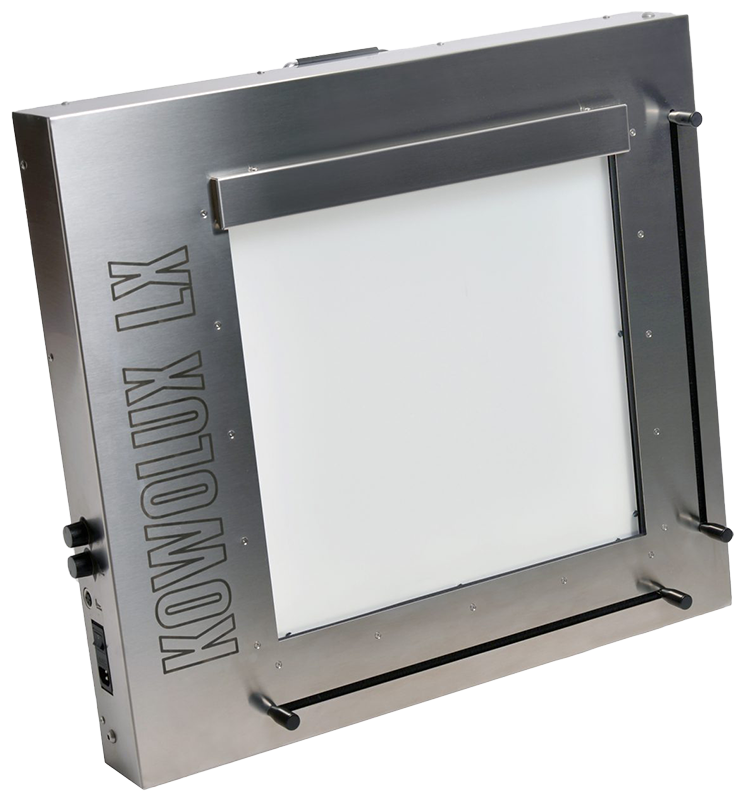

  • Fully adjustable vertical and horizontal shutters for adapting illuminated area to any film size
  • Viewing screen is made of crystal glass with 95% translucency and an anti-reflective coating, which is thermally cured
  • Plug-in foot switch – plug screw-secured – operable without foot switch (with optional operation plug)
  • Two controls for brightness - 1%-100%
  • Efficient LEDs - Heat generation and power consumption is reduced by 80% compared to Halogen lamps and is more cost effective with a 40,000 hour lifespan
  • Higher contrast helps inspection personnel to find defects and discontinuities easily without vision fatigue and high luminance makes it possible to view very dark films without destroying them
  • Cooling fan with temperature dependent speed control - low noise level
  • Mounting threads for wall mounting or table top display

Kowolux X Model Comparison Chart

Model Viewing Screen Luminance Film Density Main Use Special Features
X3 3.2" x 17.8"

320,000 Cd/m2

Eco: 200,000 Cd/m2

 4.5 D
Eco: 4.3 D		 Weld Seam Images Durable, Perfect for Long Films, Many Attachments
X4 3.2" x 8.9"

320,000 Cd/m2

Eco: 200,000 Cd/m2

 4.5 D
Eco: 4.3 D		 Weld Seam Images  Durable, Many Attachments
X5 4.3" x 6" 630,000 Cd/m2 4.8 D Turbine Blade Images, High Densities  Durable, Many Attachments
X6 10.6" x 15”

200,000 Cd/m2

Eco: 130,000 Cd/m2

 4.3 D
Eco: 4.1 D		 Large Format Images Durable, Many Attachments
X7 Ø 4 - 75mm (0.16" - 3") - Iris 1,100,000 Cd/m2 5.0 D Universal, Highest Densities Built in Iris, Ultra-High Intensity, Durable
X 14x17" 14" x 17" 160,000 Cd/m2 4.2 D Large Format Images True 14" x 17" Viewing Window, Durable
LX40 15.9" x 17" 80,000 Cd/m2 3.9 D Large Format Images Built in Horizontal and Vertical Shutters, Durable
LX40Plus 15.9" x 17" 100,000 Cd/m2 4.0D Large Format Images Built in Horizontal and Vertical Shutters, Durable
LX60 15.9" x 23" 80,000 Cd/m2 3.9 D Large Format Images Built in Horizontal and Vertical Shutters, Durable
LX90 15.9" x 35" 70,000 Cd/m2 3.85 D Large Format Images Built in Horizontal and Vertical Shutters, Durable
LX14x17 14" x 17"
Spot: 2" x 2"		 70,000 Cd/m2
Spot: 160,000 Cd/m2		 3.8 D
4.2 D		 Large Format Images Spot light in the top left corner, attachable masks
LX14x17Plus 14" x 17"
Spot: 2" x 2"		 160,000 Cd/m2
Spot: 320,000 Cd/m2		 4.2 D
4.5 D		 Large Format Images Spot light in the top left corner, attachable masks
M1 3.2" x 9" 150,000 Cd/m² 4.15 D Weld Seam Images Dust Proof & Moisture Resistant, Durable
M2 3.2" x 18" 150,000 Cd/m² 4.15 D Weld Seam Images Dust Proof & Moisture Resistant, Durable

Technical Specifications

Kowolux LX40, LX60, LX90 & LX14x17 Technical Specifications

Specification LX40 LX40Plus LX60 LX90 LX14x17 LX14x17Plus
Luminance Max 80,000 Cd/m2 100,000 Cd/m2 80,000 Cd/m2 70,000 Cd/m2 70,000 Cd/m2
Spot: 160,000 Cd/m2		 160,000 Cd/m2
Spot: 320,000 Cd/m2
Film Density Max 3.9 D 4.0 D 3.9 D 3.85 D 3.8 D
Spot: 4.2 D		 4.2 D
Spot: 4.5 D
Power Supply 88-264 V / 47 - 63 Hz
Viewing Screen 15.9" x 17" 15.9" x 17" 15.9" x 23" 15.9 x 35" 14" x 17' 14" x 17"
Rated Power 140 W 160 W 200 W 450 W 200W 230 W
Dimensions (WxDxH) 27.6" x 3.9" x 25.2"
(700 x 100 x 640 mm)		 27.6 x 5.1" x 25.2
(700 x 130 x 640 mm)		 34.3" x 3.9" x 25.2"
(870 x 100 x 640 mm)		 46.1" x 3.9" x 25.2
1170 x 100 x 640 mm)		 27.6" x 3.9" x 25.2
700 x 100 x 640 mm)		 27.6" 5.1" x 25.2"
(700 x 130 x 640 mm)
Weight 41.9 lbs.
(19 kg)		 52.9 lbs.
(24 kg)		 52.9 lbs.
(24 kg)		 66.1 lbs.
(30 kg)		 24.2 lbs.
(11 kg)		 33.1 lbs.
(15 kg)
Color Temperature 5,000 K - White
Lamp Life 40,000 hours

Scope of Supply

  • Kowolux LX Film Viewer
  • Power Supply Cable
  • Foot Switch
  • Wall Mounting Kit
  • Support Feet
  • Test Certificate according to ASTM E 1390, ISO 5580 & DIN EN 25580
  • Certificate of Conformance according to ISO/IEC 17050-1

Stand & Mask Accessories

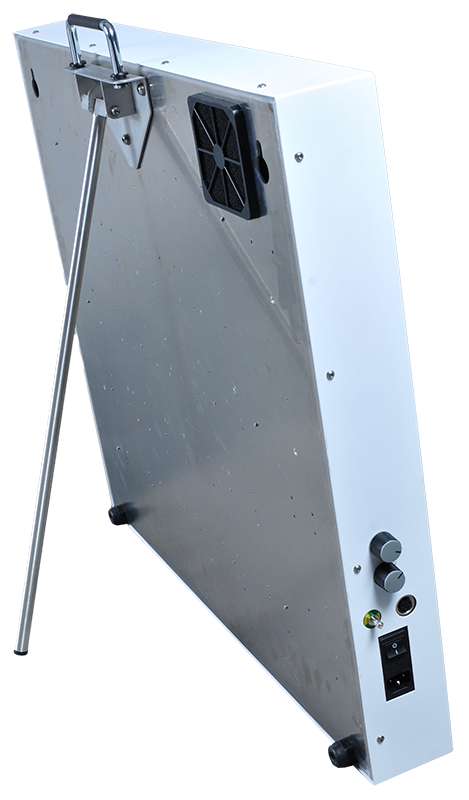

  • Optional support stand accessory with carrying handle for table top viewing. Article number 13-40199
  • Selection of masks for the LX14x17 film
    • 14"x17" (13-40681)
    • 7"x17" (13-40682)
    • 8"x10" (13-40683)
    • 5"x7" (13-40684)
    • 12"x15" (13-40685)
    • 10"x12" (13-40686)
    • 7"x10" (13-40687)
    • 4"x15" (13-40688)
    • 14"x17" w/ Iris Ø 4 … 75 mm at spot (13-40689)

Product Literature

Description Part # Saved Price Select Option Add to

Film Viewers
Kowotest Kowolux LX40 LED Film Viewer, 40x43 cm film size, 3.6 film density, Including: Power Supply Cable, Foot Switch, Wall Mounting Kit, Support Feet, Test Certificate & Certificate of Conformance (13 40195) RT-KT-13-40195
$5,365.00
Kowotest LX 40plus LED Film Viewer, large format, 40x43 cm, D 4.0 RT-KT-13-40700
$8,335.00
Kowotest Kowolux LX60 LED Film Viewer, 40x60 cm film size, 3.9 film density, Including: Power Supply Cable, Foot Switch, Wall Mounting Kit, Support Feet, Test Certificate & Certificate of Conformance (13 40197) RT-KT-13-40197
$6,550.00
Kowotest LX 90 LED Film Viewer, large format, 40x90 cm, D3.8 RT-KT-13-40690
$12,205.00
KOWOLUX LX 14X17plus - Large Format LED Film Viewer, 14x17” with 50 mm x 50mm spot (Main: 160,000 Cd/m2 – 4.2D / Spot: 320,000 Cd/m2 – 4.5D) RT-KT-13-40675
$8,160.00
KOWOLUX LX 14X17eco - Large Format LED Film Viewer, 14x17" with 50 mm x 50mm spot (Main: 70,000 Cd/m2 - 3.8D / Spot: 160,000 Cd/m2 – 4.2D) RT-KT-13-40680
$4,906.00
Kowotest Foot switch with plug, separate - for Kowolux Large LED Film Viewer RT-KT-LX-40086
$125.00
Kowotest Feet and handle set for table top use - for Kowolux Large LED Film Viewer RT-KT-LX-40199
$345.00

Masks
LX14x17 Attachment Mask - Iris Ø 4 ... 75 mm RT-KT-13-40689
$589.00
LX14x17 Attachment Mask for films 10x12" RT-KT-13-40682
$126.00
LX14x17 Attachment Mask for films 10x24 cm RT-KT-13-40688
$126.00
LX14x17 Attachment Mask for films 14x17" RT-KT-13-40681
$126.00
LX14x17 Attachment Mask for films 18x24 cm RT-KT-13-40687
$126.00
LX14x17 Attachment Mask for films 24x30 cm RT-KT-13-40686
$126.00
LX14x17 Attachment Mask for films 30x40 cm RT-KT-13-40685
$126.00
LX14x17 Attachment Mask for films 8x10" RT-KT-13-40683
$126.00
