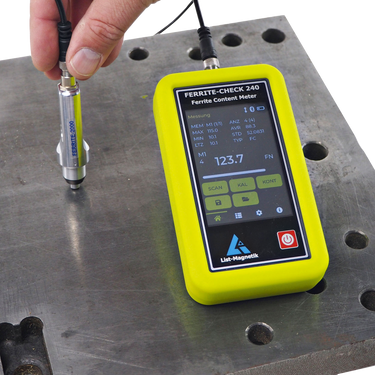

The List-Magnetik Ferrite-Check 240 ferrite content meter is a user-friendly device featuring a color display and an external probe designed for measuring ferrite content in austenitic and duplex steels in accordance with DIN EN ISO 8249, utilizing the magnetic induction method.
To further process your measurement data, you can pair your measuring device with mobile Android and iOS device, or to Windows PC or Laptop. All connections made via Bluetooth.
Once connected, you can manage projects and even assign measuring points on a photo for documentation of inspection.
The Ferrite-Check 240 is optimized for measurement of ferrite content in austenitic and duplex steels. Common applications include:
| Technical Specifications List-Magnetik Ferrite Check 240 | |
| Applications: | Measurement of ferrite content in austenitic and duplex steels |
| Measurement Units: | Fe% and FN |
| Measuring Range: | 0.2 - 100 Fe% 0.2 - 140 FN |
| Measurement Method: | Single measurement or scanning |
| Smallest measuring area: | ø 0.08" (2 mm) |
| Accuracy: | 5 % |
| Resolution: | under 10: 0.01, over 10: 0.1 |
| Ambient Temperature Range: | 32 - 122° F (0 - 50° C) |
| Display: | LCD color touch panel 320 x 480 pixels |
| Multilingual Menu: | English, German, Italian, French, Spanish |
| Data Logger: | 10,000 measurements, flexibly divisible |
| Statistics: | count / maximum / minimum / average / standard deviation |
| Interface: | Bluetooth Low Energy interface for communication with Android, iOS and Windows |
| App for Android, iOS, Windows: | free via Google Play Store, Apple App Store, List-Magnetik homepage |
| External Control: | USB-C and SCPI communication interface |
| Power Supply: | 3x 1.5V AA Mignon. External power supply can be connected via USB-C |
| Operating Time: | approx. 25 hours with battery, unlimited with external power supply |
| Dimensions: | 5.9 x 3.3 x 1.4" (150 x 85 x 35 mm) |
| Weight: | 11.3oz (320 g) with batteries |
