ETher ETi-200 Advanced Multi-Frequency & Multi-Channel Eddy Current Flaw Detector

The ETi-200 is designed to offer advanced multi-frequency and multi-channel flaw detection, housed in a cast aluminum chassis overlaid with rubber over-molding, meeting IP54 standards, built to withstand the harshest of conditions.

The ETi-200 offers a choice of single or dual probe operation. In dual-probe mode, it will multiplex four Channels per Probe, whereas in single probe mode, up to 8 channels are available. Within the Channel set-up, the Operator can program not only the Frequency but many other functions, making the ETi-200 the most flexible portable unit available.

Features:

  • Rugged instrument with cast aluminum frame, rubber over-molding and ergonomic design
  • Great battery life (5.5 hours) with "quick swap" batteries
  • Removable Eddy Current Cartridge allows easy future upgrades and enhancements
  • Excellent analogue performance
  • Advanced software including signal mixing functions, measurement cursors, configurable alarms and auto-load.


Powerful, Yet Small:
Weighing 6.2 lbs (2.8 kg.) with a compact footprint, the ETi-200 offers the user more advanced features than an equivalent unit and also providing an adjustable hand strap and harness attachment points. It meets the IP54 standard, therefore making it splash and dust proof.

Large High Definition Display:
The ETi-200 has an impressive 7" diagonal 800 x 480 pixel color TFT display. Colors on display are user-programmable and menus incorporate feature friendly icons. The display can be presented with 1, 2 or 4 panes. Each pane can in turn have any channel displayed on it in different colors.

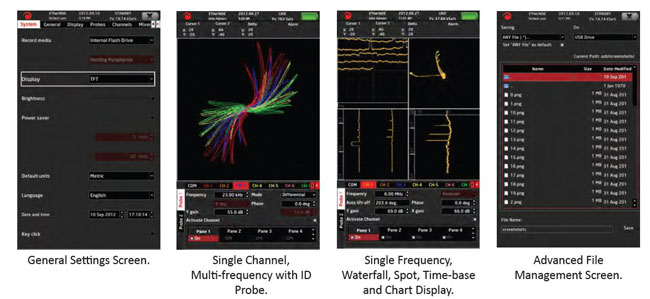

Eti-200-high-definition-display

State of Art Communications & Data Storage:
The ETi-200 allows USB peripherals (memory stick, mouse, keyboard) to be connected; i.e. USB "on the go".

The ETi-200 features an Ethernet port for software upgrades and future functions and full size 32GB SD Card slot. At a 25k sample rate, the ETi-200 can store as much as 48 hours of continuous live recordings.

eti-200-communications eti-200-storage


User Friendly Interface:
The ETi-200 offers a choice of navigation through a rapid "Smart Wheel" control wheel or a four-way cursor function. Across all menus active functions are highlighted. Embedded HELP text is incorporated throught the menus. It also incorporates many direct keys for the most common operations and functions.

eti-200-interface

Specifications:

Probe: Modes: Lemo 00 for absolute probes and a 12-way Lemo connection for Reflection, Bridge and Rotary and Second Lemo 12- way for Reflection and Bridge Probes. Absolute and Bridge modes selectable at 50 or 100 ohm.
Test: Up to 8 channels with 12 user definable mixers
Frequency: 10Hz - 15MHz in 0.01 increments per Hz, kHz, or MHz range
Drive: 0.10 - 20.00V pk-pk in 0.01V increments
Signal: Phase: 0° - 359.9° in 0.1° increments
Gain: Gain: -12.0 - 100 dB in 0.1 increments
X/Y Axis Spread: Any valid gain value on either channel. With lockable relative values.
Digitizing Rate: 36kHz max above 300kHz drive frequency
Filter: Band Pass, High Pass and Low Pass
Load: Automatic load selection for absolute probes with manual override. 8 values 1.3 µH to 470 µH.
Display: Screen: 7" 480 x 800 Pixel Color TFT
Mode: Impedance (phase) plane display with strip chart or time base 1, 2 or 4 panes
Grid: Options of: None, 20% (5x5), 10% (10x10) and Polar
Spot Position: +/- 50% in 1% increments
Persistance: Permanent and 0.01 - 100.00 seconds in 0.1 second increments
External: Standard 15 way d-type for external monitor, head up display or projector
Alarm: Type: 1 per channel selectable; Box or Sector
Setting: In increments of 1%
Quantity: 8
Action: Audio and / or signal freeze
Data Storage: Settings: Diverse options to internal ram drive, removable SD care (up to 32GB) or USB memory stick (up to 32GB)
Recording: Digitized data may be saved to internal memory (up to 32GB), external USB device or SD card (up to 32GB). 1 GB of Internal Flash Memory. At a 25kHz processing rate, 1 minute of single channel data uses 11MB.
Data Output: Interface: USB (on the go), Ethernet, SD card, VGA
User Interface: Front Panel: Rotary Control, cursor, control, 18 push button keys. 4 Status LEDs
Software: Tabs, Soft Keys, Scrollable values, Direct data entry, will operate with USB Keyboard.
Enclosure: Dimensions: 7.9" x 9.0" x 3.0" (20 x 22.5 x 7.5cm)
Weight: 6.2 lbs. (2.8 kg.)
Environmental: IP54
Temperature: Maximum Operating: 32° - 95°F (0° to 35°C)
Power: Internal Battery: Replaceable Li-Ion 14.4V 5.5 hour max life
External AC: Power / Charger 100-240V, 1.2AC, 50-60Hz, 90 Watt

Product Literature

Description Part # Saved Price Add to
ETi200 Kit Includes: Two Channel, Eddy Current Flaw Detector, Multiple Frequency (10HZ-15MHz), Gain 0-100dB, AC Power Adapter / Charger, Lemo 00 to Microdot and Lemo00 to BNC Cables, Lemo 12-W ay - 4-Way, Carrying Strap, Hard Carrying Case, Manual on EC-ET-KIETI002 Request Pricing
