Overview

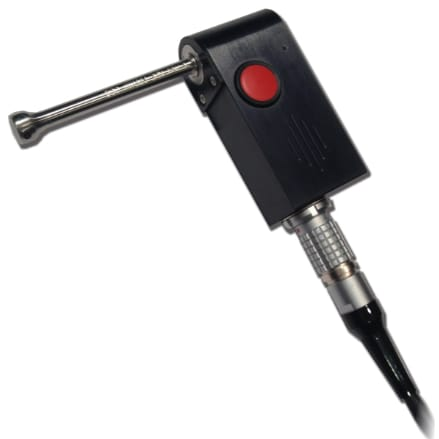

Rotating Probes (Reflection) are available in two options, Rigid Stainless Steel and Delrin Flexible. Rigid stainless steel probes offer high wear resistance, where as the flexible probes are used where hole tolerances are poor and access is not directly in-line with the hole.

Note: When ordering Rotating Probes 0.1mm is automatically taken off the probe diameter during manufacture, this should be good for typical hole conditions and manufacturing tolerances. Where tolerances are poor allow for greater clearance. Example: To inspect a ø12.7mm (1/2”) hole a ø12.7mm probe should be ordered which will be manufactured to a ø12.6mm.



Features & Specifications

  • Probe diameters from 1.6 to 50mm, available in 0.01mm steps.
  • Fischer connector to ETher Small and Large drives also compatible with Hocking, GE, Rohmann and Foerster drive units.
  • Frequency range from 200kHz to 2MHz.
  • Comes in rigid stainless steel and Delrin flexible options.
  • Counter-sink and counter-bore options also available.

Purchasing Options

Rigid Stainless Steel Probes

Delrin Flexible Probes

Click on the link for a full list of probes available in each style

Rotating Probes List

Equipment Kits

Probe Kits

KAROT002 Rotary Drive Inspection Kit - x6 Probes + Multi-Hole Test Block 3/16" to 1/2" Includes:

  • PRR0476-035 Probe. Rotating, Rigid, Dia = 4.76mm (3/16"), wl = 35mm
  • PRR0635-035 Probe. Rotating, Rigid, Dia = 6.35mm (1/4"), wl = 35mm
  • PRR0794-035 Probe. Rotating, Rigid, Dia = 7.94mm (5/16"), wl = 35mm
  • PRR0953-035 Probe. Rotating, Rigid, Dia = 9.53mm (3/8"),, wl = 35mm
  • PRR1111-035 Probe. Rotating, Rigid, Dia = 11.11mm (7/16"), wl = 35mm
  • PRR1270-035 Probe. Rotating, Rigid, Dia = 12.70mm (1/2"), wl = 35mm
  • ATB005 Accessory, Test Block, Rotating probe, Total , 12 holes; Holes 3/16", 1/4", 5/16", 3/8", 7/16", 1/2" , 6 sound holes and 6 holes with Flaws
  • AC002 Accessory, Deluxe Probe Case PHDC1


KAROT003 Rotary Drive Inspection Kit - x14 Probes + Multi-Hole Test Block 3/16" to 1" Includes:

  • PRR0476-035 Probe. Rotating, Rigid, Dia = 4.76mm (3/16"), wl = 35mm
  • PRR0635-035 Probe. Rotating, Rigid, Dia = 6.35mm (1/4"), wl = 35mm
  • PRR0794-035 Probe. Rotating, Rigid, Dia = 7.94mm (5/16"), wl = 35mm
  • PRR0953-035 Probe. Rotating, Rigid, Dia = 9.53mm (3/8"), wl = 35mm
  • PRR1111-035 Probe. Rotating, Rigid, Dia = 11.11mm (7/16"), wl = 35mm
  • PRR1270-035 Probe. Rotating, Rigid, Dia = 12.70mm (1/2"), wl = 35mm
  • PRR1430-065 Probe. Rotating, Rigid, Dia = 14.30mm (9/16"), wl = 65mm
  • PRR1590-065 Probe. Rotating, Rigid, Dia = 15.90mm (5/8"), wl = 65mm
  • PRR1750-065 Probe. Rotating, Rigid, Dia = 17.50mm (11/16"), wl = 65mm
  • PRR1910-065 Probe. Rotating, Rigid, Dia = 19.10mm (3/4"), wl = 65mm
  • PRR2060-065 Probe. Rotating, Rigid, Dia = 20.60mm (13/16"), wl = 65mm
  • PRR2220-065 Probe. Rotating, Rigid, Dia = 22.20mm (7/8"), wl = 65mm
  • PRR2380-065 Probe. Rotating, Rigid, Dia = 23.8mm (15/16"), wl = 65mm
  • PRR2540-065 Probe. Rotating, Rigid, Dia = 20.20mm (1.0"), wl = 65mm
  • ATB019 Accessory, Test Block, Rotating probe, Aluminium, Total , 28 holes; Holes 3/16" to 1" , 14 sound holes and 14 holes with Flaws
  • AC002 Accessory, Deluxe Probe Case PHDC1


KAROT004 Rotary Drive Inspection, Flexible Rotating Probes + Aluminum Block Kit Includes:

  • PRF040-050051 Probe. Rotating, Flexible, Dia = 4.0 - 5.0mm, wl = 51.00mm
    PRF050-060051 Probe. Rotating, Flexible, Dia = 5.0 - 6.0mm, wl = 51.00mm
    PRF060-070051 Probe. Rotating, Flexible, Dia = 6.0 - 7.0mm, wl = 51.00mm
    PRF070-080051 Probe, Rotating, Flexible, Dia 7.00 to 8.00mm, wl =51.00mm
    PRF080-090051 Probe. Rotating, Flexible, Dia = 8.0 - 9.0mm, wl = 51.00mm
    PRF090-100051 Probe. Rotating, Flexible, Dia = 9.0 - 10.0mm, wl = 51.00mm
    PRF100-110051 Probe, Rotating, Flexible, Dia 10.0 to 11.0mm, wl = 51.00mm
    PRF110-120051 Probe. Rotating, Flexible, Dia = 11 - 12mm, wl = 51.00mm
    PRF120-130051 Probe, Rotating, Flexible, Dia 12.00 to 13.00mm, wl = 51.00mm
    PRF130-150051 Probe. Rotating, Flexible, Dia = 13.0 - 15.0mm, wl = 51.00mm
    PRF150-170051 Probe. Rotating, Flexible, Dia = 15.0 - 17.0mm, wl = 51.00mm
    PRF170-190051 Probe. Rotating, Flexible, Dia = 17.0 - 19.0mm, wl = 51.00mm
    ATB019 Accessory, Test Block, Rotating probe, Aluminium, Total, 28 holes; Holes 3/16" to 1", 14 sound holes and 14 holes with Flaws
    AC002 Accessory, Deluxe Probe Case PHDC1
