EchoTherm High Temp Couplant

EchoTherm High Temp Couplant

Echo Ultrasonics EchoTherm is an economical ultra-high temperature couplant

EchoTherm High Temperature Couplant 50°F to 1250°F (10°C to 675°C)

A high temperature thickness gauging and corrosion testing couplant that has an operating range of 700° - 1000°F (371° - 538°C) and an auto ignition temperature of above 1300°F (704°C)

Product Description Product Specifications


EchoTherm removes the industrial accident liability, personnel risk and "startle" factor of surprise auto-ignition events when performing high temperature thickness gauging or corrosion profiling at temperatures from 700° to 1000°F (371° to 538°C)

EchoTherm contains a polymer which melts and begins to smoke at 750°F (400°C) which extends the operating range. However, it is not necessary to reach this temperature to obtain instant readings.

Due to the small amount of EchoTherm used for ultrasonic thickness gauging, the slow rate of thermal decomposition and local ventilation, the vaporized and thermal decomposed product in the smoke should not be hazardous to your health.

EchoTherm does not contain Teflon and is not expected to cause "polymer plume fever".

EchoTherm is the most economical ultra-high temperature couplant.



Operating Range: 700° to 1000° (371° to 538°C)

Auto Ignition Temperature*: Greater than 1300°F (704°C)

Flash Point: 1050°F (570°C)

Viscosity: Thick Paste

* Test by John A Kennedy & Associates..., ASTM E659-14


Packaging:

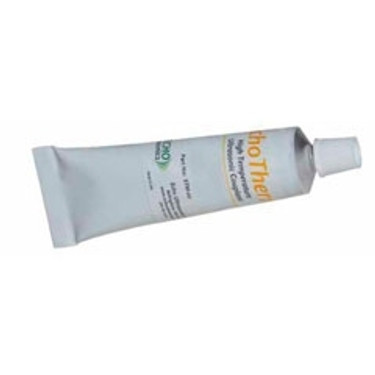

ETM-02: 2 fluid oz. / 4 oz. avdp (weight), metal tubes

echotherm

Product Literature

Description Part # Saved Price Select Option Add to
Echo Ultrasonics EchoTherm - 2 fluid oz. / 59 ml (volume) metal tube UT-EU-ETM-02
$146.00
