Fischer DMP10-40 Series Coating Thickness Gauges

Fischer DMP10-40 Series Coating Thickness Gauges

ISOSCOPE, DELTASCOPE and DUALSCOPE Models

Overview

The new DMP series sets the standard for tactile and non-destructive coating thickness measurement of magnetized and non-magnetized base materials. The robust and modern design, optimized functionalities, digital probes, and intuitive Tactile Suite software make these compact handheld devices your perfect companions for any measuring requirement. Available in three models for your needs: ISOSCOPE, DELTASCOPE or DUALSCOPE.

Used primarily in quality assurance, these compact devices are impressive with their robust and ergonomic design and extensive functions. Depending on the application, you will find the right device in the DMP family. The DMP10 and 20 models offer an optimal entry level with extensive functionalities, while the DMP30 and 40 models also meet higher demands. In addition to the various measuring instruments, a wide range of high-precision digital and analog probes are available.







Features

  • Universal instrument series for tactile coating thickness measurement thanks to an incredibly wide probe portfolio
  • Measured value memory: 250,000 measured values in 2,500 batches (DMP30/40) or 10,000 measured values in 1 batch (DMP10/20)
  • Robust aluminum housing with IP64 protection, Gorilla Glass and soft bumpers
  • Exchangeable Li-Ion battery for > 24 h operating time
  • Easy data transfer via USB-C and Bluetooth
  • Live feedback via light, sound and vibration for limit monitoring
  • Cal Check function to verify your currently used calibration
  • Digital and analog probes available for a wide range of applications, with the F-adapter you still have access to the entire Fischer probe portfolio
  • Available with the new powerful Tactile Suite software - Automatic device recognition, easy data export and comprehensive reporting

Tactical Suite

Experience now how easy managing measurement data can be. Tailored to your needs, Tactical Suite is the most intuitive software in tactile coating thickness measurement. Transferring, evaluating and exporting your data has never been so convenient.

  • Most powerful software - Get Tactical Suite, your efficient software solution with a new design, innovative user guidance and versatile functions for your evaluation and reporting.
  • Instantly recognized and synchronized - With the automatic and reliable device recognition, your probes and devices are recognized directly and your measurement data is transferred and stored easily and immediately.
  • Direct export to Excel - Transfer your measurement data in real time – or after measuring directly to Excel or other file formats – easily and conveniently via USB-C or Bluetooth.
  • Create data reports easily - Easily create customized reports and measurement logs. You can use our templates for this or adapt them according to your needs.

Models

ISOSCOPE

Measurement of electrically non-conductive layers on non-magnetizable, electrically conductive base materials.

Application Examples:
NC/NF: Paint, varnish or plastic on aluminum, copper or brass
NC/NF: Anodized coatings on aluminum

Measurement Method:
Amplitude sensitive eddy current method

DELTASCOPE

Measurement of non-magnetizable layers on magnetizable base materials.

Application Examples:
NC/Fe: Paint, varnish or plastic on steel or iron
NF/Fe: Zinc, chrome or copper on steel or iron

Measurement Method:
Magnetic inductive measuring method

DUALSCOPE

Measurement of electrically non-conductive layers on non-magnetizable, electrically conductive base materials and measurement of non-magnetizable layers on magnetizable base materials.

Application Examples:
NC/NF: Paint, varnish, plastic on aluminum, copper, brass
NC/NF: Anodized coatings on aluminum
NC/Fe: Paint, varnish or plastic on steel or iron
NF/Fe: Zinc, chrome or copper on steel or iron

Measurement Method:
Amplitude-sensitive eddy current method and magnetic inductive measurement method

Digital Probes & F-Adapter

Produced in-house and with proven Fischer quality and ready for any measurement challenge. Use the F-adapter to continue using analog probes.

  • Best measurement results - Rely on outstanding accuracy and maximum repeatability with probes from Fischer, even for demanding measurement tasks.

  • Smart connectivity - Benefit from improved connectivity with future-proof USB-C interfaces and possible data transfer via Bluetooth.

  • Flexible F-adapter - So take advantage of the F-Adapter, an accessory that allows you to use the full performance of analog Fischer probes with your new DMP10-40 Series Coating Thickness Gauge.

  • Highest quality - Continue to experience the highest quality and maximum service life with our wear-resistant, serviceable and extremely robust probes (IP65)

Probe Guide

Magnetic Induction Probes (For Fischer Deltascope & Fischer Dualscope)

  • D-F (1006634)
  • D-F-RO (1006895)
  • D-F-2RO (1007030)
  • D-F-SM (1007010)
  • D-F-T5RO (1007025)
  • D-F90-2T8 (1007032)
Eddy Current Probes (For Fischer Isoscope & Fischer Dualscope)

  • FTA3.3H (#604-142)
  • FAW3.3 (#604-193)
  • FAI3.3-150 (#604-187)
  • FA9 (#604-188)
Dual Probes (For Fischer Isoscope, Fischer Deltascope & Fischer Dualscope)

  • D-FN (1006632)
  • D-FN-SM (1006815)

Learn More About DMP Probes

Technical Specifications

DMP10-40 Specifications & Model Comparison

  Dualscope Deltascope Isoscope
Model DMP 20 DMP 40 DMP 10 DMP 30 DMP 10 DMP 30
Application Measurement of electrically non-conductive layers on non-magnetic base metals AND
Measurement of non-magnetic layers on magnetic base materials.		 Measurement of non-magnetic layers on magnetic base materials. Measurement of electrically non-conductive coatings on non-magnetic base metals.
Base Material Non-ferrous metal (NF) and steel or iron (FE) Steel or iron (FE) Non-ferrous metal (NF)
Application Example • Paint, lacquer or plastic coatings on aluminum, copper or brass (ISO/NF)
• Anodized coatings on aluminum (ISO/NF)
• Zinc, chrome, copper coatings on steel or iron (NF/FE)
• Paint, lacquer, plastic coatings on steel or iron (ISO/FE)		 • Zinc, chrome, copper coatings on steel or iron (NF/FE).
• Paint, lacquer, plastic coatings on steel or iron (ISO/FE)		 • Paint, lacquer or plastic coatings on aluminum, copper or brass (ISO/NF)
• Anodized coatings on aluminum
Measuring Method Amplitude sensitive eddy current method AND
Magnetic inductive measuring method		 Magnetic inductive measuring method Amplitude-sensitive eddy current method
Measured Value Memory ≤ 10,000 ≤ 250,000 ≤ 10,000 ≤ 250,000 ≤ 10,000 ≤ 250,000
Number of Measurement Tasks 1 ≤ 2,500 1 ≤ 2,500 1 ≤ 2,500
Communication USB-C USB-C and Bluetooth USB-C USB-C and Bluetooth USB-C USB-C and Bluetooth
Limit Monitoring Light and sound Light, sound and vibration Light and sound Light, sound and vibration Light and sound Light, sound and vibration
Standards DIN EN ISO 2178, DIN EN ISO 2360, ASTM D7091, ASTM 4471 DIN EN ISO 2178, ASTM D7091, ASTM 4471 DIN EN ISO 2360, ASTM D7091, ASTM 4471

DMP Series Kit Includes

  • DMP Series Instrument
  • Operator's Manual
  • Tactile suite software
  • Lanyard
  • F-Adapter (only with DMP Isoscope)
  • Carrying Case

Bundles

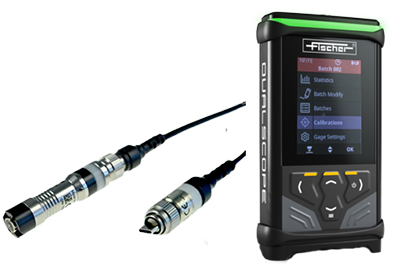

Dualscope DMP20 + D-FN Probe

PN: CT-FT-DMP20-KIT1
• Versatile gauge for coatings on ferrous and non-ferrous metals
• D-FN probe works on virtually all metals—even rough surfaces
• Ideal for inspections, QA/QC, and production lines

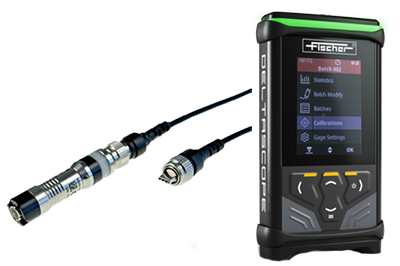

Deltascope DMP10 + D-F-ro Probe

PN: CT-FT-DMP10-KIT1
• Measures non-conductive & non-ferrous coatings on steel or iron
• D-F-ro probe ensures reliable performance in rugged conditions
• Perfect for paint, plating, and galvanization inspections

Product Literature

Description Part # Saved Price Select Option Add to

Kits
Fischer Dualscope DMP20 + D-FN Probe Kit CT-FT-DMP20-KIT1
$1,900.00
Fischer Deltascope DMP10 + D-F-ro Probe Kit CT-FT-DMP10-KIT1
$1,300.00

Gauges and Accessories
Fischer DELTASCOPE DMP10 Coating Thickness Gauges CT-FT-1007328
$1,000.00
Fischer ISOSCOPE DMP10 Coating Thickness Gauge CT-FT-1007329
$1,000.00
Fischer DUALSCOPE DMP20 Coating Thickness Gauge CT-FT-1007330
$1,150.00
Fischer DELTASCOPE DMP30 Coating Thickness Gauge CT-FT-1007331
$1,550.00
Fischer ISOSCOPE DMP30 Coating Thickness Gauge CT-FT-1007332
$1,550.00
Fischer DUALSCOPE DMP40 Coating Thickness Gauge CT-FT-1007333
$2,000.00
Fischer DMP-F Probe Adapter for DMP10-40 CT-FT-1007336
$450.00
Fischer DMP-Li-ion Battery RRC1130 for DMP10-40 CT-FT-1008303
$100.00
Fischer Charger for Li-ion Battery RRC1130 (DMP10-40) CT-FT-1008304
$110.00
Fischer DMP10-40 Holder CT-FT-1008201
$90.00

Digital Probes
Fischer Technology DMP D-FN Dual Probe 2000 μm (80 mils) NF/Fe and Iso/NF with Digital USB Connector CT-FT-1006632
$1,100.00
Fischer Technology DMP D-F Magnetic Probe - Pencil Probe 2000 μm (80 mils) with Digital USB Connector CT-FT-1006634
$880.00
Fischer Technology DMP D-FN-SM Probe 1500 µm (60 mils) NF/Fe, 1200 µm (48 mils) Iso/NE with Digital USB Connector CT-FT-1006815
$1,750.00
Fischer Technology DMP D-F-RO Magnetic Probe - Large Probe Tip 2500 μm (98.4 mils) with Digital USB Connector CT-FT-1006895
$620.00
Fischer Technology DMP D-F-2RS Probe 2000 µm (80 mils) with Digital USB Connector CT-FT-1007030
Request Pricing
Fischer Technology DMP D-F-HSC Probe 800 µm (80 mils) with Digital USB Connector CT-FT-1007010
$1,600.00
Fischer Technology DMP D-F-T5RO Magnetic Probe - Single-Tip High Thickness Range 5 mm (200 mils) with Digital USB Connector CT-FT-1007025
$1,110.00
Fischer Technology DMP D-F90-2T8 Magnetic Probe - Double-Tip Right Angle Probe 8 mm (320 mils) with Digital USB Connector CT-FT-1007032
$1,180.00
