Woodpecker WP-632AM-R Automatic Tap Tester

Woodpecker WP-632AM-R Automatic Tap Tester

NATO Stock Number 6635-99-282-4319

Accurate & Timesaving

Replaces the Woodpecker WP-632AM

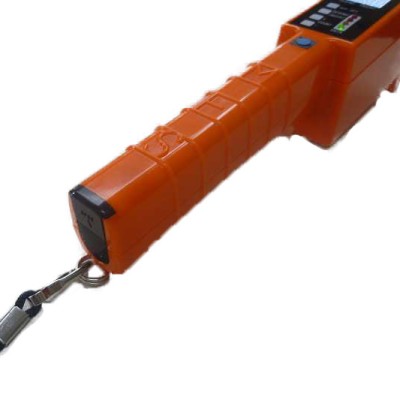

The Woodpecker WP-632AM-R Handpiece, with a range of accessories offers all the advantages of the previous models, but with the option of using a smaller XY Plotter &  a remote probe. It also has integrated BBRAM. The WP-632AM-R portable electric tap tester is compact and lightweight, allowing single handed operation and significantly reducing time required for inspection with high accuracy. It utilizes a CPU which comparatively evaluates the output of a force sensor attached to the actuator. The results are indicated with LEDs & numerical values displayed on the LCD screen, clearly showing the set and measured contact times (in milliseconds) and making it easier to setup on the test standard. When used in conjunction with a PC, a color tile map of the area under test is displayed. A record can be saved / printed creating traceability of a scan.





Features

  • Automated tap tester with a clear quantitative, objective numeric readout
  • Piezo sensor used to capture responses from solenoid driven tapping device
  • Clear: go / no go results
  • Lightweight & easy to operate
  • Operates on wood & foam, rough or smooth surface finishes
  • Software allows point measurement to be compared
  • PC connectivity with optional XY Plotter
  • For skin thicknesses of up to 5mm thick
  • Includes: Remote probe & function test kit

Optional XY Plotter

The XY Plotter is available as an option for the Woodpecker WP-632AM-R Handpiece. It allows the user to measure contact time (in milliseconds) of the structure being tested and displays the position of the unit on a PC (as a color tile map or numerically) if used in real time. This record can be saved and printed creating traceability of a scan.

1" (25mm) Disbond on honeycomb core

Applications

  • Detection of disbond / damage / moisture in honeycomb sandwich materials
  • Detection of disbond in composite materials, tiles, clad steel, coatings, etc.
  • Detection of disbond of joints in composite structures, e.g. helicopter blades
  • Location of beams / ribs / spar in bonded structures
  • Detection of boundries between different materials
  • Detection of dryness / aging / hardening of bonding agents, etc.
  • Comparison & evaluation of surface hardness (elasticity) of various plates
  • Detection of the unfilled area within foamed sandwich panels

Technical Specifications

Comparison Woodpecker WP-632AM vs. Woodpecker WP-632AM-R

  WP-632AM Handpiece
(from 2007 to Nov. 2021)		 WP-632AM-R Handpiece
(from Nov. 2021)
Storage Humidity: 10% to 90% (without compensation) 10% to 90% (without compensation)
Storage Temperature: -40° to 140°F (-40° to 60°C) -40° to 140°F (-40° to 60°C)
Operating Humidity: 10% to 90% (without compensation) 10% to 90% (without compensation)
Operating Temperature: 32° to 104°F (0° to 40°C) 32° to 104°F (0° to 40°C)
Display: Custom L.C.D. with backlight Custom L.C.D. with backlight
Weight: 12.8 oz. (350g) - excluding batteries
15.9 oz. (450g) - including batteries		 12.8 oz. (350g) - excluding batteries
15.9 oz. (450g) - including batteries
Dimensions: 3.9" x 1.8" x 10.9" (100 x 46 x 276mm) 3.9" x 1.8" x 10.9" (100 x 46 x 276mm)
Battery Life & Type: 4 x AA, typically 10 hours continuous use, with low battery check 4 x AA, typically 10 hours continuous use, with low battery check
Other Functions: Backlit display, 'standard' set-point, go/no-go, review function, data-log up to 1000 data sets, option to download via RS-232, auto-off (12 seconds) Backlit display, 'standard' set-point, go/no-go, review function, data-log up to 1000 data sets, option to download via RS-232, auto-off (12 seconds) - TBC
Nato Stock Number (NSN): 6635-99-282-4319 TBC
Color: Grey Orange
XY Plotter Position: Under unit body Forward of unit
Expansion: Yes, optional XY Plotter Yes, optional XY Plotter & remote probe
USB Connectivity: Yes Yes

Woodpecker WP-632AM-R Case Options

The PELI Case Kit has a custom insert designed to hold all the items supplied in the Standard Kit plus the XY Plotter. The Standard Kit holds all the same items as the PELI Case Kit except for the XY Plotter, but the items not shown are put in the pocket with the cable and spare parts, instead of individual cut outs.
Items shown do not represent complete kit items.

Standard Case

PELI1470 Case



WP-632AM-R Kit Includes

  • Woodpecker WP-632AM-R Handpiece
  • Remote Probe
  • Carry Case
  • Test Block
  • Angle Finder
  • Manual
  • Manufacturer Test Certificate
  • 4 AA Batteries
  • Target Marker

  • 1 x pair of Feet

  • Software & Cables

  • Function Test Kit (with replacement Feet, Acrylic & Aluminum Hammer Head)
