LCNDT PRO-400P & PRO-400BP Bluetooth Enabled Lamps

LCNDT PRO-400P & PRO-400BP Bluetooth Enabled Lamps

The easy and low-cost solution to documenting test results.

ASTM E3022-18

Compliant

UV Lamps

Features

  • Cost-Effective Camera Solution
  • Supports iPhone and Android Phones
  • Integrated Bluetooth shutter Control
  • Removable Phone Holder
  • One-handed Operation
  • AC Powered (PRO-400P) / Battery Operated (PRO-400BP)
  • ASTM & RRES Compliant
  • IP65 Rated (PRO-400P)

Technical Specifications

Model Maximum Intensity at 15" Beam Diameter @15" > 1,000 µW/cm2 Peak Wavelength Light Source Visible Light White Light LED Intensity
PRO-400P 5,000 µW/cm2 10" Diameter 365 nm (+/- 5 nm) 1 UV-A LED (4 core) & 1 White LED < 0.5 ft.-candles (5 lux) 163 ft.-candles (1,800 lux)
PRO-400BP 5,000 µW/cm2 10" Diameter 365 nm (+/- 5 nm) 1 UV-A LED (4 core) & 1 White LED < 0.5 ft.-candles (5 lux) 163 ft.-candles (1,800 lux)



  • Dimensions: 3.3" Diameter, 4.7" W x 7.9" H (PRO-400P) / Dimensions (with battery): 3.3" Diameter, 4.7" W x 11.2" H (PRO-400BP)
  • Weight: 1.9 lbs. (0.85 kg) (PRO-400P) / Weight (with battery): 2.8 lbs. (1.25 kg) (PRO-400BP)
  • Specifications: ASTM E1417, ASTM E1444, ASTM E2297, ASTM E-3022, RRES 90061, ISO 3059
  • Power: 90 - 264 VAC / 47 - 63 Hz (PRO-400P)
  • Optional: High Capacity Li Battery (4,000 mAh) (PRO-400BP)
  • Battery Life: 4.5 hours (Standard Battery), 9 hours (High Capacity Battery) (PRO-400BP)
  • Battery Charge Time: 40 minutes (Standard Battery), 1 hour (High Capacity Battery) (PRO-400BP)

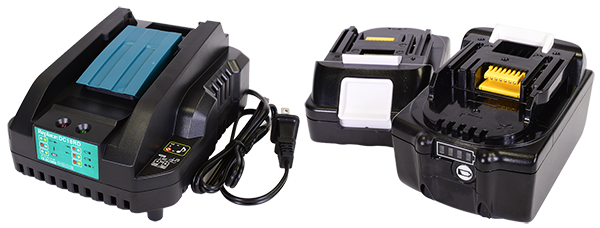

New and Improved Battery and Charger!

LCNDT has updated the PRO Series batteries and chargers to be more reliable and better than ever, featuring a charging dock with connectable battery instead of a charging cord. All new units come shipped with these new models. All units purchased prior to May 21, 2021, were supplied with the old version. The batteries and chargers are not interchangeable.
Standard Battery: 4.5 hour battery life, 40 min charge time
High Capacity Battery: 9 hour battery life, 1 hour charge time



New Model

Charger: UV-LC-PRO-BATT-CH-NEW

Battery 4000mAh: UV-LC-PRO-BATT-4.0-NEW

Battery 2000mAh: UV-LC-PRO-BATT-2.6-NEW

Old Model

Charger: UV-LC-PRO-BATT-CH

Battery 4000mAh: UV-LC-PRO-BATT-4.0

Battery 2000mAh: UV-LC-PRO-BATT-2.6

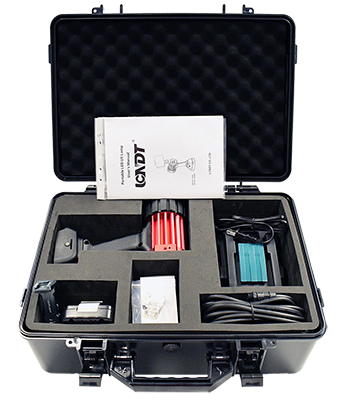

PRO-400P Kit Includes

  • PRO-400P lamp w/ built-in black light filter
  • Phone Holder
  • Power Supply w/ 10 ft. Power Cord
  • UV Goggles
  • Carrying Case
  • Serialized Certificates of Conformance (ASTM & RRES) & Validation Reports





PRO-400BP Kit Includes

  • PRO-400BP lamp
  • Phone Holder
  • 2 Li-Ion Batteries
  • Charger
  • Safety Goggles
  • Carrying Case
  • Serialized Certificates of Conformance (ASTM & RRES) & Validation Reports





Optional Accessories

  • PRO-400 External Li Ion battery (2,600 mAh), 24VDC
  • Tripod Stand
  • Rugged Power Supply with 20-Foot Heavy Duty Cable

The PRO-400P & PRO-400BP Include a 5 Year Parts / 1 Year Labor Warranty

Product Literature

Description Part # Saved Price Select Option Add to
LCNDT PRO-400P, Standard Intensity, Broad-Beam LED UV Lamp + White Light, 110-220V, US Plug (AC only), includes Power Supply w/10 ft. Power Cord, Integrated Bluetooth Shutter Control & Removable Phone Holder, UV Goggles, Case & Certification UV-LC-PRO-400P
$1,495.00
LCNDT PRO-400BP Standard Intensity, Broad-Beam LED UV + White Light Lamp, Includes Battery, 110-220V Charger (DC only), including Integrated Bluetooth Shutter Control and Removable Phone Holder, UV Goggles, Carrying Case and Certification UV-LC-PRO-400BP
$1,750.00
LCNDT PRO-400 External Li Ion Battery (2,600 mAh), 24VDC UV-LC-PRO-400-ExBatt
$250.00
Replacement Battery Charger for PRO Series Lamps, 110-220 VAC (0610) (*New Model) UV-LC-PRO-BATT-CH-NEW
$75.00
Optional Battery (4000mAh) for PRO Series lamps (*New Model) UV-LC-PRO-BATT-4.0-NEW
$125.00
Optional Battery (2000mAh) for PRO series lamps (*New Model) UV-LC-PRO-BATT-2.6-NEW
$75.00
Optional Battery (2,600 mAh) for PRO Series Lamps (*Old Model) UV-LC-PRO-BATT-2.6
$75.00
Optional Battery (4,000 mAh) for PRO Series Lamps (*Old Model) UV-LC-PRO-BATT-4.0
$125.00
Optional Heavy Duty Power Supply for LCNDT PRO Series with 10-Foot Heavy Duty Cable (0617) UV-LC-PRO-PS-HD
$200.00
Optional Heavy Duty Power Supply for LCNDT PRO Series with 20-Foot Heavy Duty Cable (0617 & 0673 Combined) UV-LC-Pro-PS-HD-20
$260.00
20 foot Cable AC UV - for LCNDT PRO Series UV-LC-PRO-CABLE-20
$75.00
LCNDT Tripod Stand for UV Series & PRO Series (also compatible with Spectro-UV and Magnaflux mountable lamps) UV-LC-UV-STAND
$120.00
LCNDT Magnetic Stand for UV Series & PRO Series Lamps UV-LC-MAG-STAND
$125.00
