The Telebrineller System

Accurate Results, Weatherproof Design & Rugged Construction. Backed by over 50 years of in-the-field experience... it’s everything you need to measure Brinell hardness anywhere!

  • Lightweight:  The complete Telebrineller system, in its case, weighs less than ten pounds. Easily transported to any location, it is highly practical for all BrineIl hardness testing needs.
  • Simple Operation: One hammer blow, measurement of the resulting impressions and the manipulation of a basic equation will be calculated on the computer provided-that's all. No special training required. In a few minutes, anyone can learn to determine BHN accurately.
  • Certified Accuracy: The test bars which are the core of this system, are calibrated to a uniform hardness of ± 2% of the labeled BHN. Hardness of the bars is measured by equipment whos accuracy is certified traceable to the National Standards Institute. Readings may be made within .05 millimeters.
  • Weatherproof: Designed for field use; there are no delicate adjustments or fragile components to be concerned with. All parts are rugged, solid and able to deliver accurate measurements in all weather, under the roughest field conditions.

5 Bars of Selected Hardness

Telebrineller test bars are included in your kit (your selected hardness). These are the core of the system and calibrated to a uniform hardness of +- 2% of the labeled BHN.

Hardness of the bars is measured by accurate equipment certified traceable to the National Standards Institute.

Available in many BHN values. 9/16” square, 6” in length.

BHN Values Table

627 352 229 147
578 341 223 142
555 331 217 138
534 321 212 135
514 311 207 131
495 302 200 127
477 293 194 124
461 285 188 121
444 277 182 117
429 269 176 114
415 262 170 111
401 255 165 109
388 248 160 106
375 241 156
363 235 151

Rugged Microscope

The Telebrineller System comes with a rugged, stable, free-standing portable microscope for reading Brinell impressions.

  • The high quality optics in the 10x focusable eyepiece and 2x objective provides 20x total magnification.
  • Easy to read glass reticule with 0.5mm linear scale in 0.1mm increments.
  • All aluminum lightweight housing cushioned with a shock absorbing textured grip
  • Stainless steel, reversible nosepiece allows the unit to be free-standing or flip and gain access to those hard to reach areas.
  • Can be used under normal room or outdoor lighting conditions.
  • Attached battery powered, adjustable beam LED light source included that pivots for compact storage.
  • Factory calibrated - to focus, simply rotate the focusing eyepiece.

Computer

The included computer helps make the Telebrineller System easy-to-use for everyone. NO SPECIAL TRAINING REQUIRED!

One hammer blow, measurement of the resulting impressions, and the manipulation of a basic equation on the computer provided - that's all. In just minutes, anyone can learn to determine BHN accurately.

Bar Holder

The Telebrineller System comes with a rugged bar holder that is like everything else in the kit: designed for field use!

The system comes with in-depth instructions that show how to load & use the bar holder with the other items in the kit to get accurate Brinell measurements right out of the gate!

Calculation Pad

Finally, a calculation pad is included to help ensure your success. This - along with the entire Telebrineller System - has been developed by our own welding crews in the field

We’ve based this system on proven metallurgical knowledge supported by more than fifty years of field experience!

Product Literature

Description Part # Saved Price Select Option Add to

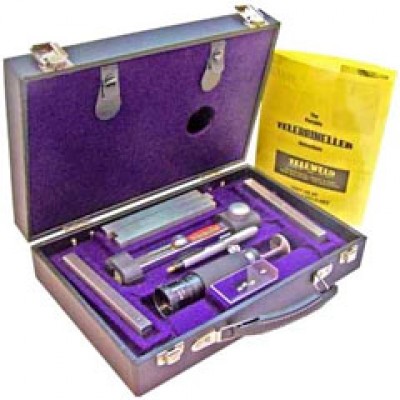

Telebrineller Kit Includes Five (5) Bars of Selected Hardness, Microscope, Computer, Bar Holder, Calculation Pad, all inside a Carrying Case. Includes Certificates of Calibration on the Microscope and the Bars HT-TW-0100 $1,835.00
Telebrineller Kit includes five (5) bars of selected hardness, Microscope, Computer, Halteman Filletester, Calculation Pad, all inside a Carrying Case HT-TW-0101 $2,013.00
Teleweld Halteman Filletester HT-TW-0200 $550.00
Telebrineller Bars - Steel, 9/16” Square, 6” Length (Each - Minimum Order 3) HT-TW-3000 $36.00
Telebrineller Bars - Steel, 9/16” Square, 6” Length (Each - 25 or More) HT-TW-4000 $31.00
Telebrineller Bars - Aluminum, 9/16” Square, 6” Length (Each - Minimum Order 3) HT-TW-6000 $56.00
Calibration Disc (stage micrometer) - Without Certification HT-TW-239-31 $452.00
Calibration Disc (stage micrometer) - With Certification HT-TW-239-31-CERT $879.00
