Warren Hexalon Series Intensifying Screens

Warren Hexalon Series Intensifying Screens

The Ultimate Choice for Intensifying Screens, Available in Sheets or Rolls at 0.005" or 0.010" Thickness

Ultimate Flex and Durability w/ Tighter Radius & Better Film to Screen Contact

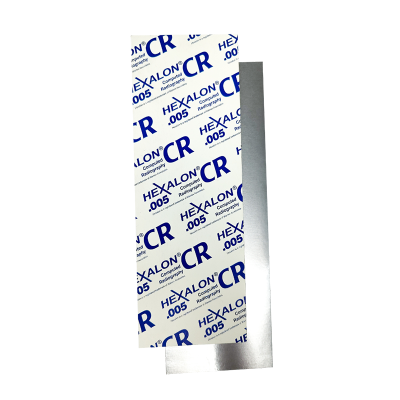

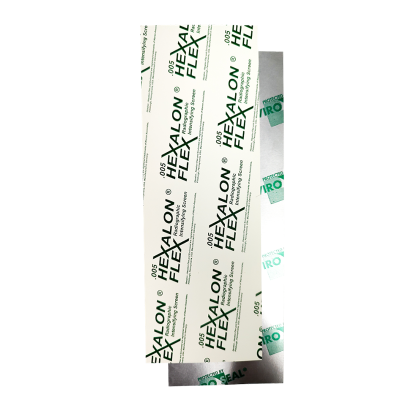

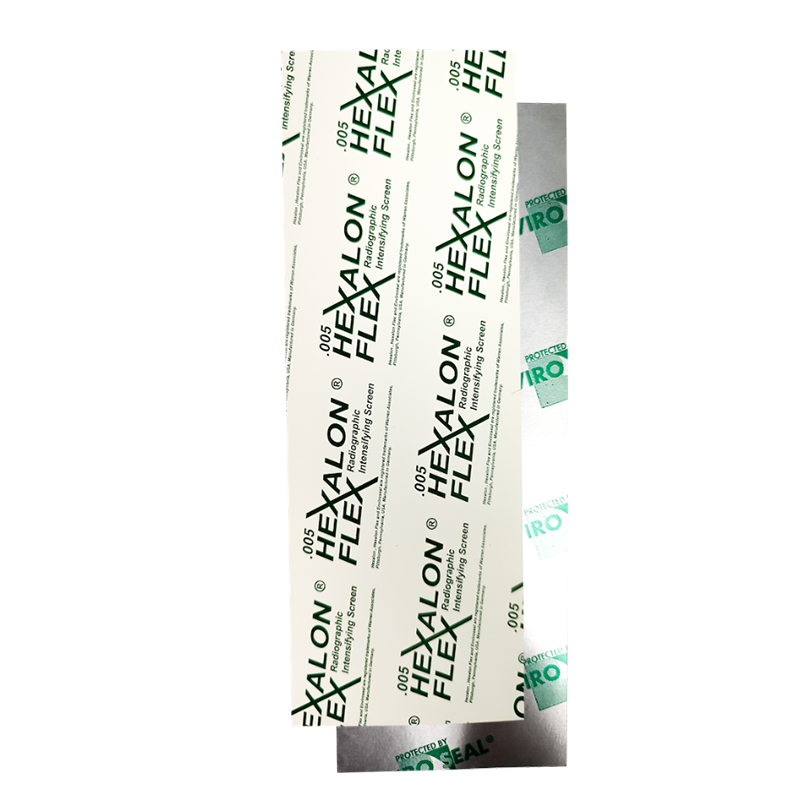

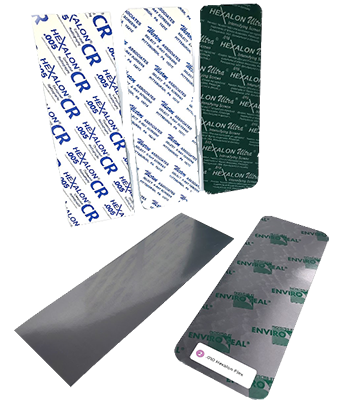

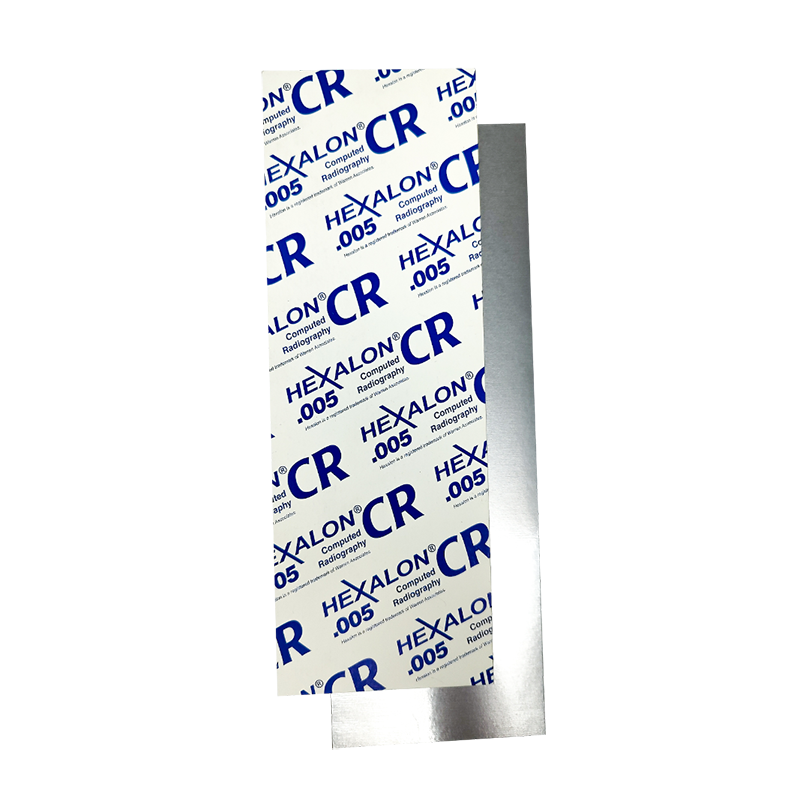

The Warren Hexalon Flex, Hexalon Ultra and Hexalon CR screens are the ultimate choices for radiographic intensifying screens, made with either innovative MiraLife backing (Hexalon Ultra & CR) or proprietary Fiber 90 backing (Hexalon Flex) for ultimate flex and durability. Available in sheets or rolls at 0.005" or 0.010" thickness and various widths, with custom sizes available upon request. Guaranteed Artifact-Free for greater accuracy and is the optimal intensifying screen for the job.

Features

  • Guaranteed Artifact-Free for greater accuracy
  • Features highly flexible and durable MiraLife (Ultra & CR) Backing
  • Unique proprietary Fiber 90 (Flex) Backing for inspecting dimensional surfaces
  • Fits ultra-tight radius for optimal film-to-screen contact
  • Cuts exposure time while increasing contrast and sensitivity
  • High absorption rate reduces scatter and secondary radiation
  • Enviroseal® peel-off cover protects from scratching and oxidizing
  • Available in sheets or rolls at 0.005" or 0.010" thickness and various widths

Available Sizes

Cut Screens - Standard Sizes

  • 14" x 17"
  • 8" x 10"
  • 5" x 7"
  • 7" x 17"
  • 4.5" x 10"
  • 4.5" x 17"

Custom sizes are available upon request

Available in either 0.005" or 0.010" thickness

Roll Stock Sizes

  • 2.75" (70mm wide) x 300 ft.
  • 3.5" (90mm wide) x 300 ft.
  • 4.5" (115mm wide) x 300 ft.
  • 2.75" (70mm wide) x 180 ft.
  • 3.5" (90mm wide) x 180 ft.
  • 4.5" (115mm wide) x 180 ft.
  • 17" (432mm wide) x 95 ft.

Available in either 0.005" or 0.010" thickness

Purchasing Conditions

Minimums

100 identical units for individual cut screens = cost is dealer pricing.
If minimum isn't met = cost is suggested list price

Options

Size and Thickness
Specify square or 1/2" radius cut corners when ordering cut screens

Pricing Conditions

Prices are for single thickness.

Volume pricing available for 100+, 250+, and 500+ identical units for individual cut screens. Prices on special sizes, thicknesses, and backings upon request. All prices FOB, Pittsburgh, PA 15212 USA.

Crating charge: $32.00 per box

Product Literature

Description Part # Saved Price Select Option Add to

Individual Cut Screens
Hexalon Flex .005" Cut Screens (Specify size & packaging)
Model #
RT-WA-Flex-.005-Master
Request Pricing
Hexalon Ultra .005" Cut Screens (Specify Size & Packaging)
Model #
RT-WA-Ultra-.005-Master
Request Pricing
Hexalon Flex .010" Cut Screens (Specify size & packaging)
Model #
RT-WA-Flex-.010-Master
Request Pricing
Hexalon Ultra .010" Cut Screens (Specify Size & Packaging)
Model #
RT-WA-Ultra-.010-Master
Request Pricing
