xrh111

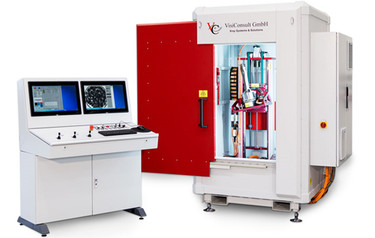

The XRH111 Universal X-ray cabinet provides maximum flexibility for inspection of small to medium sized parts. The XRH111 combines a compact footprint and minimum cost layout with high end features like Computed Tomography (CT) and Automatic Defect Recognition (ADR). Switching between Automatic Defect Recognition, 3D-CT lab inspection or manual testing is done effortlessly without any downtime, leading to increased system utilization and saves costs for multiple systems. The XRH111 is very efficient and simplistic, the operator just loads a defined parameter set and the system is ready for new tasks on a daily basis.

The XRH111 tests all kinds of parts up to a diameter of 15.7" (400mm) and a height of 23.6" (600mm) that does not exceed 55 lbs (25 kg). Depending on the job-requirements the system is available with 160kV, 225kV or micro-focus tubes. The cabinet has a footprint of 65" x 57" x 90.5" (1650 x 1450 x 2300mm) and is certified by the German TUV, ensuring absolute safety, no X-ray leakage, compliance to international standards and an ergonominc operator position.

Features:

  • Xplus: clear digital radiography images including live enhancement
  • Native Computed Tomography (CT) functionality
  • Automated 24/7 inspection through Automatic Defect Recognition (ADR) and programmable CNC drives
  • Designed for small to medium sized parts like castings
  • Minimum changeover times between different applications
  • Compact layout and small footprint


The core of the system is the in-built image enhancement system Xplus. Advanced features like overlay tools, macro generators, filter builders, live image enhancement, report toolkits, DICONDE integration, measurement tools and many more features make the Xplus the most sophisticated software on the market, leading to brillant image quality. Automated inspection sequences lead to unmatched efficiency and process safety. VisiConsult's constant development and 25 years of experience combined with maximum flexibility towards special process requirements, help our customers be one step ahead of the competition.

Description Part # Saved Price Select Option Add to
XRH111 Universal X-ray Cabinet RT-VC-XRH111 Request Pricing
