High Sensitivity DA Series Dual Probes with replacement delay lines

TMTndt DA Replaceable Delay Line Dual Probes

(Similar to Krautkramer / GE Gamma DU type)

High Sensitivity DA Series Dual Probe with replacement delay lines

7x12               7x12

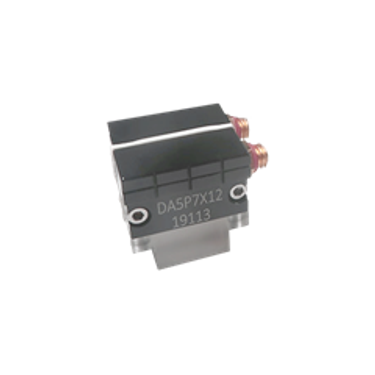

DA5P7x12
5MHz, 14 x 12mm

7x24mm             7x24mm

DA5P7x24
5 MHz, 14 x 24mm



Features:

  • Dual Element Transducers with Rectangular Dual Element and Microdot Connectors
  • Recommended for rough castings and forgings, railcar wheels and similar applications
  • Good near surface resolution
  • Delay lines and cross-talk barriers are easily replaceable
  • High temperature delay lines available
  • Microdot connectors - replaceable Cables



  • Better near-surface resolution then conventional contact transducers
  • Excellent combination of sensitivity and penetration.
  • Better sensitivity to irregularly shaped flaws.
  • Probe will last for many years, just replace the delay-lines and acoustic barriers as needed
  • Used with all flaw detectors that have a Dual Probe mode
  • Cables sold separately, specify instrument connector, BNC, Lemo 1 or Lemo 00
Model  Frequency Crystal Size(mm) Probe Size (inch) Typical Resolution in Steel
UT-TM-DA2.25P7X12 2.25 MHz 2 x 7 x 12mm 1/2" x 1/2" 1/16"
UT-TM-DA5P7X12 5 MHz 2 x 7 x 12mm 1/2" x 1/2" 1/32"
UT-TM-DA2.25P7X24 2.25 MHz 2 x 7 x 24mm 1/2" x 1" 1/16"
UT-TM-DA5P7X24 5 MHz 2 x 7 x 24mm 1/2" x 1" 1/32"
UT-TM-DA1P7X24 1 MHz 2 x 7 x 24mm 1/2" x 1" 1/8"
UT-TM-DA3.5P7X24 3.5 MHz 2 x 7 x 24mm 1/2" x 1 3/64"
UT-TM-DA1P7X12 1 MHz 2 x 0.5" x 0.5" 1" x 1" 1/8"
UT-TM-3.5P7X12 3.5 MHz 2 x 0.5" x 0.5" 1" x 1" 3/64"

Note: There is $25.00 small order fee for orders valued less than $50.00. Items can be combined to meet minimum.

Product Literature

Description Part # Saved Price Select Option Add to
DA Dual Probe, DA2.25P7X12, 2.25MHz, 7mm x 12mm crystal, 1/2" x 1/2" housing, microdot connectors UT-TM-DA2.25P7X12
$495.00
DA Dual Probe, DA5P7X12, 5MHz, 7mm x 12mm crystal, 1/2" x 1/2" housing, microdot connectors UT-TM-DA5P7X12
$495.00
DA Dual Probe, DA2.25P7X24, 2.25MHz, 7mm x 24mm crystal, 1/2" x 1" housing, microdot connectors UT-TM-DA2.25P7X24
$545.00
DA Dual Probe, DA5P7X24, 5MHz, 7mm x 24mm crystal, 1/2" x 1" housing, microdot connectors UT-TM-DA5P7X24
$545.00
DA Dual Probe, DA1P7X24, 1MHz, 7mm x 24mm crystal, 1/2" x 1" housing, microdot connectors UT-TM-DA1P7X24
$545.00
DA Dual Probe, DA3.5P7X24, 3.5MHz, 7mm x 24mm crystal, 1/2" x 1" housing, microdot connectors UT-TM-DA3.5P7X24
$545.00
DA Dual Probe, DA1P7X12, 1MHz, 0.5" x 0.5" crystal, 1" x 1" housing, microdot connectors UT-TM-DA1P7X12
$545.00
DA Dual Probe, DA3.5P7X12, 3.5MHz, 0.5" x 0.5" crystal, 1" x 1" housing, microdot connectors UT-TM-DA3.5P7X12
$545.00
Dual Replacement Delay Line Set Includes Insulator, Replacement Screws and Wrench - 1/2" x 1/2" Probes UT-TM-DA0.5"x0.5"-DL
$50.00
Dual Replacement Delay Line Set Includes Insulator, Replacement Screws and Wrench - 1/2" x 1" Probes UT-TM-DA0.5"x1"-DL
$55.00
DA Dual Probe - Replacement Screws - 100 UT-TM-DA-Screws
$15.00
DA Dual Probe - Replacement Wrench UT-TM-DA-Wrench
$7.50
