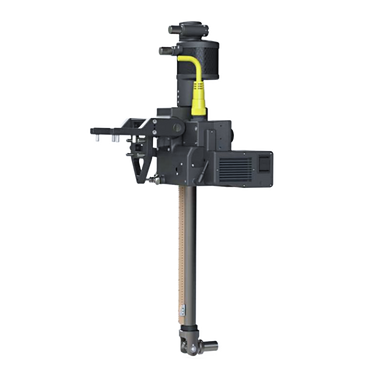

Manual Swivel-Gimbal UT Manipulator

Manual Swivel-Gimbal UT Manipulator

Versatile Manual Positioning with Multiple Z-Axis

Overview

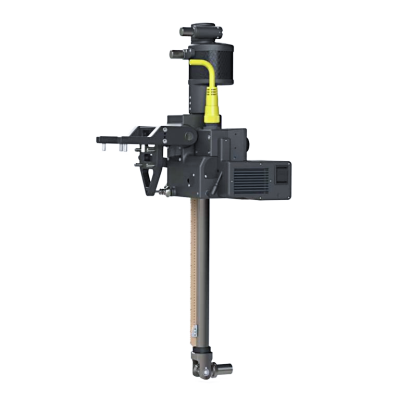

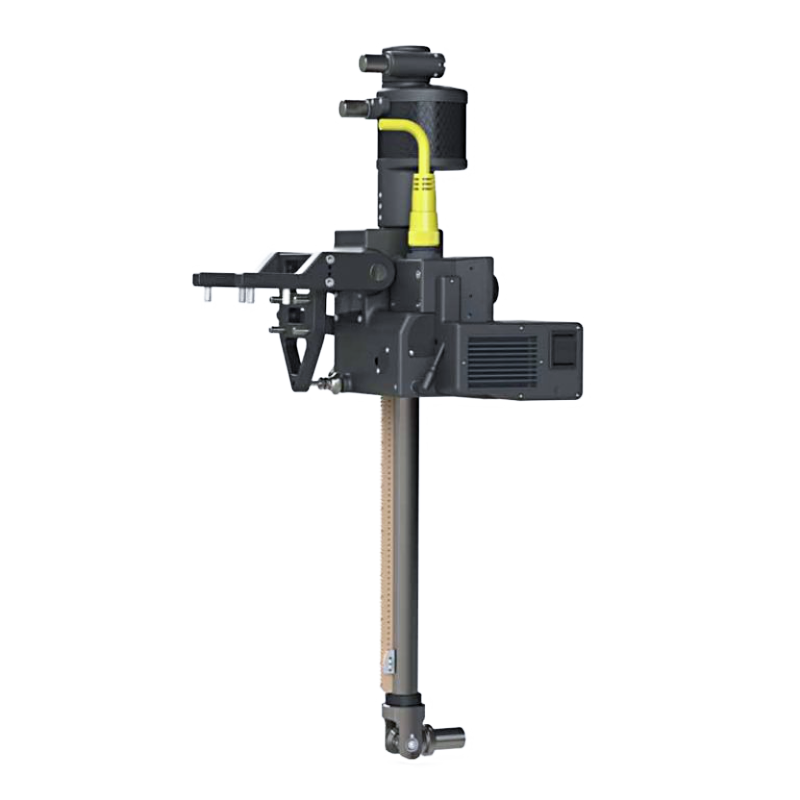

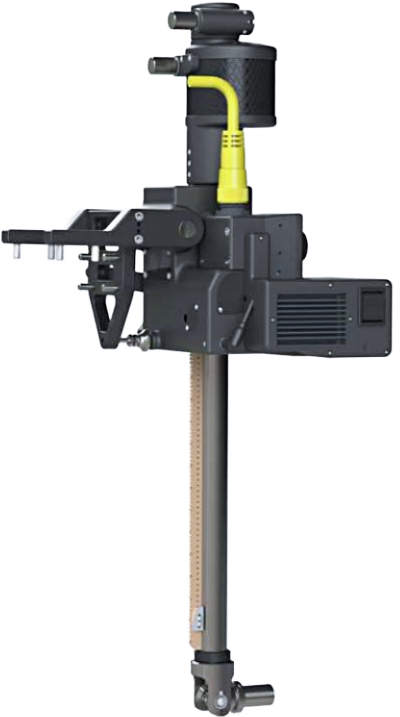

The Manual Swivel-Gimbal Manipulator provides versatile out-of-the-water manual positioning control for ultrasonic transducers in immersion tank applications. This manipulator offers dual-axis positioning with 270-degree swivel rotation about the up-tube axis and ±100-degree gimbal adjustment for precise probe angling from horizontal to tank bottom.

Available with multiple Z-axis drive options—manual knob, DC motor, or stepper motor—this manipulator accommodates diverse inspection requirements from basic manual positioning to fully programmable automated scanning. The robust 1-inch diameter up-tube assembly ensures rigid mounting and vibration resistance for reliable, repeatable inspections.

Features

  • Manual Z-Axis Positioning: Precision knob control for fine incremental height adjustments over inspection targets
  • DC Motor Z-Axis Option: Side-mounted toggle switch for rapid up/down movement with manual knob for fine positioning; includes limit switches to prevent overtravel
  • Stepper Motor Z-Axis Option: Programmable positioning with 0.0001 in (0.00254 mm) increments—ideal for integration with X-Y immersion tank systems
  • 270° Swivel Rotation: Wide rotational range about the tube axis for comprehensive inspection coverage

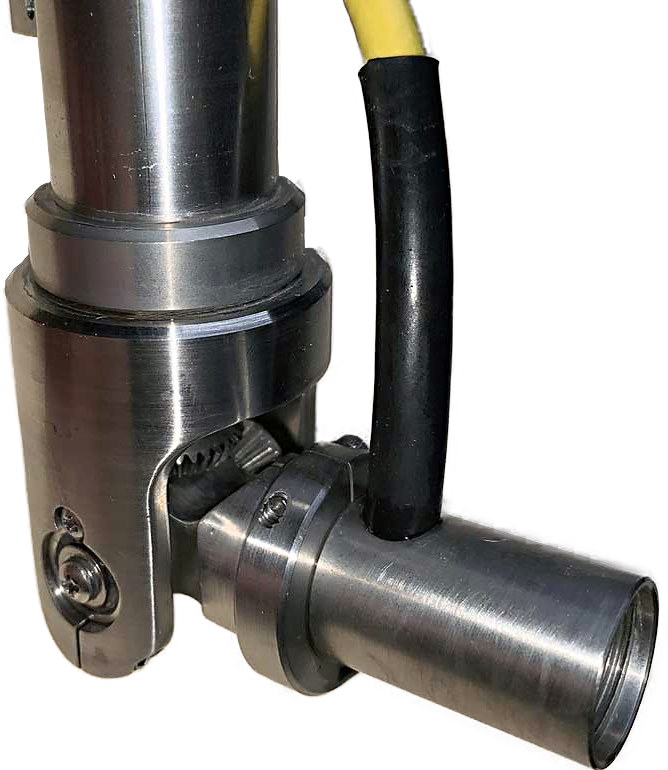

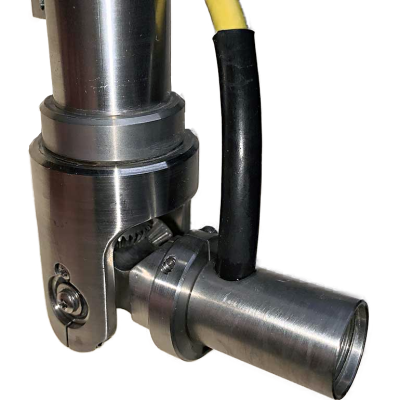

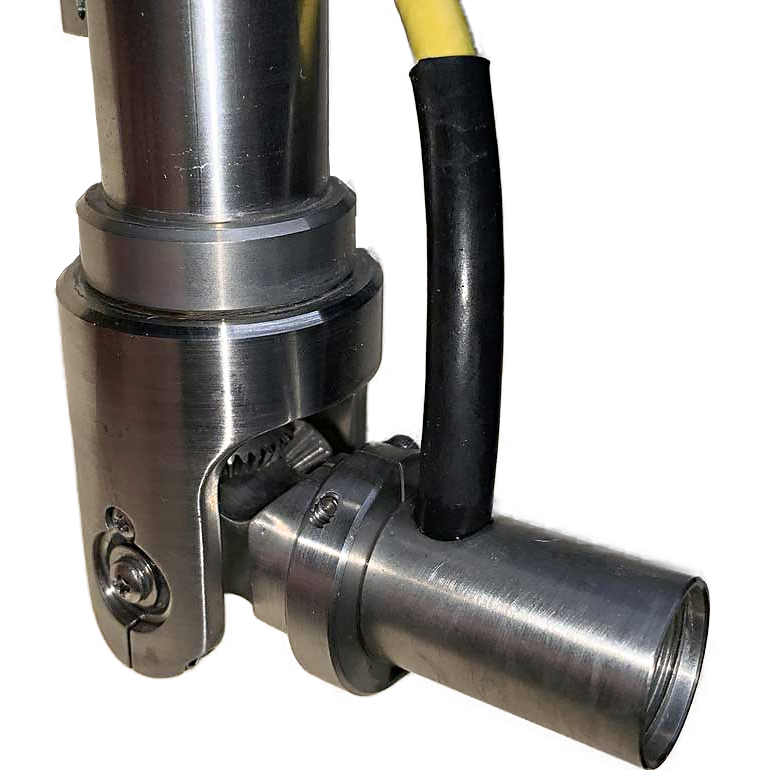

  • ±100° Gimbal Range: Extensive tilt capability from horizontal to near-vertical for bottom-of-tank inspection

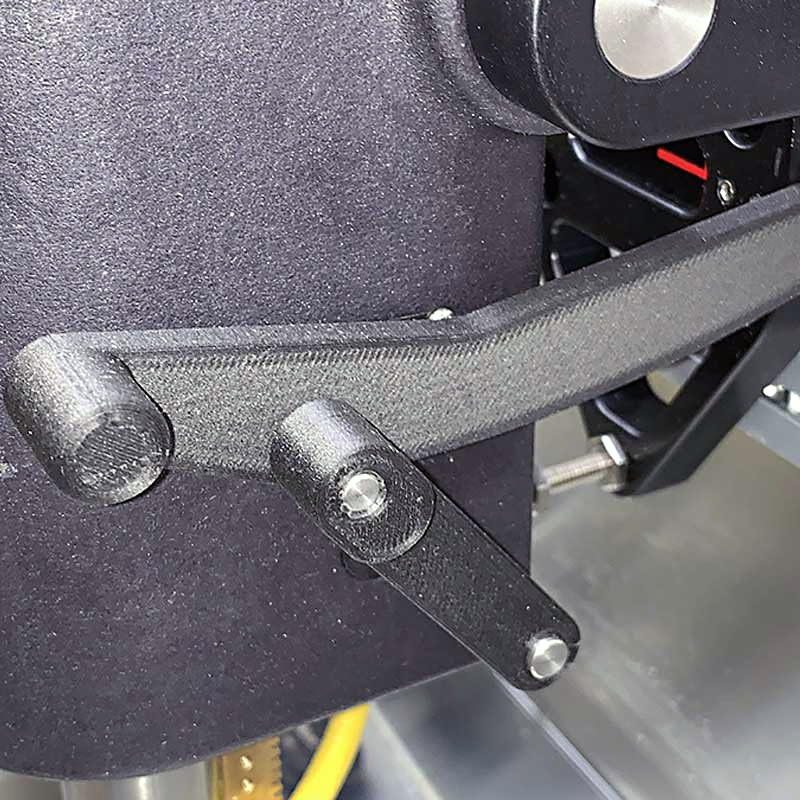

  • Optional Quick Swivel Mount: Rapidly swing manipulator out of tank for fast transducer changes and reduced in-water storage time
  • Rigid 1 in (25.4 mm) Up-Tube: Heavy-duty construction minimizes vibration effects and ensures stable positioning

Applications

  • Immersion tank inspection of aerospace components and forgings
  • Laboratory research and transducer characterization
  • Transducer manufacturing and testing facilities

Technical Specifications

Technical Specifications

Technical Specifications

Manual Swivel-Gimbal UT Manipulator Technical Specifications
Manipulator Type: Manual Swivel-Gimbal
Swivel Axis Range: 270°
Gimbal Axis Range: ±100° from bottom
Up-Tube Diameter: 1 in (25.4 mm)
Up-Tube Length:

18” (45.7cm) with a travel of 12” (30.5cm) top to bottom

(Other lengths are available optionally)
Z-Axis Options: Manual Knob, DC Motor, or Stepper Motor
Stepper Resolution: 0.0001 in (0.00254 mm)
DC Motor Control: Side-mounted toggle switch with limit switches
Positioning Method: Out-of-water manual adjustment
Quick Swivel Mount: Optional
Typical Application: Immersion tank ultrasonic inspection



To inquire about the Manual Swivel-Gimbal Ultrasonic Manipulator, click below

Request Pricing

Description Part # Saved Price Select Option Add to
Cobra Scientific Manual Swivel-Gimbal UT Manipulator UT-COBR-MSG-270
