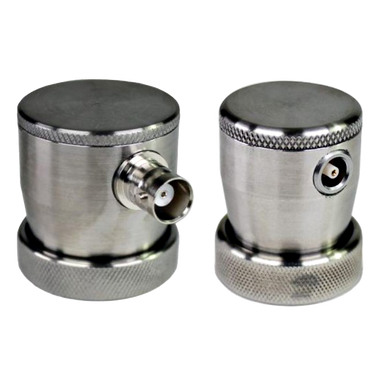

Sonatest SLM and PSLM Hard Face Transducers

Sonatest SLM and PSLM Hard Face Transducers

Rugged Medium and High Damped Transducers with Hard Face

Overview

The Sonatest SLM and PSLM Transducers project longitudinal waves for examination of flaws perpendicular to the sound beam. These contact-type transducers are excellent for detecting flaws in plate, shafts/axles and castings. The heavy duty stainless steel case provides longer service life.

Features

  • Single normal beam compression wave contact transducer
  • Medium Damped Lead Metaniobate Crystal - SLM
  • High Damped Piezo Composite Crystal - PSLM
  • Max operating temperature 50°C / 120°F
  • Hard ceramic wear face for higher durability
  • Connected via BNC, Lemo1, or Lemo 00
  • Heavy Duty Stainless Steel Case means a higher durability and longer service life than other transducers on the market

Applications

SLM and PSLM Transducers are generally used for flaw detections such as delamination or any other flaws that typically occur parallel with the material surface. Common applications include:

  • Plate
  • Castings
  • Forgings

Technical Specifications

Technical Specifications

SLM with Lead Metaniobate Crystals
Product Code Description Frequency (MHz) Crystal Diameter Nearfield Length in Steel
SLM5025 2.25MHz ½” Straight Beam Medium Damped  2.25  0.50 in (12.7 mm) 0.60 in (15.20 mm)
SLM7525 2.25MHz ¾" Straight Beam Medium Damped  2.25 0.75 in (19.05 mm) 1.343 in (34.10 mm)
SLM1025 2.25MHz 1” Straight Beam Medium Damped  2.25  1.00 in (25.40 mm) 2.40 in (60.90 mm)
SLM5050 5MHz ½” Straight Beam Medium Damped  5.0 0.50 in (12.7 mm) 1.33 in (33.80 mm)
SLM7550 5MHz ¾" Straight Beam Medium Damped 5.0 0.75 in (19.05 mm) 2.98 in (75.50 mm)
SLM1050 5MHz 1" Straight Beam Medium Damped 5.0 1.00 in (25.40 mm) 5.33 in (135.30 mm)





PSLM with Piezo Composite
Product Code Description Frequency (MHz) Crystal Diameter Nearfield Length in Steel
PSLM50.5 0.5MHz ½" Straight Beam High Damped  0.5 0.50 in (12.7 mm) 0.13 in (3.40 mm)
PSLM10.5 0.5MHz 1" Straight Beam High Damped 0.5 1.00 in (25.40 mm) 0.53 in (13.50 mm)
PSLM501 1MHz ½" Straight Beam High Damped 1 0.50 in (12.7 mm) 0.29 in (6.80 mm)
PSLM751 1MHz ¾" Straight Beam High Damped 1 0.75 in (19.05 mm) 0.59 in (15.1 mm)
PSLM101 1MHz 1" Straight Beam High Damped 1 1.00 in (25.40 mm) 1.07 in (27.10 mm)
PSLM5025 2.25MHz ½” Straight Beam High Damped 2.25 0.50 in (12.7 mm) 0.60 in (15.20 mm)
PSLM1025 2.25MHz 1” Straight Beam High Damped 2.25 1.00 in (25.40 mm) 2.40 in (60.90 mm)
PSLM503.5 2.25MHz ½’' Straight Beam High Damped 3.5 0.50 in (12.7 mm) 0.93 in (23.70 mm)
PSLM5050 5MHz 1/2” Straight Beam High Damped 5 0.50 in (12.7 mm) 1.33 in (33.80 mm)
PSLM1050 5MHz 1” Straight Beam High Damped 5 1.00 in (25.40 mm) 5.33 in (135.3 mm)





Case Dimensions and Details
Transducer Version Crystal Size Width/ Diameter Height Connector Options Position Options
0.375 in (10 mm) 0.83 in (21 mm) 0.75 in (19 mm) BNC, Lemo 1 or Lemo 00 Side
0.50 in (12.70 mm) 0.95 in (24 mm) 0.95 in (24 mm) BNC, Lemo 1 or Lemo 00 Side
0.75 in (19 mm) 1.34 in (34 mm) 1.34 in (34 mm) BNC, Lemo 1 or Lemo 00 Side
1.00 in (25.40 mm) 1.34 in (34 mm) 1.34 in (34 mm) BNC, Lemo 1 or Lemo 00 Side

Product Literature

Description Part # Saved Price Select Option Add to

2.25MHz SLM and PSLM Transducers
Sonatest SLM5025, Straight Beam Transducer, 2.25MHz x 1/2", Medium Damped (select connector type)
Model #
UT-ST-SLM5025
$358.00
Sonatest SLM5025, Straight Beam Transducer, 2.25MHz x 1", Medium Damped (select connector type)
Model #
UT-ST-SLM1025
$358.00
Sonatest PSLM5025, Composite Straight Beam Transducer, 2.25MHz x 1/2", High Damped (select connector type)
Model #
UT-ST-PSLM5025
$441.00
Sonatest PSLM1025, Composite Straight Beam Transducer, 2.25MHz x 1", High Damped (select connector type)
Model #
UT-ST-PSLM1025
$441.00

5MHz SLM and PSLM Transducers
Sonatest SLM5050, Straight Beam Transducer, 5MHz x 1/2", Medium Damped (select connector type)
Model #
UT-ST-SLM5050
$358.00
Sonatest SLM1050, Straight Beam Transducer, 5MHz x 1", Medium Damped (select connector type)
Model #
UT-ST-SLM1050
$358.00
Sonatest PSLM5050, Composite Straight Beam Transducer, 5MHz x 1/2", High Damped (select connector type)
Model #
UT-ST-PSLM5050
$441.00
Sonatest PSLM1050, Composite Straight Beam Transducer, 5MHz x 1", High Damped (select connector type)
Model #
UT-ST-PSLM1050
$441.00
