Sonatest PIM Transducers

Sonatest PIM Transducers

Immersion Transducers with a Composite Crystal for a High Bandwidth and Improved Output

Overview

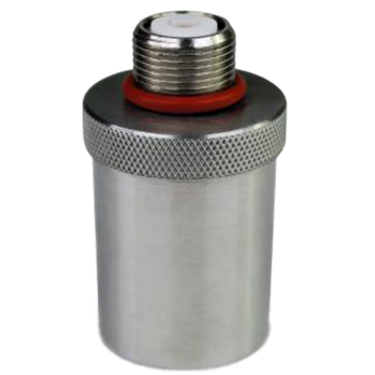

The Sonatest PIM Immersion Transducer is high damped for a wide bandwidth, which provides excellent resolution with optimum sensitivity. It features a circular composite crystal and a face that is acoustically matched to water. This immersion transducer is ideal for flaw detection on piping and on-line thickness gauging.

Features

  • Circular composite crystal for high bandwidth
  • Transducer face that is acoustically matched to water
  • Max operating temperature 50°C /  120°F
  • Spherical (point focus) / Cylindrical (line focus), and Custom Focus Distance available
  • Stainless Steel Case with UHF Connector

Applications

The PIM Transducer is ideal for testing of critical components where the test parts are partially or wholly immersed in water.

Common Applications Include:

  • High speed flaw detection in pipe, bar, tube, plate, and other similar components
  • On-line thickness gauging
  • Automated Scanning

Technical Specifications

Technical Specifications

PIM Transducer Models
Product Code Frequency (MHz) Crystal Diameter (mm / inches) Nearfield Length in Steel "unfocused" (mm / inches) Standard Point and Line Focus distance options (mm) Minimum and Maximum focal range for the probe (mm / inches)
PIM501 1 12.7mm / 0.5" 6.8mm / 0.268" 25.4 17.8 - 25.4mm / 0.701 - 1"
PIM751 1 19.2mm / 0.756" 15.5mm / 0.61" 38.1, 50.8 31.7 - 50.8mm / 1.248 - 2"
PIM 101 1 25.4mm / 1" 27.1mm / 1.067" 50.8, 63.5, 76.2 45.7 - 81.3mm / 1.799 - 3.201"
PIM2525 2.25 6.4mm / 0.252" 3.9mm / 0.154" 12.7 10.2 - 12.7mm / 0.402 - 0.5"
PIM3725 2.25 9.5mm / 0.374" 8.5mm / 0.335" 25.4 20.3 - 25.4mm / 0.799 - 1"
PIM5025 2.25 12.7mm / 0.5" 15.2mm / 0.598" 25.4, 38.1, 50.8 22.8 - 50.8mm / 0.898 - 2"
PIM7525 2.25 19.2mm / 0.756" 34.8mm / 1.37" 38.1, 50.8, 63.5, 76.2, 88.9, 101.6 31.7 - 101.6mm / 1.248 - 4"
PIM1025 2.25 25.4mm / 1" 60.9mm / 2.398" 50.8, 63.5, 76.2, 88.9, 101.6 48.2 - 152.4mm / 1.898 - 6"
PIM2550 5 6.4mm / 0.252" 8.6mm / 0.339" 12.7 12.7 - 25.4mm / 0.5 - 1"
PIM3750 5 9.5mm / 0.374" 18.6mm / 0.732" 25.4, 38.1 17.8 - 43.2mm / 0.701 - 1.701"
PIM5050 5 12.7mm / 0.5" 33.8mm / 1.331" 25.4, 38.1, 50.8, 63.5, 76.2, 88.9, 101.6 22.8 - 101.6mm / 0.898 - 4"
PIM7550 5 19.2mm / 0.756" 77.3mm / 3.043" 38.1, 50.8, 63.5, 76.2, 88.9, 101.6 31.7 - 203.2mm / 1.248 - 8"
PIM1050 5 25.4mm / 1" 135.3mm / 5.327" 50.8, 63.5, 76.2, 88.9, 101.6 50.8 - 203.2mm / 2 - 8"
PIM2510 10 6.4mm / 0.252" 17.2mm / 0.677" 12.7, 25.4, 38.1, 50.8 12.7 - 50.8mm / 0.5 - 2"



Case Dimensions and Details
Transducer Type Width/Diameter (mm / inches) Height (mm / inches) Connector Options Position Options
6.4mm / 0.252" 15.8mm / 0.622" 52.6mm / 2.071" UHF Top
9.5mm / 0.374" 15.8mm / 0.622" 52.6mm / 2.071" UHF Top
12.7mm / 0.5" 15.8mm / 0.622" 52.6mm / 2.071" UHF Top
19.2mm / 0.756" 22.7mm / 0.894" 52.6mm / 2.071" UHF Top
25.4mm / 1" 30mm / 1.181" 52.6mm / 2.071" UHF Top

For more information on Custom PIM Transducers, click on the link.

Request a Quote

Product Literature

Description Part # Saved Price Select Option Add to

1MHz PIM Transducers
Sonatest PIM501, Immersion Transducer, 1MHz, 0.5", High Damped, UHF Connector UT-ST-PIM501
$476.00
Sonatest PIM751, Immersion Transducer, 1MHz, 0.756", High Damped, UHF Connector UT-ST-PIM751
$476.00
Sonatest PIM101, Immersion Transducer, 1MHz, 1", High Damped, UHF Connector UT-ST-PIM101
$476.00

2.25MHz PIM Transducers
Sonatest PIM1025, Immersion Transducer, 2.25MHz, 1", High Damped, UHF Connector UT-ST-PIM1025
$425.00
Sonatest PIM2525, Immersion Transducer, 2.25MHz, 0.252", High Damped, UHF Connector UT-ST-PIM2525
$425.00
Sonatest PIM3725, Immersion Transducer, 2.25MHz, 0.374", High Damped, UHF Connector UT-ST-PIM3725
$425.00
Sonatest PIM5025, Immersion Transducer, 2.25MHz, 0.5", High Damped, UHF Connector UT-ST-PIM5025
$425.00
Sonatest PIM7525, Immersion Transducer, 2.25MHz, 0.756", High Damped, UHF Connector UT-ST-PIM5076
$425.00

5MHz and 10MHz PIM Transducers
Sonatest PIM2550, Immersion Transducer, 5MHz, 0.252", High Damped, UHF Connector UT-ST-PIM2550
$425.00
Sonatest PIM3750, Immersion Transducer, 5MHz, 0.374", High Damped, UHF Connector UT-ST-PIM3750
$425.00
Sonatest PIM5050, Immersion Transducer, 5MHz, 0.5", High Damped, UHF Connector UT-ST-PIM5050
$425.00
Sonatest PIM7550, Immersion Transducer, 5MHz, 0.756", High Damped, UHF Connector UT-ST-PIM7550
$425.00
Sonatest PIM2510, Immersion Transducer, 10MHz, 0.252", High Damped, UHF Connector UT-ST-PIM2510
$535.00
Sonatest PIM1050, Immersion Transducer, 5MHz, 1", High Damped, UHF Connector UT-ST-PIM1050
$425.00
