Overview

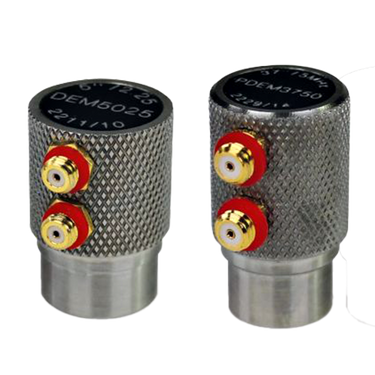

The Sonatest DEM and PDEM Fingertip Dual Transducers are for corrosion thickness measurements on pipes and tanks to measure wall thickness and detect pitting corrosion. The DEM is medium damped and features semi-circular lead zirconate titanate crystal; the PDEM is also medium damped and features Piezo composite crystal.

Features

  • Dual normal beam compression wave contact transducers
  • Semi Circular lead zirconate titanate crystals (DEM)
  • Semi Circular Piezo composite crystal (PDEM)
  • Max operating temperature 50°C / 120°F
  • Medium damped for medium bandwidth
  • High Temperature options for max temperature operation at 285°C / 545°F

Applications

DEM and PDEM Transducers are used for general non destructive testing purposes. High temperature models are available for the DEM. Common Applications include:

  • Thickness inspection
  • Casting Inspection for near surface flaws
  • High temperature inspection (DEM)

Technical Specifications

Technical Specifications

DEM Models
Product Code Description Frequency (MHz) Crystal Size (mm / inches) Nearfield Length in Steel (mm / inches)
DEM2525 2.25MHz ¼" Twin element 2.25 6.4mm / 1/4" 3.9mm / 0.154"
DEM3725 2.25MHz 3/8" Twin element 2.25 9.5mm / 3/8" 8.5mm / 0.335"
DEM5025 2.25MHz ½" Twin element 2.25 12.7mm / 1/2" 15.2mm / 0.598"
DEM2550 5MHz ¼" Twin element 5 6.4mm / 1/4" 8.6mm / 0.339"
DEM3750 5MHz 3/" Twin element 5 9.5mm / 3/8" 18.9mm / 0.744"
DEM5050 5MHz ½" Twin element 5 12.7mm / 1/2" 33.8mm / 1.331"
DEM3710 10MHz 3/8" Twin element 10 9.5mm / 3/8" 37.9mm / 1.492"
DEM5010 10MHz ½" Twin element 10 12.7mm / 1/2" 67.7mm / 2.665"



PDEM Models
Product Code Description Frequency (MHz) Crystal Size (mm / inches) Nearfield Length in Steel (mm / inches)
PDEM2525 2.25MHz ¼" Twin element 2.25 6.4mm / 1/4" 3.9mm / 0.154"
PDEM3725 2.25MHz 3/8" Twin element 2.25 9.5mm / 3/8" 8.5mm / 0.335"
PDEM5025 2.25MHz ½" Twin element 2.25 12.7mm / 1/2" 15.2mm / 0.598"
PDEM2550 5MHz ¼" Twin element 5 6.4mm / 1/4" 8.6mm / 0.339"
PDEM3750 5MHz 3/8" Twin element 5 9.5mm / 3/8" 18.9mm / 0.744"
PDEM5050 5MHz ½" Twin element 5 12.7mm / 1/2" 33.8mm / 1.331"
PDEM2510 10MHz ¼" Twin element 10 6.4mm / 1/4" 17.2mm / 0.677"



Case Dimensions & Details
Transducer Type Width/Diameter (mm / inches) Height (mm / inches) Connector Options Position Options
6.4mm / 1/4" 10mm / 0.394" 25.4mm / 1" D Side
9.5mm / 3/8" 12.7mm / 0.5" 25.4mm / 1" D Side
12.7mm / 1/2" 16.2mm / 0.638" 25.4mm / 1" D Side
