Sonatest CD Dual Transducers

Sonatest CD Dual Transducers

For Near surface resolution, Thickness gauging and testing Attenuative Material

Overview

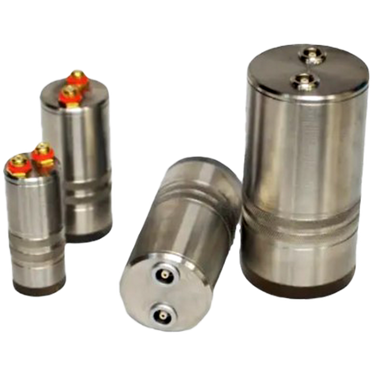

The Sonatest CD Dual Transducers are designed for applications requiring high near-surface resolution and for attenuative, noisy materials. The CD transducer is medium damped and features lead zirconate titanate crystal. This transducer is available in high temperature and short focus models.

Features

  • Semi circular and rectangular lead zirconate titanate crystals
  • Max operating temperature 50°C / 120°F
  • High temperature options available up to 400°C / 752°F
  • Medium dampening for medium bandwidth
  • Short focus shoe available

Applications

The CD Transducer is designed for improved penetration of noisy and attenuative material. It comes in a standard model, a short shoe focus model, and high temperature model. Common Applications include:

  • Near Surface Resolution Inspection
  • Castings and Forgings
  • General Thickness Inspection

Technical Specifications

Technical Specifications

CD Transducer Models
Product Code Description Frequency (MHz) Crystal Size Diameter / rectangular (mm / inches) Nearfield Length in Steel (mm / inches)
PCD1-25 1,25MHz TC Twin (composite only) 1.25 25mm / 0.984" 32.8mm / 1.291"
CD2-10 2MHz TC Twin 2 4 x 8mm / 0.157 x 0.315" 8.4mm / 0.331"
CD2-15 2MHz TC Twin 2 5 x 13mm / 0.197 x 0.512" 18.9mm / 0.744"
CD2-20 2MHz TC Twin 2 6 x 17mm / 0.236 x 0.669" 33.6mm / 1.323"
CD2-25 2MHz TC Twin 2 25mm / 0.984" 52.4mm / 2.063"
CD5-10 5MHz TC Twin 5 4 x 8mm / 0.157 x 0.315" 21mm / 0.827"
CDF5-10 5MHz TC Twin with short focus shoe 5 4 x 8mm / 0.157 x 0.315" 21mm / 0.827"
CD5-15 5MHz TC Twin 5 5 x 13mm / 0.197 x 0.512" 47.2mm / 1.858"
CD5-20 5MHz TC Twin 5 6 x 17mm / 0.236 x 0.669" 83.9mm / 3.303"
CD5-25 5MHz TC Twin 5 25mm / 0.984" 131.1mm / 5.161"
CD2-20HT 2MHz TC High Temp Twin 2 6 x 17mm / 0.236 x 0.669" 33.6mm / 1.323"
CD5-10HT 5MHz TC High Temp Twin 5 4 x 8mm / 0.157 x 0.315" 21mm / 0.827"
CD5-15HT 5MHz TC High Temp Twin 5 5 x 13mm / 0.197 x 0.512" 47.2mm / 1.858"
CD5-20HT 5MHz TC High Temp Twin 5 6 x 17mm / 0.236 x 0.669" 83.9mm / 3.303"



Case Dimensions and Details
Transducer Version Crystal size Width/Diameter (mm / inches) Height (mm / inches) Connector Options Position Options
4 x 8mm / 0.157 x 0.315" 17mm / 0.669" 41mm / 1.614" Microdot & Lemo 00 Top
5 x 13mm / 0.197 x 0.512" 22mm / 0.866" 48mm / 1.89" Microdot & Lemo 00 Top
6 x 17mm / 0.236 x 0.669" 27mm / 1.063" 56mm / 2.205" Microdot & Lemo 00 Top
25mm / 0.984" 35mm / 1.378" 66mm / 2.598" Microdot & Lemo 00 Top

Product Literature

Description Part # Saved Price Select Option Add to

2MHz CD Transducers
Sonatest CD2-10, Dual Probe Transducer, 2MHz x 4mm x 8mm, Medium Damped (select connector type)
Model #
UT-ST-CD2-10
$336.00
Sonatest CD2-10HTZ, High Temperature Dual Probe Transducer, 2MHz x 4mm x 8mm, Medium Damped UT-ST-CD2-10HTZ
$448.00
Sonatest CD2-15, Dual Probe Transducer, 2MHz x 5mm x 13mm, Medium Damped (select connector type)
Model #
UT-ST-CD2-15
$336.00
Sonatest CD2-15HTZ, High Temperature Dual Probe Transducer, 2MHz x 5mm x 13mm, Medium Damped UT-ST-CD2-15HTZ
$448.00
Sonatest CD2-20, Dual Probe Transducer, 2MHz x 6mm x 17mm, Medium Damped (select connector type)
Model #
UT-ST-CD2-20
$336.00
Sonatest CD2-20HTZ, High Temperature Dual Probe Transducer, 2MHz x 6mm x 17mm, Medium Damped UT-ST-CD2-20HTZ
$448.00
Sonatest CD2-25, Dual Probe Transducer, 2MHz x 25mm, Medium Damped (select connector type)
Model #
UT-ST-CD2-25
$336.00

5MHz CD Transducers
Sonatest CD5-10, Dual Probe Transducer, 5MHz x 4mm x 8mm, Medium Damped (select connector type)
Model #
UT-ST-CD5-10
$336.00
Sonatest CD5-10HTZ, High Temperature Dual Probe Transducer, 5MHz x 4mm x 8mm, Medium Damped UT-ST-CD5-10HTZ
$448.00
Sonatest CD5-15, Dual Probe Transducer, 5MHz x 5mm x 13mm, Medium Damped (select connector type)
Model #
UT-ST-CD5-15
$336.00
Sonatest CD5-20, Dual Probe Transducer, 5MHz x 6mm x 17mm, Medium Damped (select connector type)
Model #
UT-ST-CD5-20
$336.00
Sonatest CD5-20HTZ, High Temperature Dual Probe Transducer, 5MHz x 6mm x 17mm, Medium Damped UT-ST-CD5-20HTZ
$448.00
Sonatest CD5-25, Dual Probe Transducer, 5MHz x 25mm, Medium Damped (select connector type)
Model #
UT-ST-CD5-25
$336.00
Sonatest CD5-25HTZ, High Temperature Dual Probe Transducer, 5MHz x 25mm, Medium Damped UT-ST-CD5-25HTZ
$448.00

Specialty CD Transducers
Sonatest PCD1-25, Dual Probe Transducer, 1.25MHz x 25mm, Medium Damped (select connector type)
Model #
UT-ST-PCD1-25
Request Pricing
Sonatest CDF5-10Z, Short Focus Shoe Dual Probe Transducer, 5MHz x 25mm, Medium Damped UT-ST-CDF5-10Z
Request Pricing
