Sonatest SSG and PSS Angle Beam Transducers

Sonatest SSG and PSS Angle Beam Transducers

Replaceable wedge Angle Beam Transducers for use with AWS Snail and Serrated Wedges

Overview

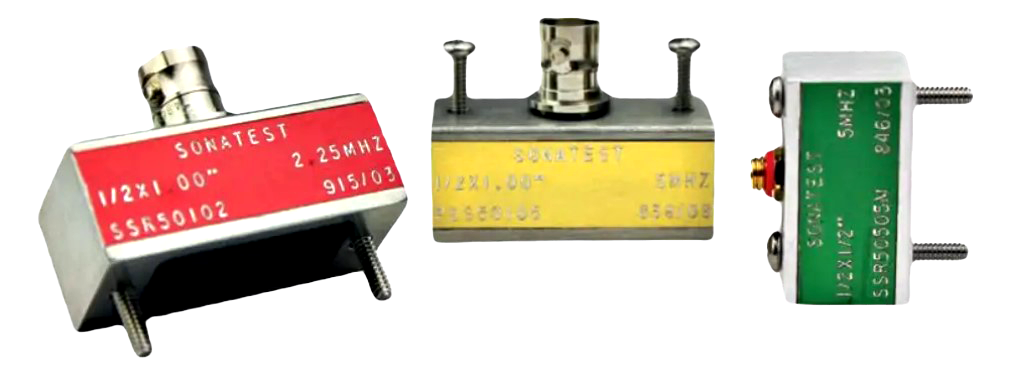

The Sonatest SSG and PSS Angle Beam Transducers are designed to be used with AWS Snail and Serrated Wedges. The SSG is low damped and features a lead metaniobate crystal; the PSS is high damped with a Piezo composite crystal. These Angle Beam Transducers are ideal for weld inspections. The wedges are sold separately.

Features

  • Rectangular lead metaniobate (SSG) or Piezo Composite (PSS) crystals
  • Max operating temperature 50°C / 120°F
  • High temperature options available up to 285°C / 545°F for SSG probes
  • SSG probes have Low dampening for narrow bandwidth
  • PSS have high damping for wide bandwidth
  • AWS Code compliant transducers and wedges

Applications

SSG and PSS Transducers are used for weld inspection and crack detection applications. High temperature wedges are available for use with SSG probes.

Common Applications include:

  • Weld Inspection
  • Crack Detection

Technical Specifications

Technical Specifications

PSS Models
Product Code Description Frequency (MHz) Crystal Size (inches) Nearfield Length in Steel (inches)
PSS62621 1MHz 5/8“ x 5/8” Shearwave 1 5/8 x 5/8" 0.77"
PSS75751 1MHz 3/4"x 3/4" Comp. SW 1 3/4 x 3/4" 1.12"
PSS50101 1MHz 1/2"x 1" Std SW 1 1/2 x 1" 1.97"
PSS50102 2.25MHz ½” x 1” Shearwave BNC 2.25 1/2 x 1 1.11"
PSS50502 2.25MHz ½” x ½” Shearwave BNC 2.25 1/2 x 1/2" 1.11"
PSS62622* 2.25MHz 5/8" x 5/8" Shearwave BNC 2.25 5/8 x 5/8" 4.42"
PSS62752* 2.25MHz ¾“x5/8” Shearwave BNC 2.25 3/4 x 5/8" 2.53"
PSS75752* 2.25MHz ¾” x ¾“ Shearwave BNC 2.25 3/4 x 3/4" 2.53"
PSS50105 5MHz ½”x 1” Shearwave BNC 5 1/2 x 1" 9.83"
PSS50505 5MHz ½” x ½” Shearwave BNC 5 1/2 x 1/2" 2.46"
PSS62625 5MHz 5/8”x 5/8” Shearwave BNC 5 5/8 x 5/8" 9.83"
PSS62755 5MHz ¾“ x 5/8” Shearwave BNC 5 3/4 x 5/8" 5.62"
PSS75755 5MHz ¾” x ¾“ Shearwave BNC 5 3/4 x 3/4" 5.62"



SSG Models
Product Code Description Frequency (MHz) Crystal Size (inches) Nearfield Length in Steel (inches)
SSG50502 ½” x ½” Shearwave BNC 2.25 1/2 x 1/2" 1.1"
SSG50102 ½” x 1” Shearwave BNC 2.25 1/2 x 1" 1.1"
SSG62622* 5/8"x5/8" Shearwave BNC 2.25 5/8 x 5/8" 4.4"
SSG62752* ¾“x5/8” Shearwave BNC 2.25 3/4 x 5/8" 2.5"
SSG75752* ¾” x ¾“ Shearwave BNC 2.25 3/4 x 3/4" 2.5"
SSG50505 ½” x ½” Shearwave BNC 5 1/2 x 1/2" 2.5"
SSG50105 ½”x 1” Shearwave BNC 5 1/2 x 1" 9.8"
SSG62625 5/8”x 5/8” Shearwave BNC 5 5/8 x 5/8" 9.8"
SSG62755 ¾“ x 5/8” Shearwave BNC 5 3/4 x 5/8" 5.6"
SSG75755 ¾” x ¾“ Shearwave BNC 5 3/4 x 3/4" 5.6"

  * Denotes AWS Compliance

Case Dimensions and Details for PSS & SSG
Transducer size Width (inches) Height (inches) Length (inches) Connector Options Position Options
1/2 x 1/2" 0.75" 0.75" 1.12" BNC Top
1/2 x 1" 0.75" 0.75" 1.62" BNC Top
5/8 x 5/8" 0.85" 0.75" 1.35" BNC Top
5/8 x 3/4" 0.85" 0.75" 1.35" BNC Top
3/4 x 3/4" 0.95" 0.75" 1.35" BNC Top

Optional Accessories

The SSG and PSS Transducers are compatible with Standard and Snail Wedge Variants. The Wedges, which allow for the sound beam to be 'pointed' at different angles come in a variety of different configurations and angles. For a full list of them, click here.

Product Literature

Description Part # Saved Price Select Option Add to

1 MHz SSG and PSS Transducers
Sonatest PSS62621, Angle Beam Transducer, 1MHz 5/8“ x 5/8” Shearwave, High Damped, BNC Connector UT-ST-PSS62621
$404.00
Sonatest PSS75751, Angle Beam Transducer, 1MHz 3/4“ x 3/4“ Shearwave, High Damped, BNC Connector UT-ST-PSS75751
$404.00
Sonatest PSS50501, Angle Beam Transducer, 1MHz 1/2” x 1/2” Shearwave, High Damped, BNC Connector UT-ST-PSS50501
$404.00

2.25 MHz SSG and PSS Transducers
Sonatest PSS50102, Angle Beam Transducer, 2.25MHz 1/2” x 1” Shearwave, High Damped, BNC Connector UT-ST-PSS50102
$386.00
Sonatest PSS50502, Angle Beam Transducer, 2.25MHz 1/2” x 1/2” Shearwave, High Damped, BNC Connector UT-ST-PSS50502
$386.00
Sonatest PSS62622, Angle Beam Transducer, 2.25MHz 5/8” x 5/8” Shearwave, High Damped, BNC Connector UT-ST-PSS62622
$386.00
Sonatest PSS62752, Angle Beam Transducer, 2.25MHz 3/4” x 5/8” Shearwave, High Damped, BNC Connector UT-ST-PSS62752
$386.00
Sonatest PSS75752, Angle Beam Transducer, 2.25MHz 3/4” x 3/4” Shearwave, High Damped, BNC Connector UT-ST-PSS75752
$386.00
Sonatest SSG50502, Angle Beam Transducer, 2.25MHz 1/2” x 1/2” Shearwave, Low Damped, BNC Connector UT-ST-SSG50502
$330.00
Sonatest SSG50102, Angle Beam Transducer, 2.25MHz 1/2” x 1” Shearwave, Low Damped, BNC Connector UT-ST-SSG50102
$330.00
Sonatest SSG62622, Angle Beam Transducer, 2.25MHz 5/8” x 5/8” Shearwave, Low Damped, BNC Connector UT-ST-SSG62622
$330.00
Sonatest SSG62752, Angle Beam Transducer, 2.25MHz 3/4” x 5/8” Shearwave, Low Damped, BNC Connector UT-ST-SSG62752
$330.00
Sonatest SSG75752, Angle Beam Transducer, 2.25MHz 3/4” x 3/4” Shearwave, Low Damped, BNC Connector UT-ST-SSG75752
$330.00

5MHz SSG and PSS Transducers
Sonatest PSS50105, Angle Beam Transducer, 5MHz 1/2” x 1” Shearwave, High Damped, BNC Connector UT-ST-PSS50105
$386.00
Sonatest PSS50505, Angle Beam Transducer, 5MHz 1/2” x 1/2” Shearwave, High Damped, BNC Connector UT-ST-PSS50505
$386.00
Sonatest PSS62625, Angle Beam Transducer, 5MHz 5/8” x 5/8” Shearwave, High Damped, BNC Connector UT-ST-PSS62625
$386.00
Sonatest PSS75755, Angle Beam Transducer, 5MHz 3/4” x 3/4” Shearwave, High Damped, BNC Connector UT-ST-PSS62755
$386.00
Sonatest SSG50505, Angle Beam Transducer, 5MHz 1/2” x 1/2” Shearwave, Low Damped, BNC Connector UT-ST-SSG50505
$330.00
Sonatest SSG50105, Angle Beam Transducer, 5MHz 1/2” x 1” Shearwave, Low Damped, BNC Connector UT-ST-SSG50105
$330.00
Sonatest SSG62625, Angle Beam Transducer, 5MHz 5/8” x 5/8” Shearwave, Low Damped, BNC Connector UT-ST-SSG62625
$330.00
Sonatest SSG75755, Angle Beam Transducer, 5MHz 3/4” x 3/4” Shearwave, Low Damped, BNC Connector UT-ST-SSG75755
$330.00
Sonatest SSG62755, Angle Beam Transducer, 5MHz 3/4” x 5/8” Shearwave, Low Damped, BNC Connector UT-ST-SSG62755
$330.00
