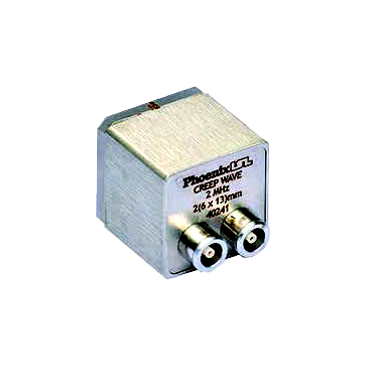

The Phoenix Creep Wave 2MHz and 4MHz Transducers are designed for near surface flaw detection on carbon steel material. Austenitic-application Transducers are available upon request.
The Creep Wave Transducer is ideal for near-surface flaws where the material surface is not smooth. Common applications include:
Product Code | Description | Frequency MHz | Crystal Size (mm) | Probe Size L x W x H (mm) | Connector |
CW 2/13 | 2MHz 1/2" Creep Wave | 2 | 2 (6 x 13) | 25 x 25 x 25 | Lemo 00 |
CW 2/20 | 2MHz 3/4" Creep Wave | 2 | 2 (10 x 20) | 30 x 30 x 28 | Lemo 00 |
CW 4/13 | 4MHz 1/2" Creep Wave | 4 | 2 (6 x 13) | 25 x 25 x 25 | Lemo 00 |
CW 4/20 | 4MHz 3/4" Creep Wave | 4 | 2 (10 x 20) | 30 x 30 x 28 | Lemo 00 |
To purchase, click on the link below
