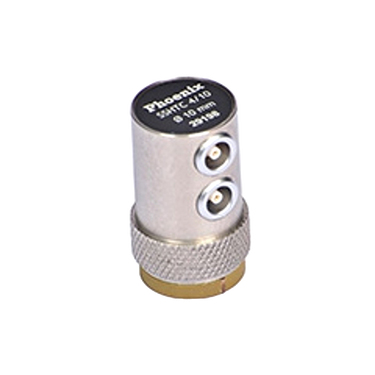

The Phoenix Twin Crystal Compression Wave Transducers are for use on high-temperature material. Either 240ºF / 120ºC continuously or at 392ºF / 200ºC intermittently. With a wide frequency range and varied focus, these transducers are ideal for any high-temperature application.
The Twin Crystal Compression Wave Transducers are for continuous or intermittent inspection on high temperature materials
| Product Code |
Frequency MHz |
Crystal Dia (mm) |
Nominal Focus (mm) |
Probe Size Dia x H (mm) |
Connector |
| SSHTC 1/20 | 1 | 20 | 28 | 31 x 41 | Lemo 00 |
| SSHTC 2/20 | 2 | ||||
| SSHTC 2.5/10 | 2.5 | 10 | 12 | 20 x 33 | |
| SSHTC 4/6 | 4 | 6 | 8 | 12 x 25 | Subvis |
| SSHTC 4/10 | 10 | 12 | 20 x 33 | Lemo 00 | |
| SSHTC 4/20 | 20 | 28 | 31 x 41 | ||
| SSHTC 5/10 | 5 | 10 | 12 | 20 x 33 | |
| SSHTC 5/20 | 20 | 28 | 31 x 41 |
