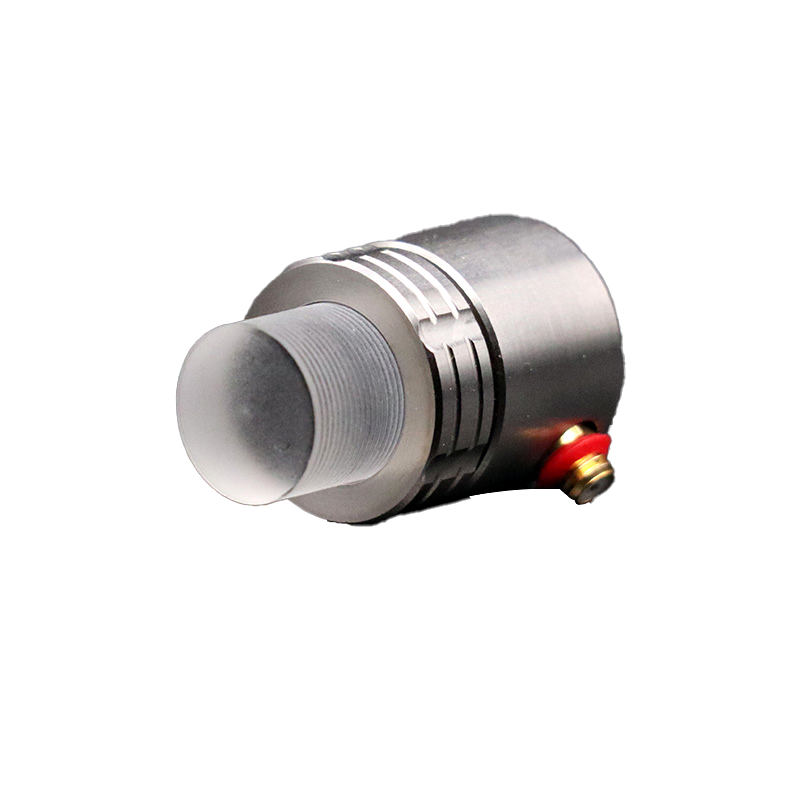

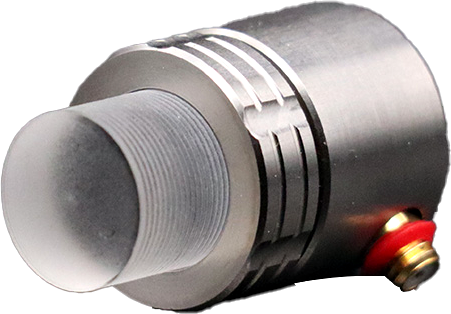

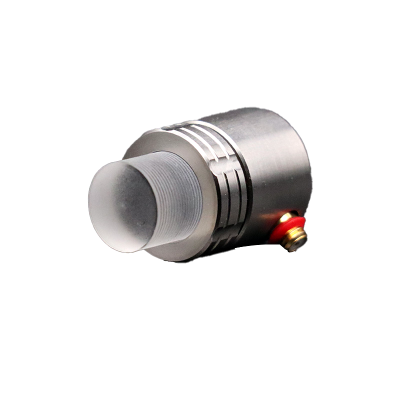

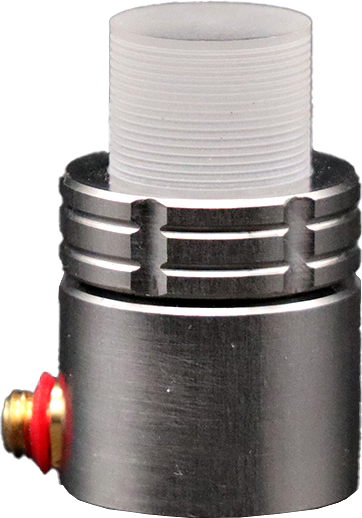

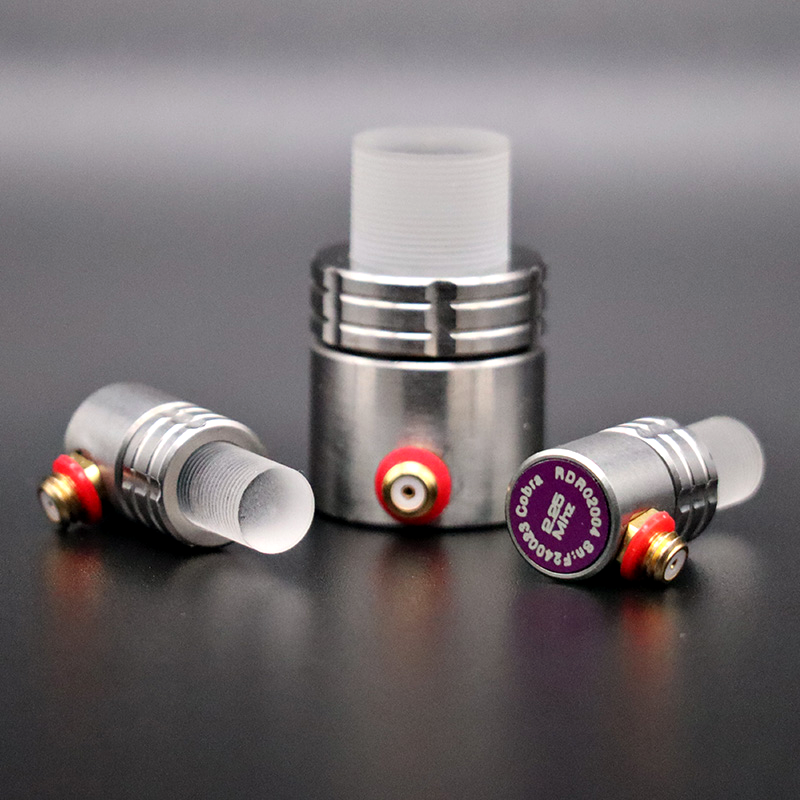

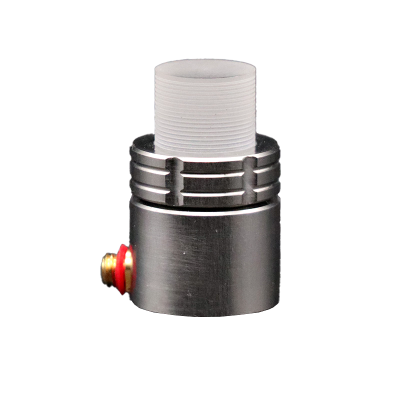

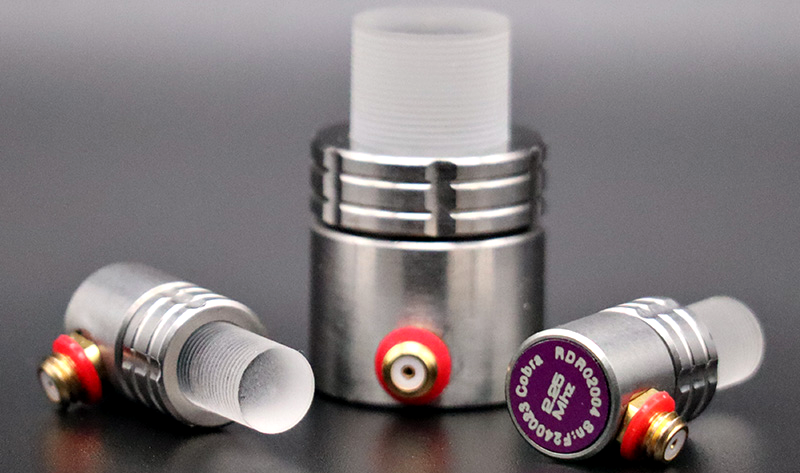

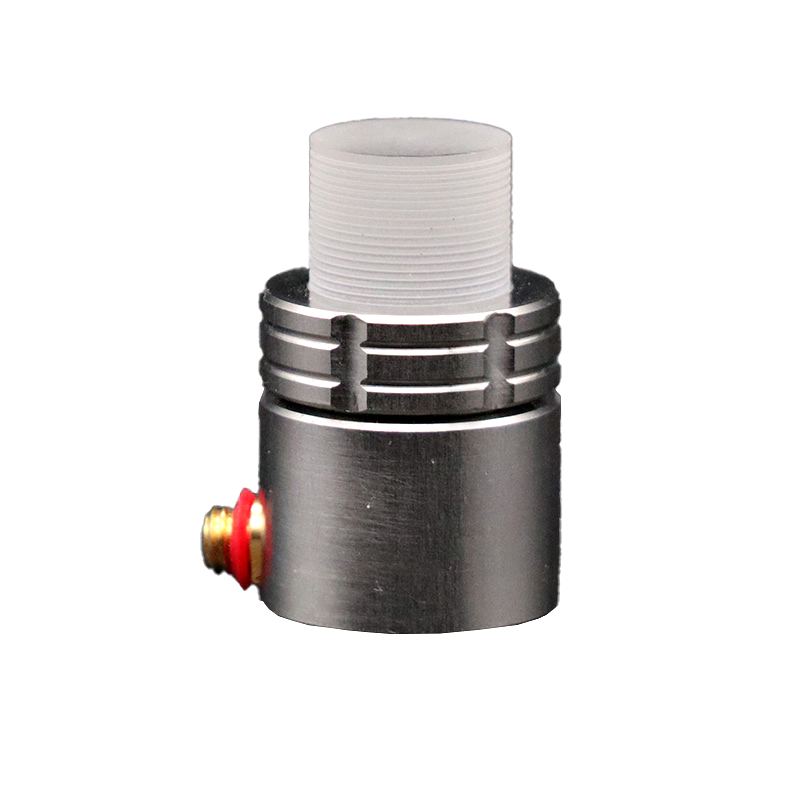

Cobra Replaceable Delay Line Transducers

Cobra Replaceable Delay Line Transducers

Extend Transducer Life and Increase Resolution For Inspections

Overview

Replaceable Delay Line Transducers are highly damped – providing a broad band signal combined with the delay line for detecting near surface flaws or precision thickness gauging.

Features

  • Replaceable delay lines extend transducer life
  • Excellent near-surface resolution
  • Mitigation of ring-down effect

Applications

Cobra Replaceable Delay Line Transducers provide good near surface resolution and extended life when scanning materials with  rough and abrasive surfaces, such as casting and forgings.

Delay lines are easily replaced allowing the transducer to be used for years. Other applications include:

  • Near surface detection of casting defects

  • Freight car wheel inspection

  • Corrosion inspection of ship hulls, tanks and pipelines

Technical Specifications

Model Details

Model Details

Frequency (MHz) Element Diameter (inches) Part #
1.00 0.250 RDR01004
0.500 RDR01008
2.25 0.250 RDR02004
0.500 RDR02008
3.50 0.250 RDR03004
0.500 RDR03008
5.00 0.250 RDR05004
0.500 RDR05008
7.50 0.250 RDR07004
0.500 RDR07008
10.00 0.250 RDR10004
0.500 RDR10008
15.00 0.125 RDR15002
0.250 RDR15004
20.00 0.125 RDR20002
Replacement Delays

Replacement Delays

Diameter 0.350" Delay Length 0.500" Delay Length
0.250" DL250 DL250-0.5
0.500" N/A DL500

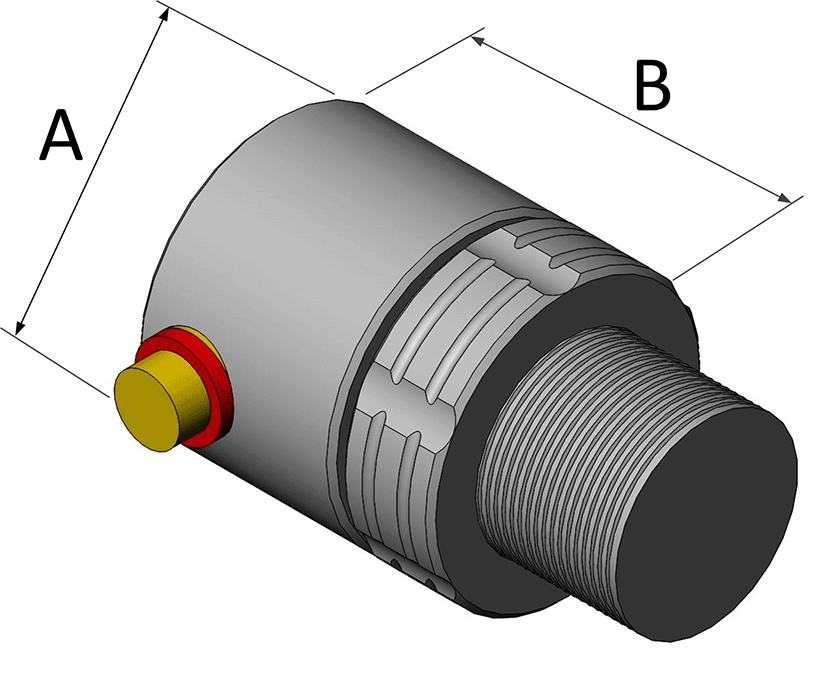

Housing Dimensions

Housing Dimensions

Element Diameter A B
0.250" 0.440" 0.663"
0.500" 0.790" 0.850"



Description Part # Saved Price Select Option Add to

1.00 & 2.25MHz Transducers
Cobra Replaceable Delay Line Transducer - 1.00 MHz (select Diameter)
Model #
UT-COBR-RDR01004M
Request Pricing
Cobra Replaceable Delay Line Transducer - 2.25 MHz (select Diameter)
Model #
UT-COBR-RDR02004M
Request Pricing

3.50 & 5.00MHz Transducers
Cobra Replaceable Delay Line Transducer - 3.50 MHz (select Diameter)
Model #
UT-COBR-RDR03004M
Request Pricing
Cobra Replaceable Delay Line Transducer - 5.00 MHz (select Diameter)
Model #
UT-COBR-RDR05004M
Request Pricing

7.50 & 10.00MHz Transducers
Cobra Replaceable Delay Line Transducer - 7.50 MHz (select Diameter)
Model #
UT-COBR-RDR07004M
Request Pricing
Cobra Replaceable Delay Line Transducer - 10.00 MHz (select Diameter)
Model #
UT-COBR-RDR10004M
Request Pricing

15.00 & 20.00MHz Transducers
Cobra Replaceable Delay Line Transducer - 15.00 MHz (select Diameter)
Model #
UT-COBR-RDR15002M
Request Pricing
Cobra Replaceable Delay Line Transducer - 20.00 MHz - 0.125" UT-COBR-RDR20002
Request Pricing

Replacement Delays
Cobra Replacement Delay - 0.250" Diameter (Choose Delay Length)
Model #
UT-COBR-DL250M
Request Pricing
Cobra Replacement Delay - 0.500" Diameter, 0.500" Delay Length UT-COBR-DL500
Request Pricing
