Cobra Dual Replaceable Delay Line Transducers

Cobra Dual Replaceable Delay Line Transducers

Extend Transducer Life and Increase Resolution For Inspections

Overview

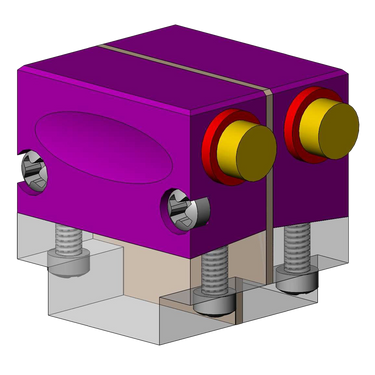

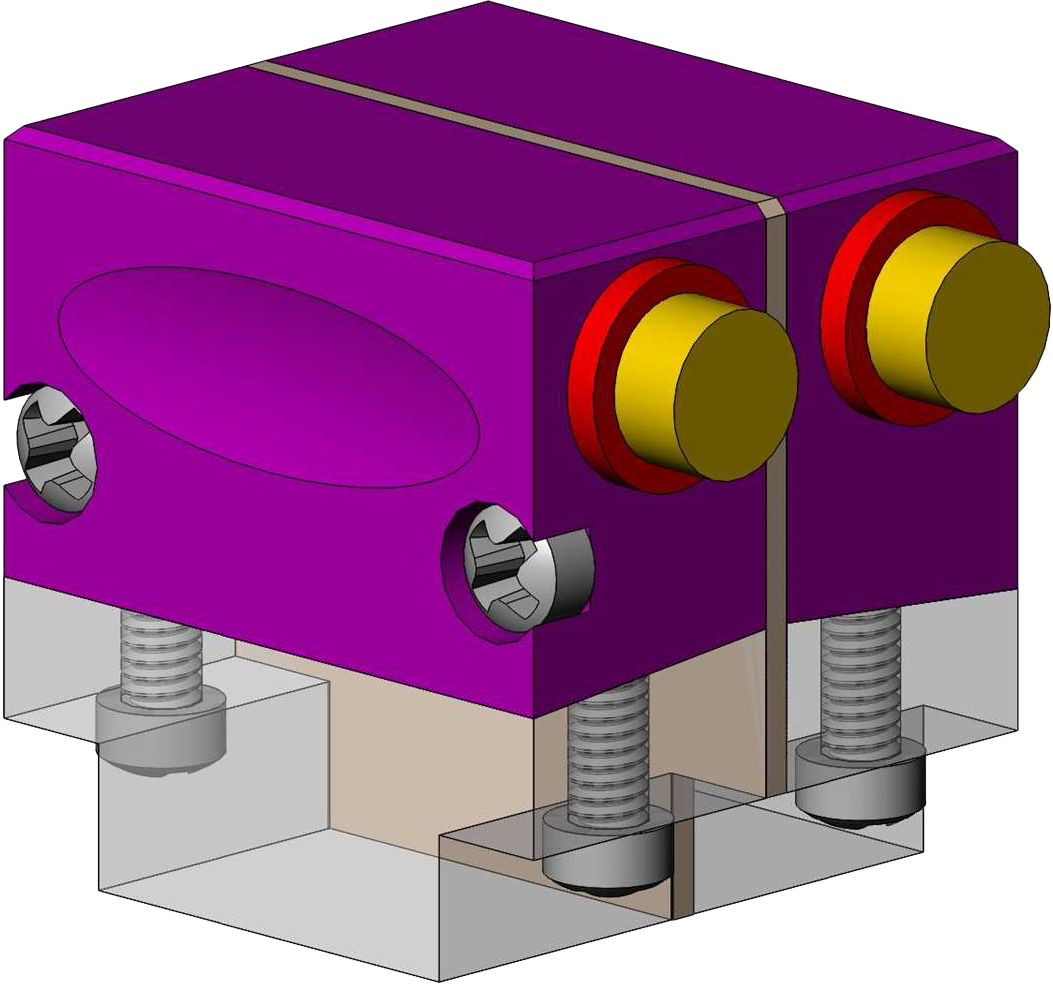

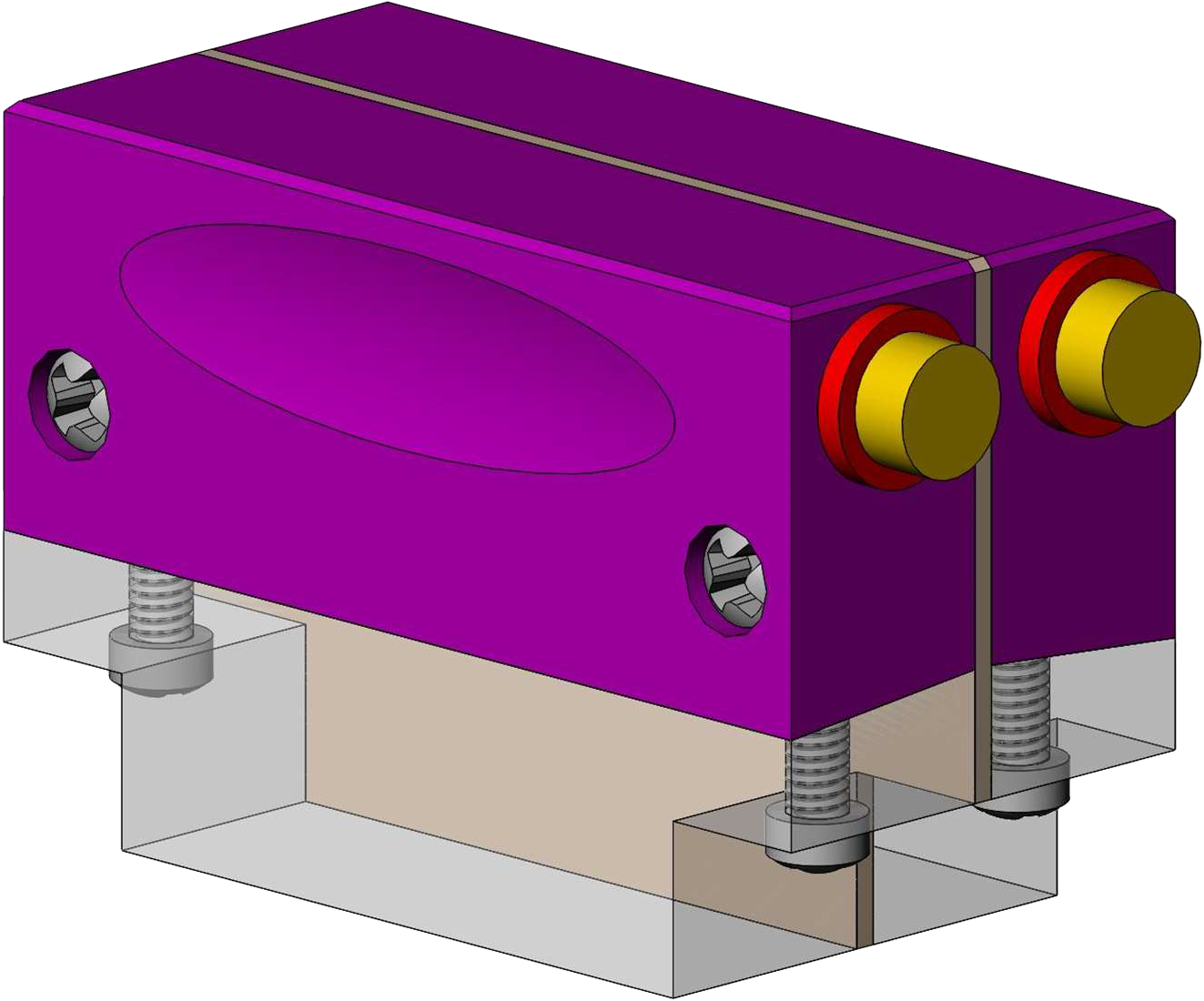

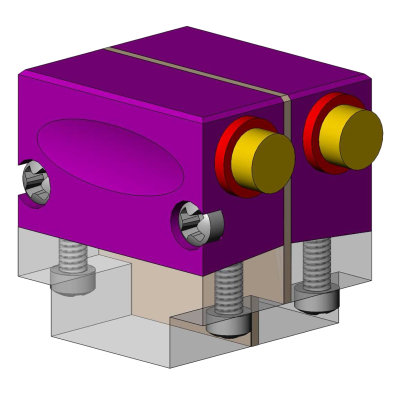

Dual Replaceable Delay Line Transducers are suited for larger area scanning areas in high-wear applications where replacement delays extend the life of the transducer. Optional High Temperature Delays allow for intermittent use up to 400°F (204°C).

Features

  • Replaceable delay lines extend transducer life
  • High Temperature delay lines available for inspections on parts up to 400°F (204°C)
  • Excellent near-surface resolution
  • Mitigation of ring-down effect

Applications

Cobra Dual Replaceable Delay Line Transducers provide good near surface resolution and extended life when scanning materials with rough and abrasive surfaces, such as castings and forgings. Available in three versions:

Version Benefit
High Gain Better penetration in highly attenuative or coarse grained materials
High Resolution Best signal to noise ratio
General Purpose Balanced penetration and signal quality

One major application is the scanning of in-service freight car wheels for shelling under the wheel tread.

Delay lines are easily replaced allowing the transducer to be used for years. Other applications include:

  • Near surface detection of casting defects

  • Freight car wheel inspection

  • Corrosion inspection of ship hulls, tanks and pipelines

  • High Temperature Parts (for intermittent use up to 400°F (204°C))

Technical Specifications

Model Details

Model Details

Frequency Style 0.50" x 0.50" 0.50" x 1.00"
1 General Purpose DGR0100808 DGR0100816
High Resolution DRR0100808 DRR0100816
High Gain DPR0100808 DPR0100816
2.25 General Purpose DGR0200808 DGR0200816
High Resolution DRR0200808 DRR0200816
High Gain DPR0200808 DPR0200816
3.5 General Purpose DGR0300808 DGR0300816
High Resolution DRR0300808 DRR0300816
High Gain DPR0300808 DPR0300816
5 General Purpose DGR0500808 DGR0500816
High Resolution DRR0500808 DRR0500816
High Gain DPR0500808 DPR0500816
Replacement Delays

Replacement Delays - Standard

Element Size Model Number
0.50" x .50" DR0808
0.50" x 1.00" DR0816

Replacement Delays - High Temp.

Element Size Model Number
0.50" x .50" DR0808HT
0.50" x 1.00" DR0816HT

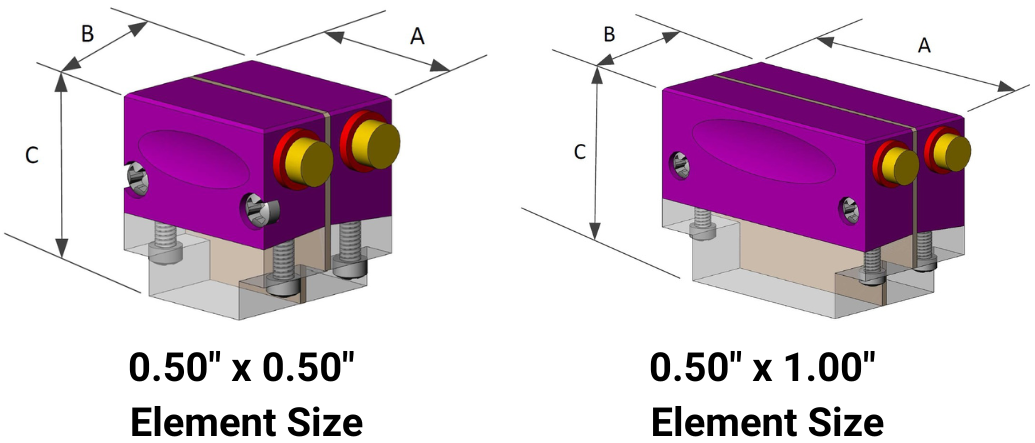

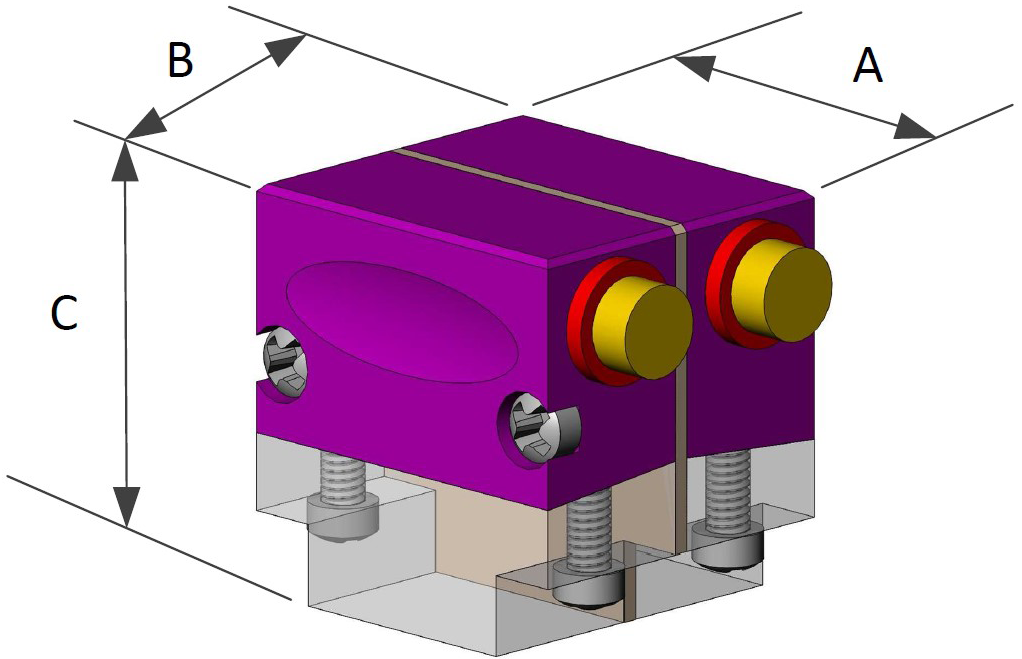

Housing Dimensions

Housing Dimensions

Element Size A B C
0.50" x .50" 0.80" 0.73" 0.82"
0.50" x 1.00" 1.50" 0.73" 1.00"



Product Literature

Description Part # Saved Price Select Option Add to
Cobra Dual Replaceable Delay Line Transducer - 1MHz (select Size, Style)
Model #
UT-COBR-DRP0100808M
Request Pricing
Cobra Dual Replaceable Delay Line Transducer - 2.25MHz (select Size, Style)
Model #
UT-COBR-DRP0200808M
Request Pricing
Cobra Dual Replaceable Delay Line Transducer - 3.5MHz (select Size, Style)
Model #
UT-COBR-DRP0300808M
Request Pricing
Cobra Dual Replaceable Delay Line Transducer - 5MHz (select Size, Style)
Model #
UT-COBR-DRP0500808M
Request Pricing
Cobra Dual Standard Delay for Dual Replaceable Delay Line Transducer - Supplied as kit with 2 delays and 1 barrier - (select Size; Standard or High Temp)
Model #
UT-COBR-DR0808M
Request Pricing
