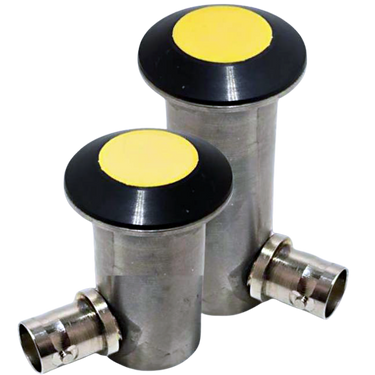

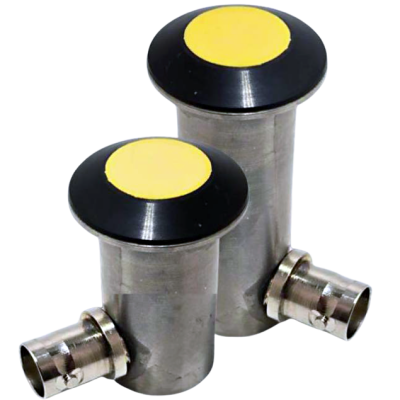

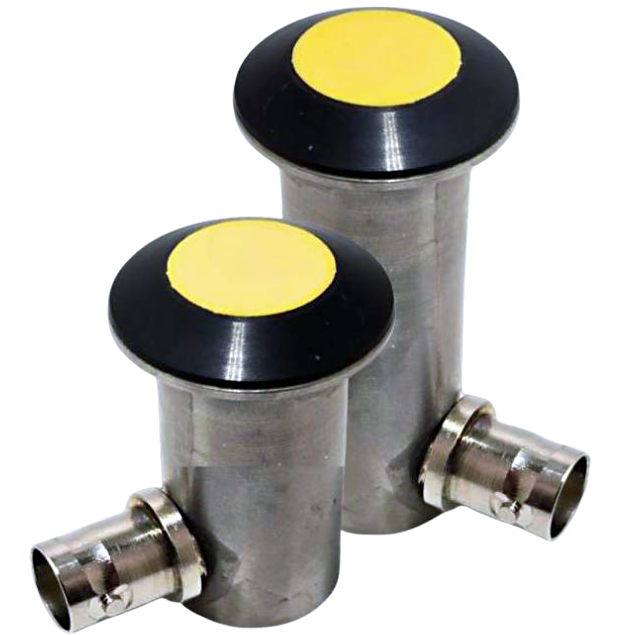

Low Frequency Dry Contact Transducers

Low Frequency Transducers For Direct Dry Contact Inspection Without Liquid Couplants

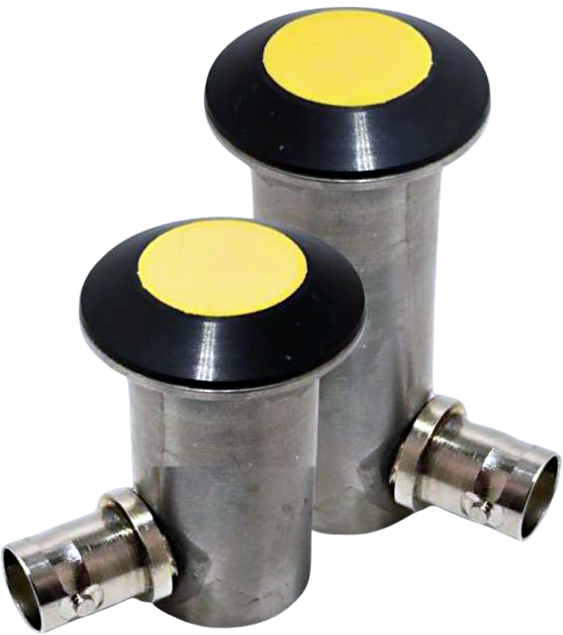

Overview

Low frequency transducers designed for use in direct dry contact with the test material, without a liquid coupling medium. Ultran's low-frequency UT dry coupling probes are manufactured with Ultran's patented GMP™ piezo-composite and come with side-mount BNC connectors. Originally developed for composite materials, these probes have been successfully applied to plastics, ceramics, woods, rubbers, and metals, and are ideally used when liquid couplants are not allowed or are a nuisance. Additional diameters, connectors, or other features are available upon request.

Features

Low-frequency models available from 200 kHz to 500 kHz
Active diameters from 13 mm to 100 mm for both spot inspection and broad coverage
Manufactured with Ultran's patented gas matrix piezo-composite (GMP™) for high sensitivity and bandwidth
Direct dry contact operation eliminates the need for liquid couplants

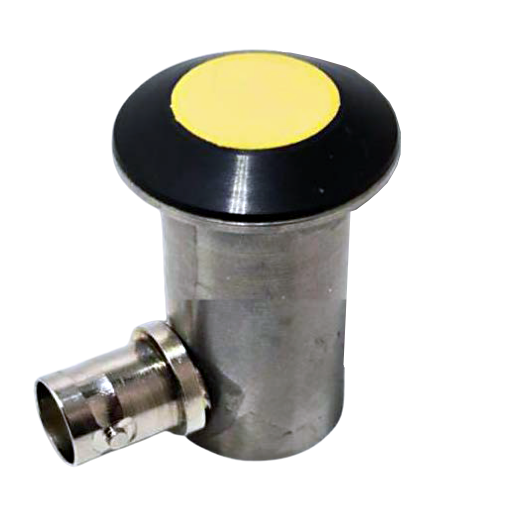

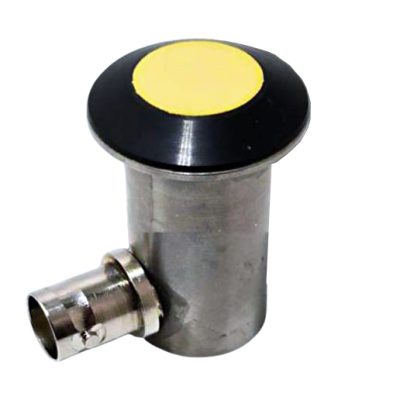

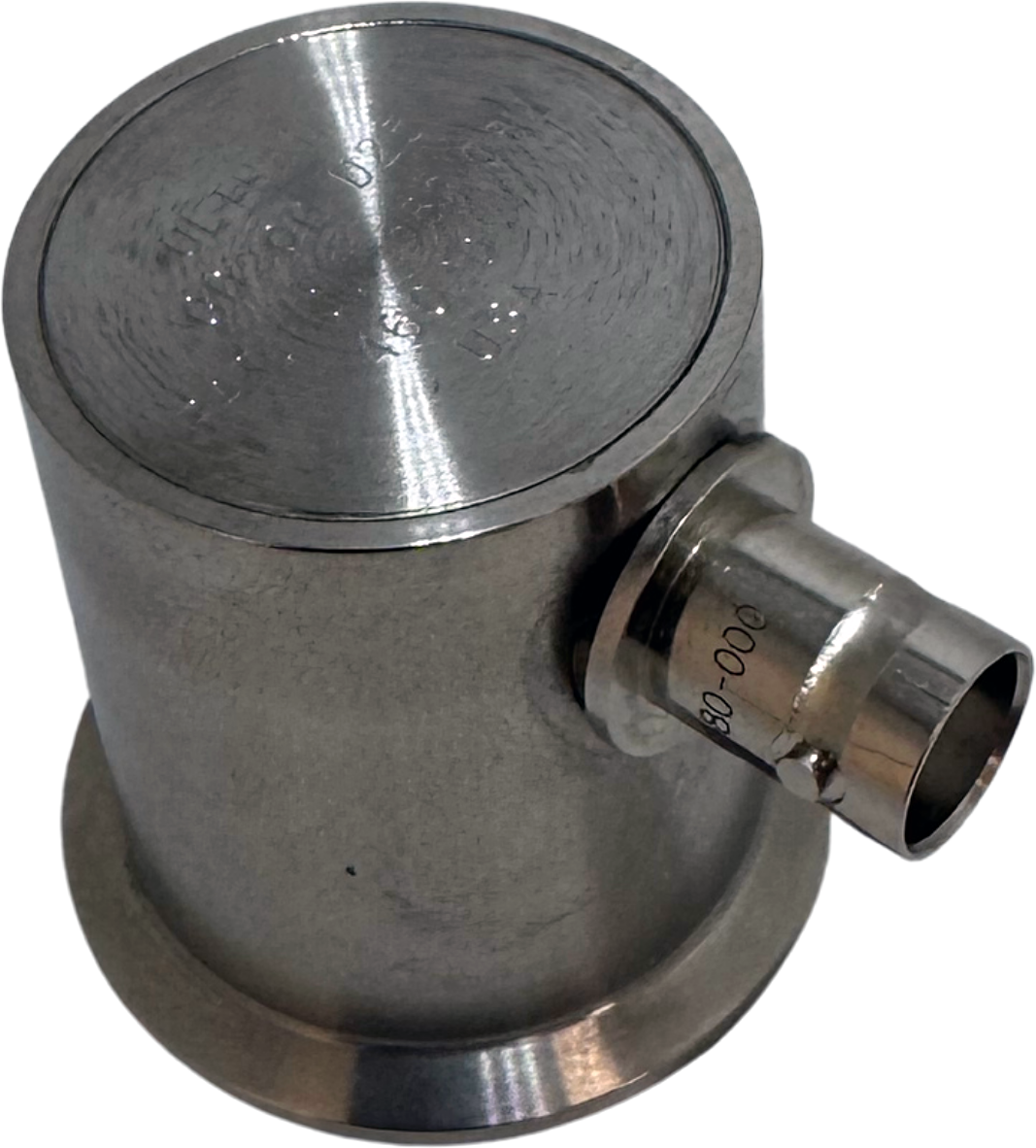

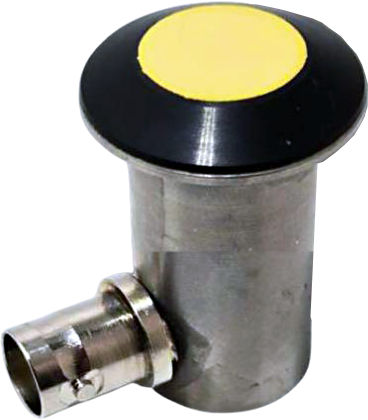

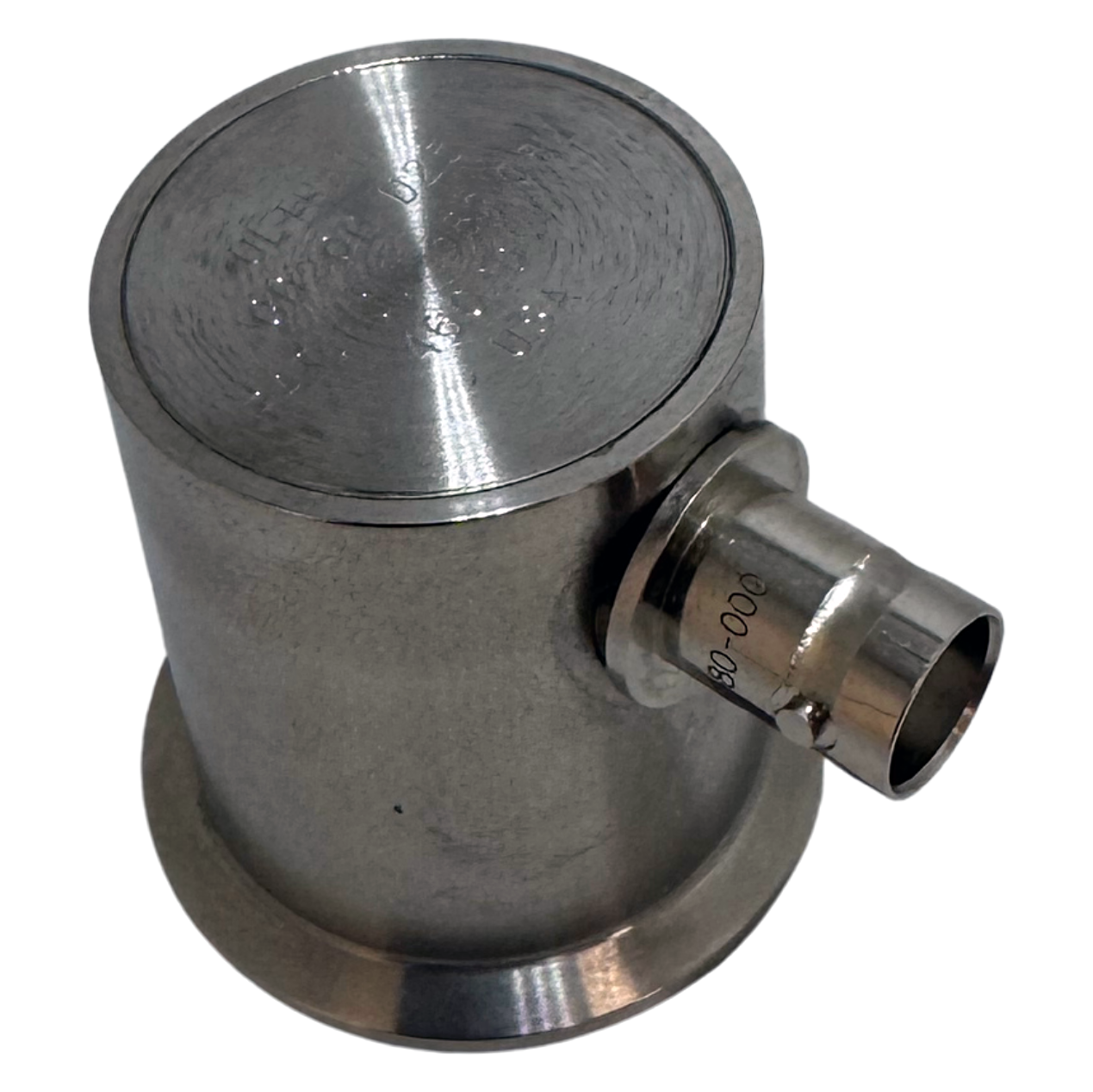

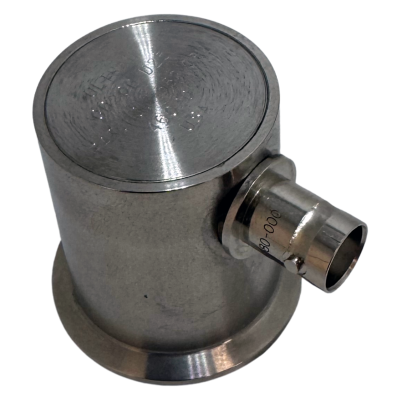

Corrosion-resistant stainless steel housings with side-mount BNC connectors standard

Dry Contact Transducers

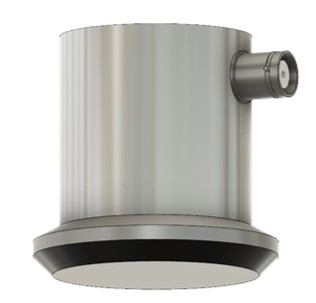

Design:	*Round, Direct Dry Contact*
Frequency Range:	200 kHz to 500 kHz
Active Surface Area:	0.51 - 3.94" (13 - 100 mm)

Applications

Ideal for inspection scenarios where liquid couplants are prohibited or impractical
Originally developed for composite materials and widely used in composite inspection
Successfully applied to plastics, ceramics, woods, rubbers, and metals
Suitable for both production-line and field inspection without surface preparation for couplant
Capable of defect detection and non-destructive material characterization
