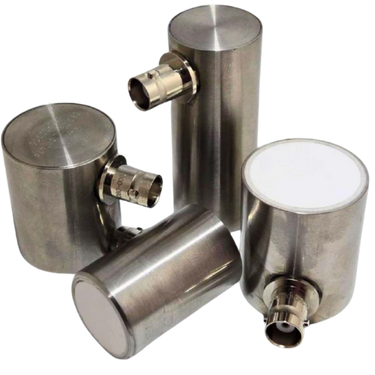

Low Frequency Direct Contact Transducers

Low Frequency Transducers For Direct Contact Inspection With High Endurance Wear Plates

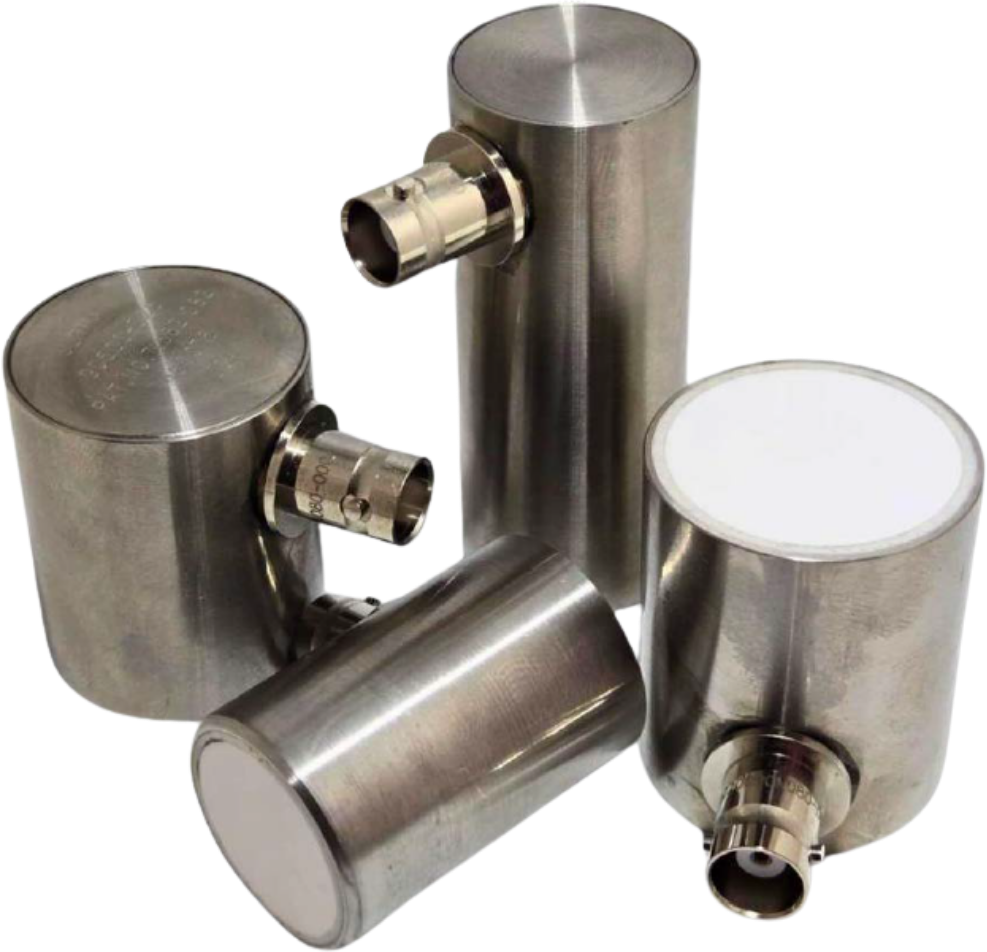

Overview

Low frequency transducers with Ultran's proprietary gas matrix piezo-composite (GMP™) for high sensitivity and bandwidth. Designed for use in direct contact with the material surface, these probes deliver reliable performance in standard contact ultrasonic testing applications. Additional diameters, connectors, or other features are available upon request.

Features

Wide range of low-frequency models available from 30 kHz to 500 kHz
Active diameters from 13 mm to 100 mm for both spot inspection and broad coverage
Manufactured with Ultran's patented gas matrix piezo-composite (GMP™) for high sensitivity and bandwidth
High-endurance wear plate protects the active element and extends service life in contact use

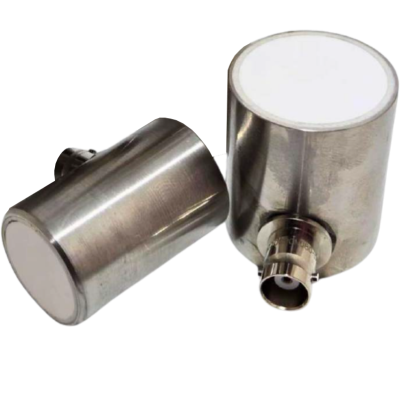

Corrosion-resistant stainless steel housings with side-mount BNC connectors standard

Direct Contact Transducers

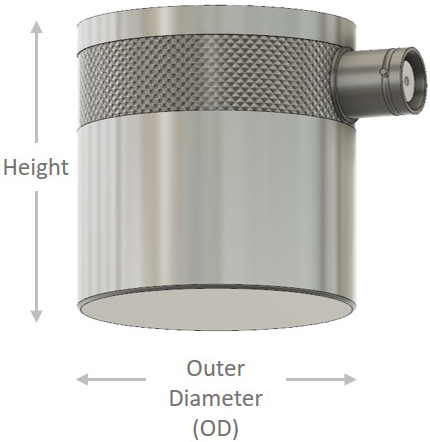

Design:	*Round, Direct Contact with Wear Plate*
Frequency Range:	30 kHz to 500 kHz
Active Surface Area:	0.51 - 3.94" (13 - 100 mm)

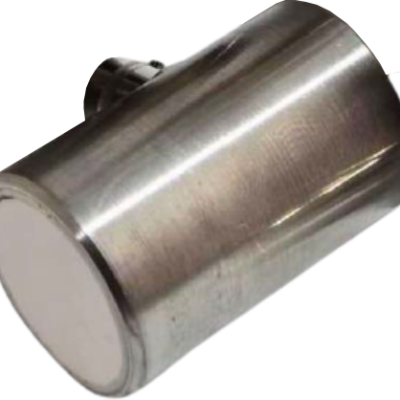

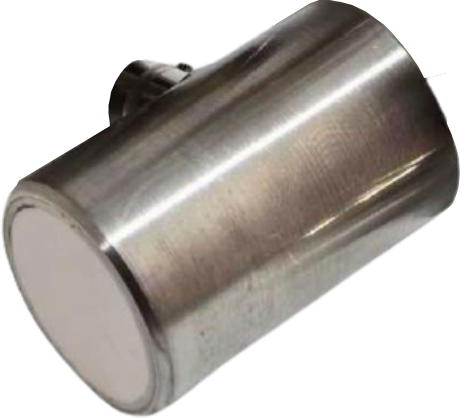

Applications

Standard contact ultrasonic testing of solids using conventional liquid couplants
Inspection of composites, plastics, ceramics, rubbers, woods, and metals
Thickness gauging and flaw detection in production and field environments
Durable wear plate makes the probes well-suited to repeated contact use and rough surfaces
Capable of defect detection and non-destructive material characterization
