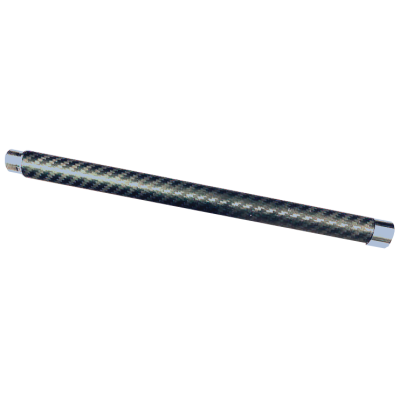

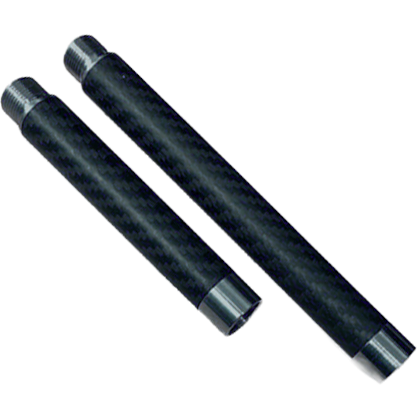

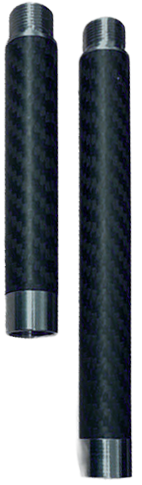

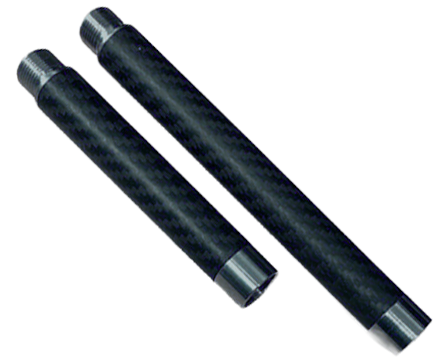

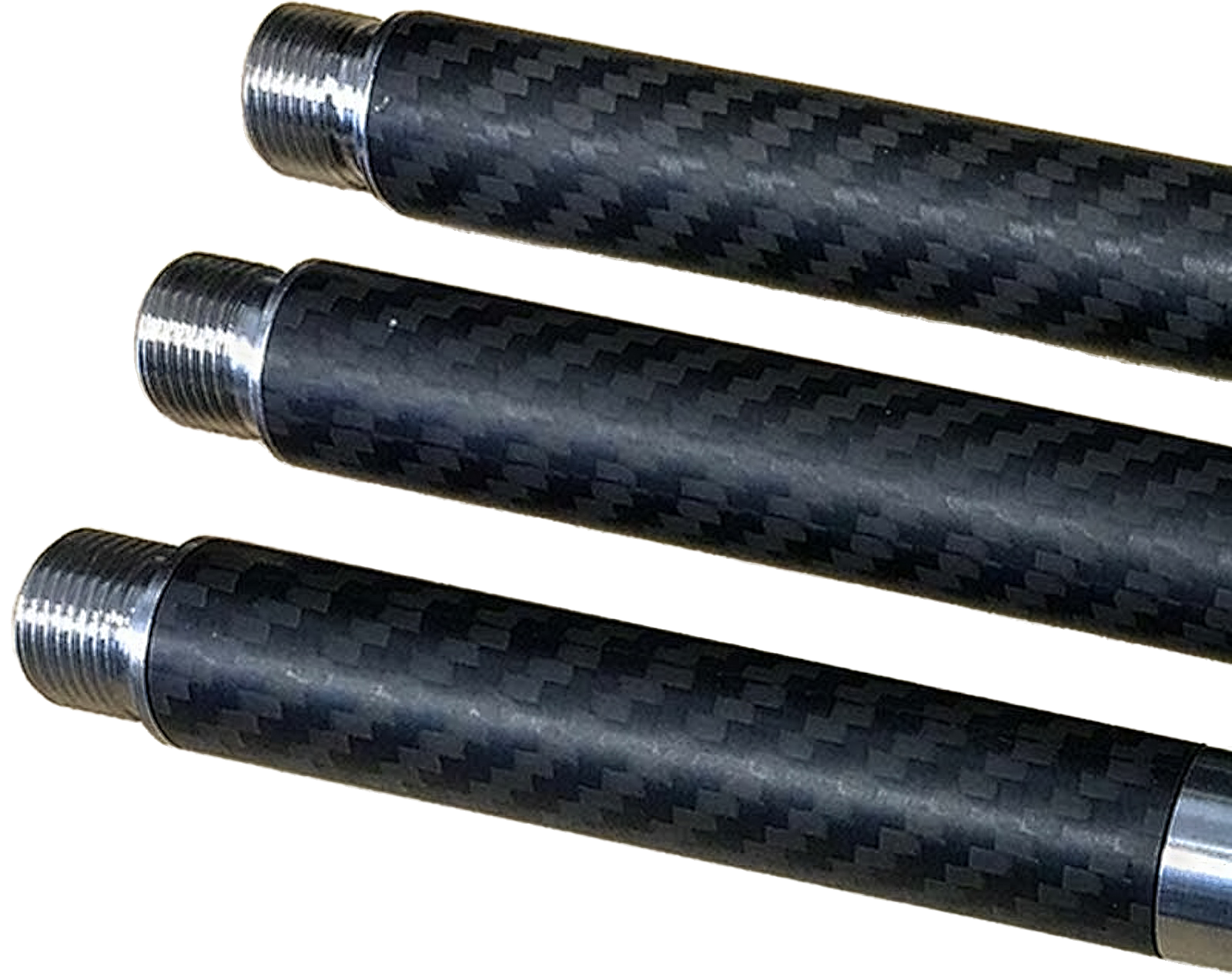

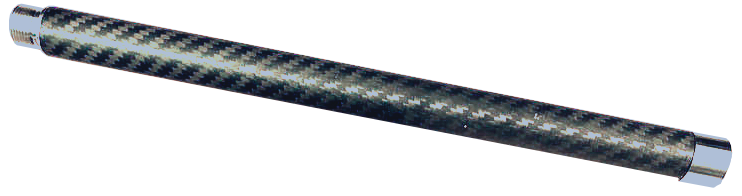

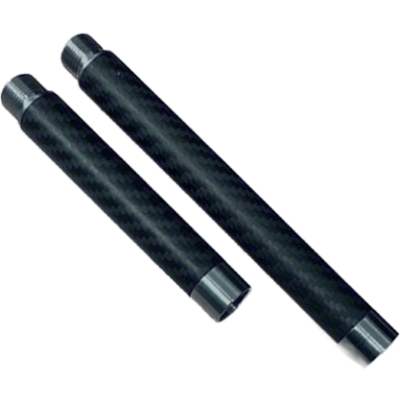

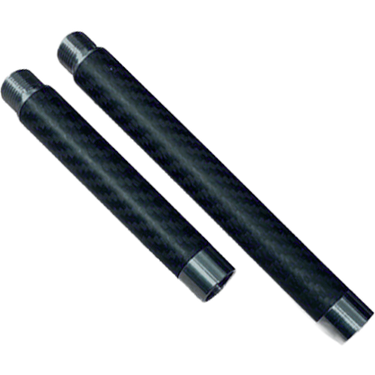

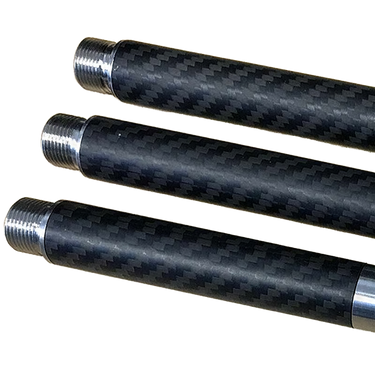

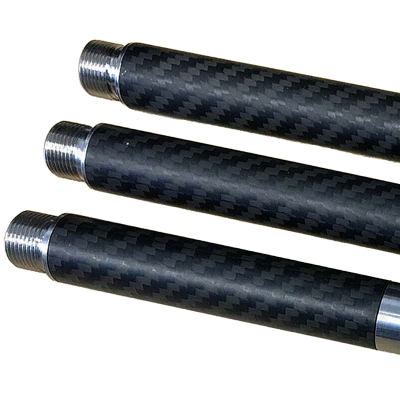

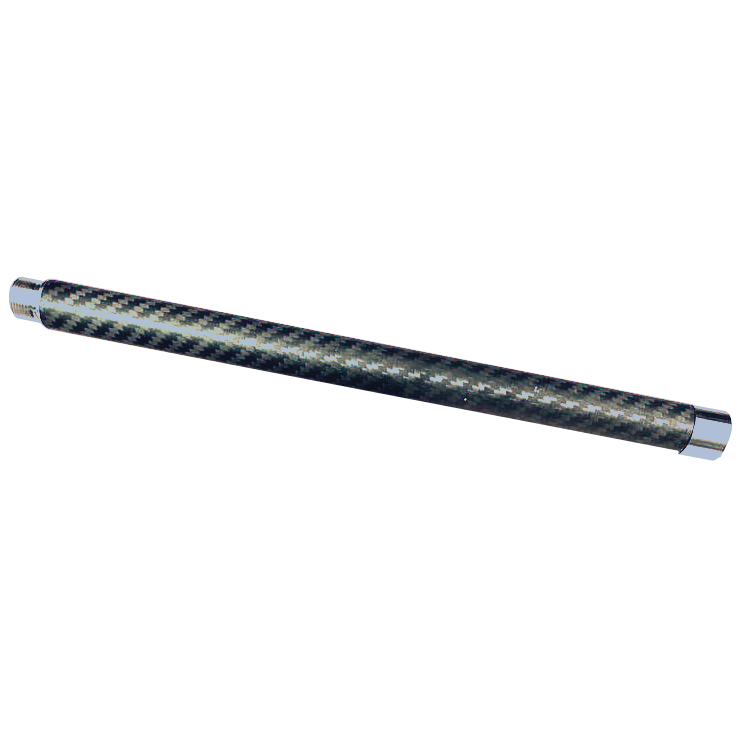

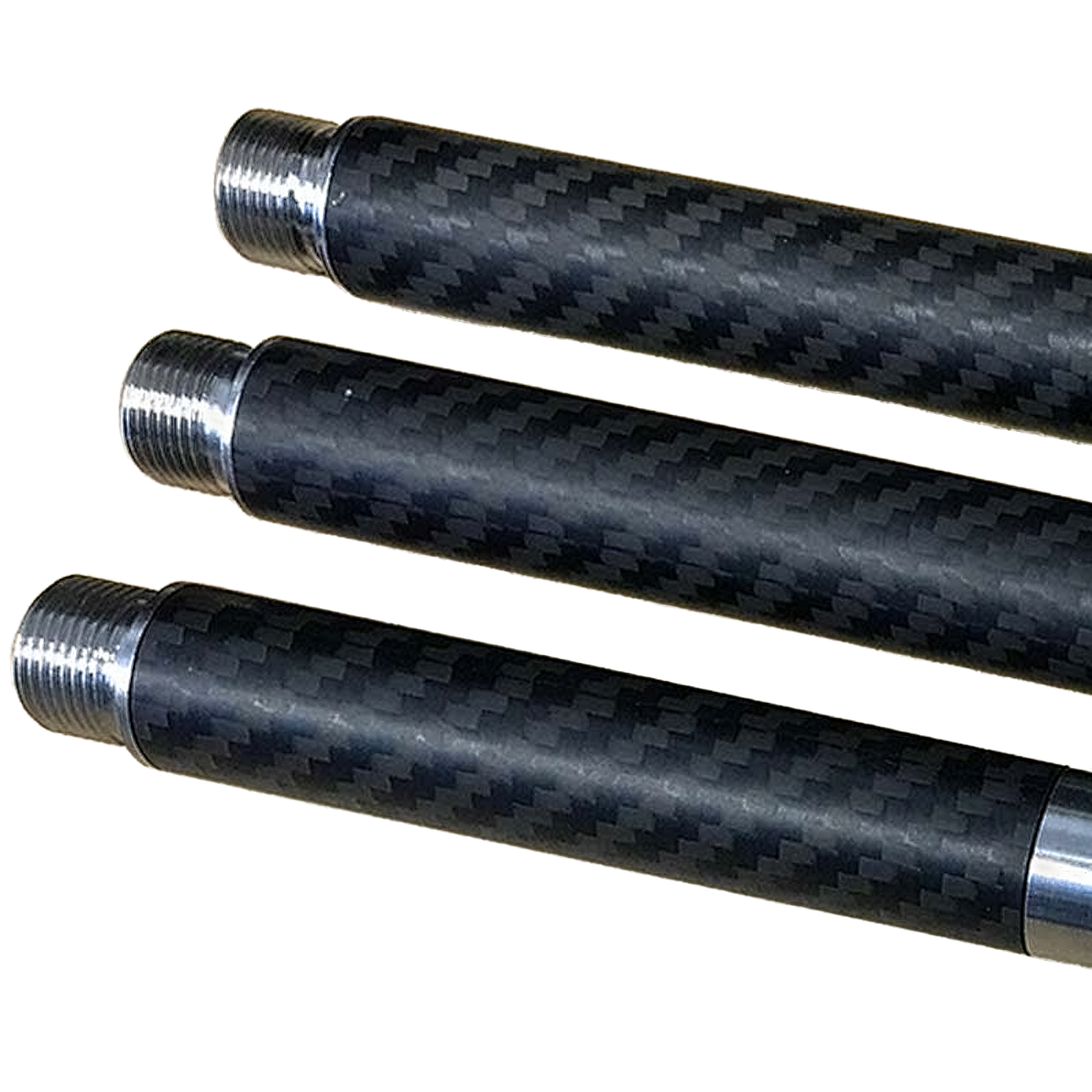

Search Tubes are lightweight, composite tubes that attach to ultrasonic manipulators. Their carbon fiber/ epoxy construction means less mass to move on a system or for a user to hold.
The Carbon Search Tubes are come in the following standard sizes:
2, 3, 4, 5, 6, 7, 10 ,12 ,18 , and 24 inch lengths with a standard outer diameters of 0.737 inches.
Custom lengths are available, and made to order. Click here to inquire about custom lengths, or see the UT-COBR-CSTCustom option in purchasing.

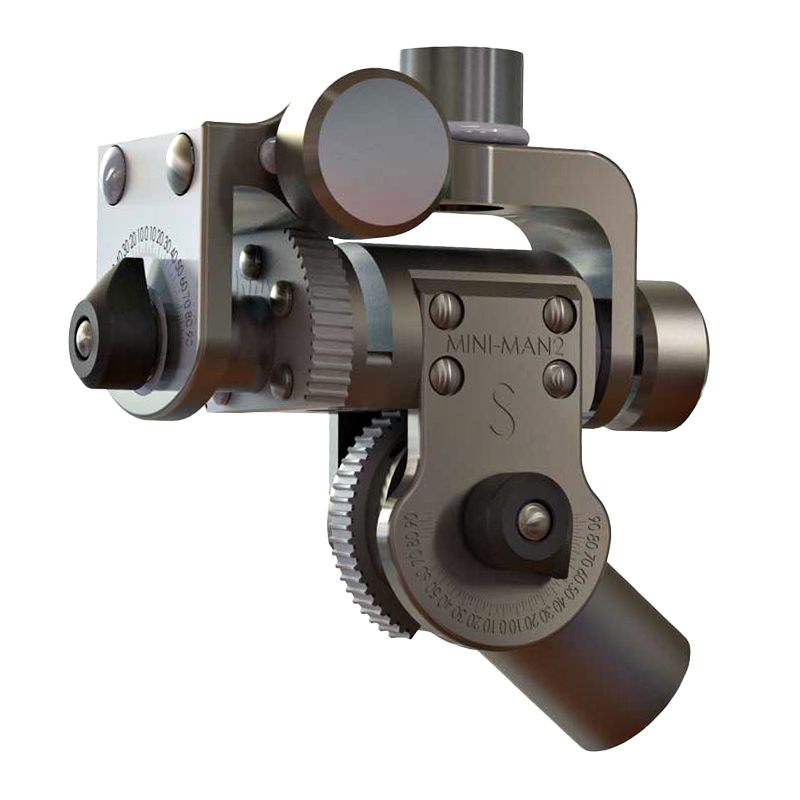

Ultrasonic Manipulators are attached via the Search Tubes UHF Wand connection; UHF to BNC Adapters available upon request.
| Technical Specifications | |
| Material: | Unidirectional Carbon Fiber / Epoxy makeup |
| Connector Type: | UHF (UHF to BNC Adapter available upon request) |
| Standard Lengths: | 2" (5.1 cm), 3" (7.6 cm), 4" (10.2 cm), 5" (12.7 cm), 6" (15.2 cm), 7" (17.8 cm), 10" (25.4 cm), 12" (30.5 cm), 18" (45.7 cm), and 24" (61.0 cm) |
| Outer Diameter: | 0.737" (18.7 mm) |
| Description | Part # | Saved | Price | Select Option | Add to |
|---|---|---|---|---|---|
|
Composite Search Tube | 0.737" Outer Diameter - (Select Length)
Model #
|
UT-COBR-CST |
|
Request Pricing | ||
| Custom Length Composite Search Tube | 0.737" Outer Diameter - (Please Enter Desired Length and Units in Comments When Requesting) | UT-COBR-CSTCustom |
|
Request Pricing | ||
