URM 360 Ultrasonic Immersion Testing Line

URM 360 Ultrasonic Immersion Testing Line

Internal Defect Detection in Ring Bearings in Accordance with the EN 12080 Standard

Overview

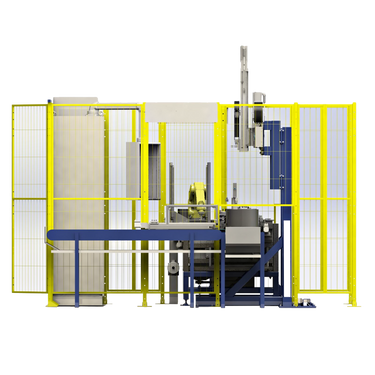

The URM 360 is a fully automated ultrasonic testing line for bearing rings. The line uses an immersion method and is capable of sensing internal defects of bearing rings according to EN 12080 standard.

Features

  • Ultrasonic testing in accordance with the EN 12080 standard
  • Cylindrical, tapered and spherical roller bearing ring tested via ultrasonic pulse echo technique
  • Sensitivity of 0.5 mm FBH located 0.5 mm below the raceway
  • Fully automated ultrasonic inspection and evaluation system
  • The possible dimensions of the tested part are from 110 mm inner diameter and up to 360 mm outer diameter

Technical Specifications

Technical Specifications

URM 360 Ultrasonic Immersion Testing Line
Diameter Tolerances:

min. 4.3" (110 mm) inner diameter

max. 14.2" (360 mm) outer diameter
Depth of testing: max. 0.65" (16.5 mm)
Maximum load on conveyors: 45 kg/m
Maximum load on the manipulator: 35.3lbs (16 kg)
Voltage system: 3+N+PE 400V/230V 50-60 Hz
Maximum electrical input power: 35 kW
Rated current: 50 A
Pressure air supply: from 4 bar to 6 bar
Nominal air pressure: 6 bar
