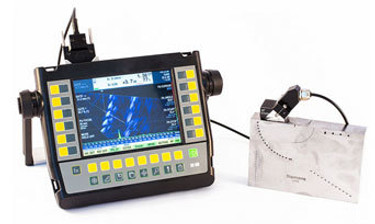

Defectobook® DIO 1000 PA
Portable Phased Array Ultrasonic Flaw Detector

starmans-defectobook-dio-1000-pa

Best Value

Most Features

Low Cost

High Quality

Made in Europe


The Defectobook® DIO 1000 PA Ultrasonic Flaw Detector combines features of conventional ultrasonic with the power of Phased Array.

Using the latest generation of electronic components and microprocessors, Starmans has created the thinnest, lightest portable phased array instrument, which makes your inspection quick and easy. The standard has 16 parallel channels.

The DEFECTOBOOK® DIO 1000 PA complies with all common standards such as EN12688-1, ASME Code case 2541, ASTM E2491 and ASTM E2700. The instrument also combines the powerful advantages of digital design with detailed dynamic echo information, using a sampling rate of 200 MHz, 12-bit.

starmans-defectobook-dio-1000-pa-no-block starmans-defectobook-dio-1000-pa-dynamic-echo-graph


Advantages of DIO 1000 PA:

  • Thinnest Phased Array Instrument
  • Weighs only 2.9 lbs. (1.3 kg) with battery
  • Battery operating time is up to 10 hours
  • Lots of capabilities (A-Scan, B-Scan, C-Scan, Weld Manager, EMAT, TOFD)


Environmental Test:

  • Tests for Damp heat / Humidity as per norms EN 600-2-78:02; EN 60068-1
  • Vibration tests as per norm EN 60068-2-6 ed 2:08
  • Shock tests as per norm EN 60068-2-29:1996+Z1:10

starmans-defectobook-dio-1000-pa

Specifications:

Display: Color TFT sunlight, 1024(w) x 768(h)
Display Update Rate: Minimum 60 Hz
Display Dimensions: 4" x 5.2" (99 x 130 mm)
Focal Law Quantity: 512 (1024)
Synchronization: Outside synchronization, echo start
Operating Temperature: 14°F - 122°F (-10°C - 50°C)
Storage Temperature: -40°F - 158°F (-40°C - 70°C)
Battery Operating Time: Up to 10 hours
Memory: 4 - 16 GB (up to 40000 A-Scans)
Dimensions: 9" x 7.5" x 1.4" (224 x 188 x 34 mm)
Weight: 1.6 lbs. (0.74 kg) including battery
Warranty: 2 years standard


starmans-defectobook-dio-1000-pa-no-block

Thinnest / Lightest PA Instrument Complete Connectivity
starmans-defectobook-dio-1000-pa-thinnest
starmans-defectobook-dio-1000-pa-complete-connectivity

Rail Axel Testing
starmans-defectobook-dio-1000-pa-rail-axel-testing


Defectobook DIO 1000 PA Kit Includes:

  • DIO 1000 PA Ultrasonic Flaw Detector
  • Certificate
  • USB Flash Disk 2GB - Operation Manual
  • Aluminum case with strap
  • Soft cover with strap
  • Li-ion Battery for DIO 1000 (in device)
  • Power Supply for DIO 1000 (AC 80V - 240V / 50 - 60 Hz) with USB Cable
  • Phased Array Transducer PPA 4L16W-1610
  • Transducer Wedge WPA 36°-1610
  • Lemo 1 - Lemo 00 Cable
  • USB Cable for DIO 1000

starmans-defectobook-dio-1000-pa-kit

Description Part # Saved Price Select Option Add to
Starmans Defectobook DIO 1000 PA Portable Phased Array Ultrasonic Flaw Detector UT-STAR-DIO-1000-PA $13,000.00
