SIUI Supor Phased Array & TOFD Ultrasonic Flaw Detector

siui-supor-logo

siui-supor

supor-blue

In a continuous pursuit of excellence, SIUI releases the SUPOR Phased Array and TOFD Ultrasonic Flaw Detector.

SIUI-SUPOR-3-IMAGES

The New generation of ultrasonic flaw detectors from SIUI come with a modular design and more powerful functions. The SUPOR represents the persistent fine tradition of SIUI: innovative technology, advanced processes, small size, lightweight, powerful functions and easy operation.

SUPOR-blue-line-break

SUPOR-Features Superior Features:
  • Grouping Scan: It can be divided into up to six groups for one PAUT Probe for different inspections.
  • Supports two PAUT probes working simultaneously with grouping function.

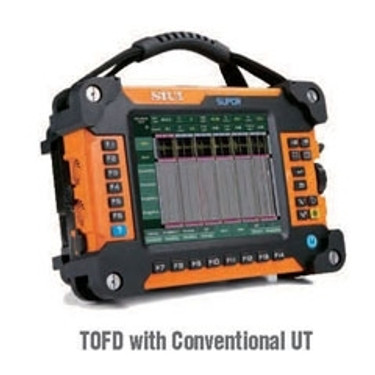

  • Modular design: Phased array module (16/32 channels), Phased array + TOFD module, Multi-channel TOFD module or conventional UT module...
  • Simultaneous Inspection of PA & TOFD
  • TKY software (optional)
  • Velocity, Sensitivity, Delay, TCG calibration
  • Weld simulation
  • Scan setup wizard
  • Real time A/B/C/D scan
  • 8.4" touch screen LCD with resolution of 800 x 600 pixels.

*Specific functions are subject to final order.

SIUI-SUPOR-Modular-Design

SUPOR-Modular-Design

SUPOR-Modular-Design

Features of Phased Array Module

  • 16/32 channels for selection
  • Bipolar transmit square wave, adjustable transmit voltage and pulse width.
  • Continuous receive dynamic focusing
  • Multiple view display modes
  • Data Analysis: image gate dynamic reconstruction
SUPOR-Phased-Array-Module


Features of TOFD Module

  • Multi-channel TOFD function with 2/4/6 channels for selection
  • 0.5MHz - 2.0MHz band width
  • Negative square wave transmit pulse, adjustable transmit voltage and pulse width
  • Data Analysis: Lateral Wave / Bottom Wave Straightening, Lateral Wave / Bottom Wave Filtering, Contrast, Correction, Gain Correction, Flaw Height and Length Measurement
SUPOR-TOFD-Module


SUPOR-Multi-Group-Scanning

SUPOR-Multi-Group-Scanning

SUPOR-Line-Break

SUPOR-weld-inspection

SUPOR-Scan-Setup-Wizard

SUPOR-Velocity-Calibration

  • Smart Wizard, which can guide users to finish imaging setup easily and improve inspection speed
  • Calibration wizard is to calibrate key performance parameters of phased-array including velocity, delay, sensitivity and TCG
  • The step-by-step menu guides users to perform all the calibration procedures easily
SUPOR-Calibrations

SUPOR-Line-Break

SUPOR-Management

  • Easy-to-use interface makes the workpiece, probe, wedge, encoder and storage managements more convenient.
  • In the workpiece management, the shape of the workpiece is simulated and detailed parameters are listed for reference.
  • The user may manage the probe and wedge parameters via probe and wedge management.
  • Follow the wizard, users can finish encoder simple operation, calibration and test quickly.
  • Parameters, screenshot and data can easily managed in storage management to enhance inspection efficiency.

SUPOR-SuporUp-Software

SuporUp is PC-based software for:

  • Checking data file: Check the phased-array or TOFD files transferred from SUPOR.
  • Measuring data analysis: Measure and analyze the phased array or TOFD files
  • Generating measurement reports: input the file information and the measurement results of phased array or TOFD files to a specific file to generate the test report.

SUPOR-SuporUp-Software-Display

Display Mode:

SuporUp provides several display modes for selection; users can use different display modes during inspection or analysis with flexability. Change the size and position of the region of interest and the software will re-construct C/D scan images automatically.

SUPOR-Display-Modes

Management:

For phased array files, SuporUp can:

  • Perform width, height and rectangle measurements on a phased array B/C/D image.
  • Perform height, sound path, vertical distance and horizontal distance measurements on the A-scan echo.
For TOFD files, SuporUp can:
  • Perform length measurements, straightening, filter, recovery, local zoom, SAFT, contrast adjustment and gain post processing on the TOFD image.


Reporting:

Detection echoes, curves or parameters may be stored to SuporUp, facilitating report editing and data management. Screenshot and detailed info can be transferred to Microsoft Word for customized reporting. The user can add company logos and inspection specific information including all relevant inspection settings to make a full report. SUPOR-Reporting

SUPOR-TKY-Software

SUPOR-TKY-Software-Introduction

SUPOR-TKY-Software

SUPOR-TKY-Software-On-Site-Application

SUPOR-Typical-Applications

SUPOR-Typical-Applications

SUPOR is designed to increase productivity in various inspection situations. It is suitable for inspection of flaw position and size, which can be widely used for various detection demands such as weld inspection, gas pressure welding on rail, pressure vessel inspection, stainless steel and PE pipe inspection.

SUPOR-Corrosion-Inspection

SUPOR-Copper-Bar-Inspection

SUOR-Weld&TOFD-Inspection


Description Part # Saved Price Select Option Add to
Supor Phased Array & TOFD Ultrasonic Flaw Detector UT-SIUI-SUPOR Request Pricing
