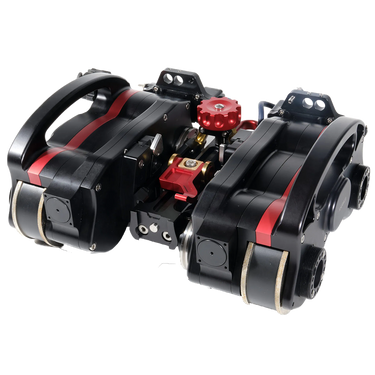

ScanTech Apex Modular Universal Scanner

One Scanner for all your Job Requirements

Portable, Reliable & Versatile

The Apex Scanner is a modular, universal scanning platform designed for high-precision and versatile scanning applications. It combines rugged, field-proven components with advanced technology to ensure reliability and portability in various industrial settings. The Apex Scanner boasts compact dimensions with a length of 10.5" x 10.8" x 4.95", making it highly portable. Weighing just 19 lbs., it features robust drive units with speeds up to 36" per second and high torque output. The scanner includes advanced probe mechanisms for increased stability and environmental resistance, ensuring reliable performance in industrial conditions.

Features

Portability and Reliability: Field-proven probe attachments ensure durability and ease of use.
Enhanced Stability: Patented Anti-Tip probe gimbal and near-constant force spring design for superior UT signal return and quality readings.
Environmental Resistance: Proprietary straight line motion probe mechanism with sealed rotary bearings withstands stronger reaction forces and harsh conditions.
Greater Flexibility: Common button type probe mounts fit most PA probes, offering a wide range of probe options.
Improved Rigidity: Rigid probe width adjustment with dovetail lock for enhanced performance in real-world conditions.
STC Distributed, Modular Control System: Minimizes conductors for a lighter umbilical and easy expandability for additional axes or features.

New Mid-Section Body Design: High compliance suspension for better adaptability.
Tool-less Attachment Points: Simplifies wheel angle adjustments for small radii and ensures quick setup and flexibility.
ACR Design: Probe coupling design reduces turbulence and water consumption, with the latest spring design offering near-constant contact force.
Probe Guide Hardware: Ensures reliability and ruggedness in lightweight, modular, multi-probe configurations.
Quick Adjustments: Ensure proper probe contact on pipe surfaces for both circumferential and longitudinal scans.
Anti-Tip Probe Mechanism: Prevents probes from flipping over.

3 Attachment Modules

B-Scan

New Mid-Section Body design with high compliance suspension
Tool-less attachment points and wheel angle adjustment for small radii
Probe coupling incorporates our ACR design for reducing turbulence and water consumption
Our newest spring design offers the most constant contact force over full travel to date.

C-Scan

C-Scan arms are quick-attached for either front mounted or side mounted raster scanning
Lead Screw and Belt Drive configurations are both available
Lead screw raster module allows tool-less Quick-Change of the scan arm for differing lengths, utilizing the same raster motor pack
New Brushless DC Raster motor design with integrated encoder/controller/drive offering high torque and performance in a small assembly

Weld Scan

Suspension Lock mechanisms for better tracking on axial weld inspection applications
Quick Latches provide easy probe spacing and additional height adjustment for the existing high vertical compliance
Rigid Tool free probe width adjustment
Patented Anti-tip mechanism ensures superior probe contact

Applications

Weld Inspections: Ensures precise and reliable weld scanning with minimal turbulence and water consumption.
Corrosion Mapping: Provides accurate and efficient mapping of corrosion in various industrial settings.
General Ultrasonic Testing: Suitable for a broad range of ultrasonic testing applications, including B-Scan, C-Scan, and more.

Technical Specifications

Apex Specifications

Base Scanner Unit
Length:	10.5" (267 mm)
Width (Slim Wheels):	10.8" (271 mm)
Width (Wide Wheels):	12" (305 mm)
Height:	~5" (126 mm)
Weight:	19 lbs. (8.6 kg)
Drive Units
Speed (@ full load):	6 in/sec (153 mm/sec)
Raster Arm (Lead Screw)
Speed (@ full load):	36 in/sec (914 mm/sec)
Raster Arm (Belt Drive)
Speed (@ full load):	30 in/sec (760 mm/sec)
Pipe Inspection Minimum Diameters
Circumferentially w/ Front Raster Arm:	6" OD
Circumferentially w/Side Raster Arm:	3" OD
Axially:	12" OD w/ 9" Inspection Width

Analyst X Software

Automated Reporting: Prints the scan plan and B-Scans with a click of a button.
Overlay Multiple B-Scans: Compare different scans by overlaying them for detailed analysis.
Data Tables: Generate tables showing high, average, and low values for each scan.
Re-Gating Function: Re-gate scan data post-collection to create smooth, clean scan maps.
Statistical Analysis: Perform automated statistical analysis on scan data.
User-Friendly Interface: Easy navigation through setup, analysis, and reporting.
Guided Calibration: Assists users through the calibration process.
Automated Data Acquisition: Streamlines the scanning process.
Adjustable Gain: Modify gain before or during the scan to optimize data return.
Real-Time View: Monitor data in real-time and make adjustments during the scan.
Repositioning: Pause and resume scans seamlessly, with the ability to reposition the scanner.

Analyst XR Software

User-Friendly Interface: Navigate easily through setup, analysis, and reporting.
Calibration Wizard: Guides you through the calibration process for accurate results.
Automated Data Acquisition: Streamlines the scanning process with real-time data monitoring.
Optimize data return with a proprietary curved gate.
Re-Gating Function: Allows re-gating of scan data for a clean and accurate scan after the scan is complete.
3D Corrosion Modeling: Stitch multiple scans together to generate a comprehensive 3D model and export to an external viewer.
Customizable Reports: Create job-specific templates for automated and repeatable reporting.
Export a table of the min, max, and mean thickness of each scan.
Repositioning: Pause and resume scans seamlessly, allowing you to reposition the scanner if an obstruction is encountered, and continue scanning from the new position.

Product Literature

ScanTech-APEX-Brochure.pdf

Description	Part #	Saved	Price	Select Option	Add to
ScanTech Apex Modular, Universal Scanner	RT-SCT-APEX		Request Pricing
