Orbital AUT Weld Scanner

Orbital AUT Weld Scanner

Powerful, Versatile, Automated Weld Scanner

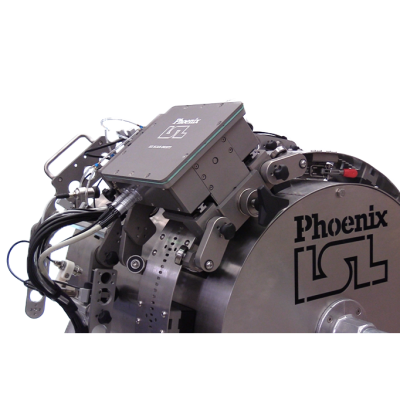

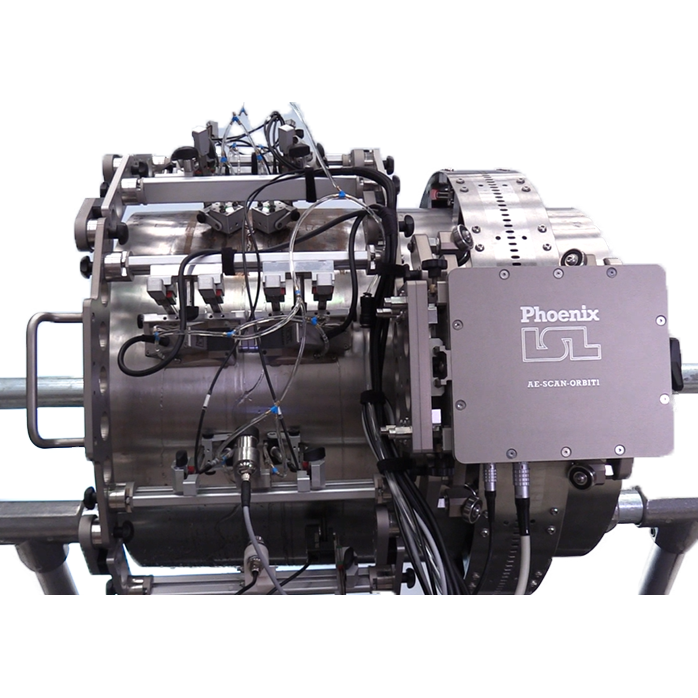

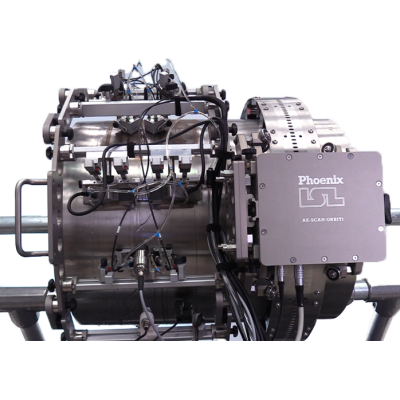

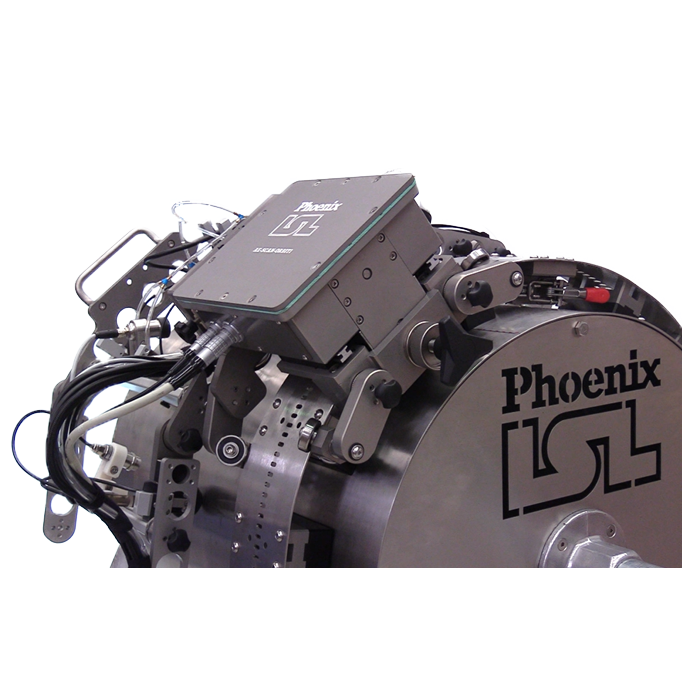

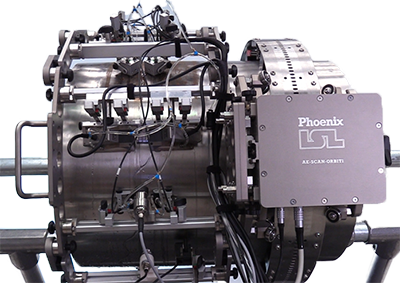

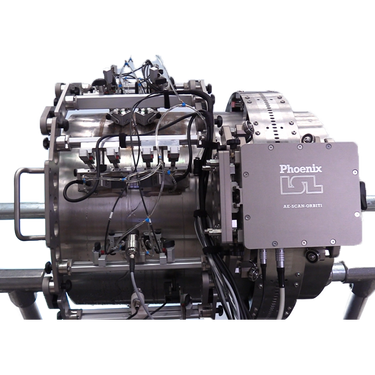

The Orbital is a powerful and versatile flexible track mounted scanner capable of transporting a range of onboard accessories to simplify site inspections. The Orbital comprises an automated carriage with tracks that can adhere to any inspection surface via fully enveloping tension, magnets or vacuum providing versatility with just one scanning solution. The track can be used on pipes on either the outside (10” - Flat) or the inside (44” upwards). The incorporated probe pan is configurable to your inspection requirements and is capable of holding either a single UT probe up to a maximum of 12 probes simultaneously (diameter dependent). In addition to mounting multiple transducers the powerful drive system can also mount a compatible onboard acquisition unit, in addition to scanning accessories including an HD camera, thermal surface monitor or optional lighting. This combination of onboard solutions can provide a live visual assessment for the most precise and efficient defect detection and data acquisition.





Features

  • Versatile:
    • OD Pipe Weld Inspection 10" - Flat
    • ID Pipe Weld Inspection 44" upwards
    • Tank and Vessel Weld Inspection
  • Compatible: Works with any OEM's Acquisition Unit - Mounted directly to the carriage or stand alone. A rack mounting option is also available.
  • Dynamic: Adheres to any inspection surface using applicable track mount options
  • User-Friendly: Lightweight components for easy set-up with one operator
  • Economical: One scanning solution for multiple applications

Technical Specifications

Orbital Scanner - Carriage

Dimensions (WxLxH): 13" x 12" x 7" (330 x 307 x 176 mm)
Mass: 16.3 lbs. (7.4 kg)
Mass Payload: 44 lbs. (20 kg)
Max Scanning Speed (Conditions Dependent): Min = 0 mm/s
Max = 60 mm/s
IP Rating: IP65
Operating Temperatures: 14° to 122°F (-10° to 50°C)
Operating Humidity: 10 - 90%
Power Requirements: 90 - 260 VAC



Orbital Scanner - Probe Pan

Dimensions (WxLxH): 13.7" x 15" x 5.6" (348 x 383 x 142 mm)
Unladen Mask: 4 lbs. (1.9 kg)
Axial Stroke: ~10" (~250 mm)
Radial Stroke: 2.5" (65 mm)
Orbital Scanner - Probe Pan Extra Wing

Dimensions (WxLxH): 14" x 8" x 1.5" (354 x 201 x 40 mm)
Unladen Mass: 1.5 lbs. (0.7 kg)
Axial Stroke: ~10" (~250 mm)
Orbital Scanner - 20" OD Track

Track Material: 316SS
Track Foot Material: Delrin
Straight Track Length: 75" (1915 mm)
Standoff Height: ~2" (~50 mm)
Orbital Scanner - Umbilical

Length: 16', 33', 66', 98' (5, 10, 20, 30 m)
Recommended Content: 2 x Phased Array
8 x Conventional UT (Lemo 00)
1 x Couplant Tube
Wrapped: Various wraps available

Standard Kit Includes

  • 1 x Flexible tension track to suit 6” NPS – Flat
  • 1 x Orbital Scanner Carriage
  • 1 x Probe Pan (configurable to inspection requirement)
  • 2 x Probe Pan Wings
  • 1x Umbilical (various lengths available)
  • 1x Orbital Scanner Drive Controller

Additional Accessories

  • HD Camera
  • Surface Temperature Monitor
  • Lighting
  • GPS
  • Vacuum Track
  • Magnetic Track
  • Phased Array Probes & Wedges
  • TOFD Probes & Wedges
  • Automated SSW Transverse Probes
