Duo Compact TOFD Scanner

Duo Compact TOFD Scanner

Economical, Durable & Compact TOFD Scanner

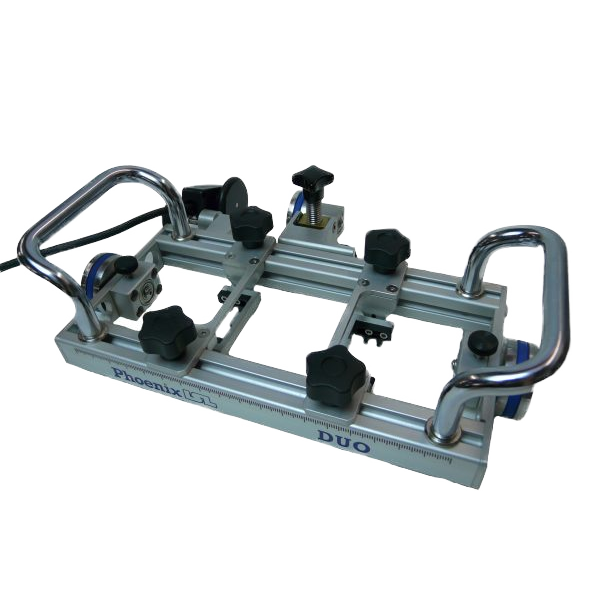

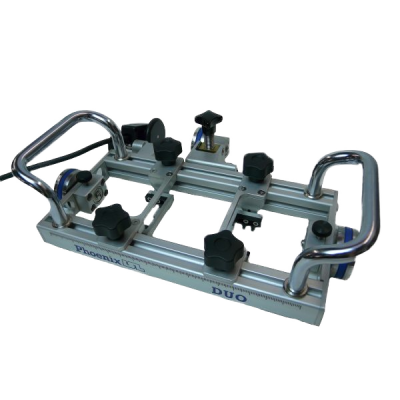

The Duo scanner is a robust, ergonomic scanning frame with operator-friendly features offering fast setup and reliable, repeatable TOFD inspections of pipe welds, from 2”OD up to flat plate. The Duo combines the benefits of simple, tool-less probe installation and adjustment with a sturdy frame complete with handles that ensure ease of operation and movement around pipes. Engineered from durable, light-weight aluminum, Duo is suited to all on-site conditions, providing long-term repeatability. Wedges snap in and out of the Duo scanner frame without the need to unscrew any parts. Probe separation is quick and simple to adjust with a graduated scale which allows accurate positioning whilst maintaining probe alignment. Equipped with three strong magnetic wheels that provide adhesion and accurate tracking, the scanner also incorporates tool-free adjustments for varying pipe sizes and a brake for hand repositioning, so is ideal for rope access inspections. Available without wheels for low-cost-hand-held scanning solution.

Features & Benefits

  • Operator friendly for fast inspections
  • Robust, ergonomic frame with added handles for ease of use

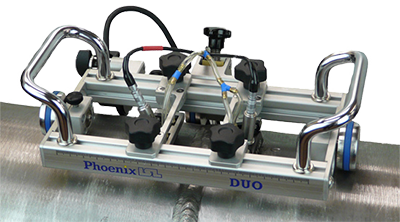

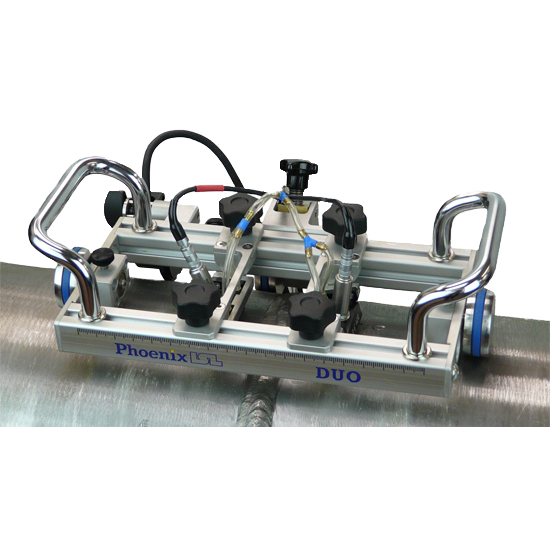

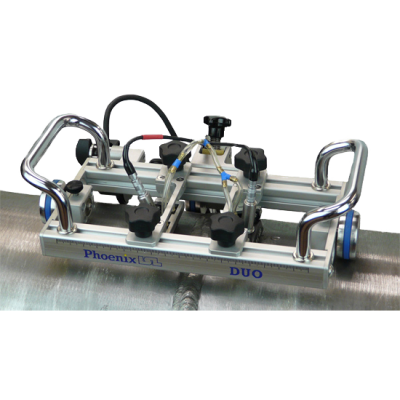

  • Three magnetic wheels for adhesion and accurate tracking
  • Brake for hand repositioning
  • Graduated scale provides accurate probe positioning whilst maintaining alignment
  • Quick release wedges
  • Cost-effective, high-performance TOFD solution

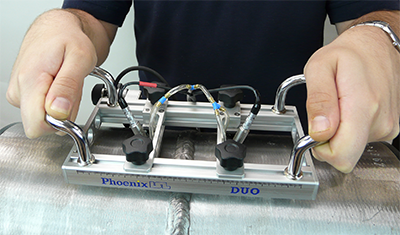

  • Low-cost option without wheels available
  • Operates with any flaw detection system

Technical Specifications

Duo Specifications

  • Compact design: 9.5" x 7" x 3" (240 x 180 x 80mm) (with wheels)
  • Lightweight: 2.75 lbs. (1.25 kg)
  • Encoder Resolution: 65.6 steps/mm
  • Spring-loaded waterproof wheel encoder - IP68 rated
  • Range: 2” OD up to flat

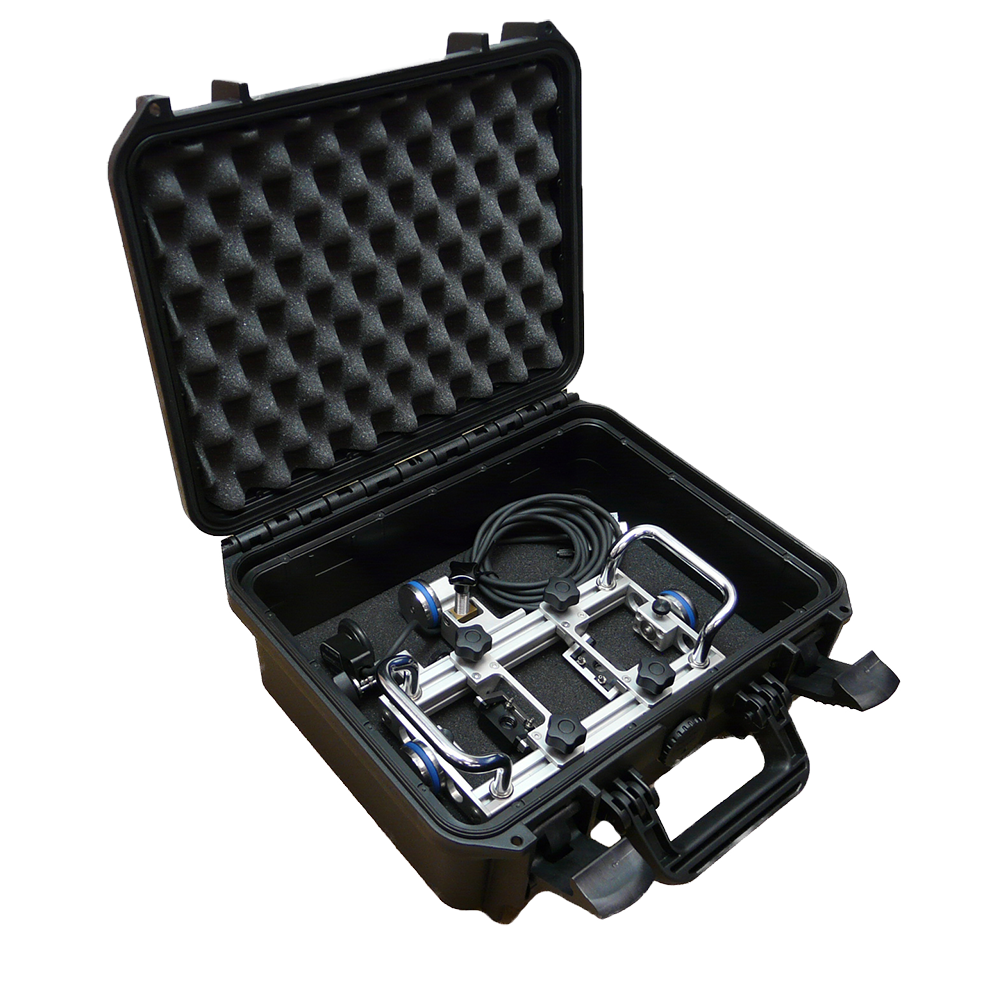

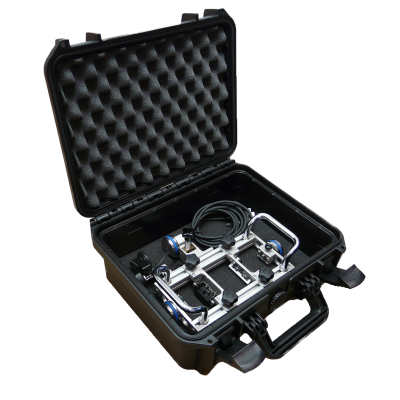

Standard Kit Includes

  • Duo scanning frame (with/out magnetic wheels)
  • Waterproof wheel encoder
  • Durable carry case
