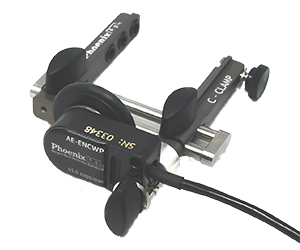

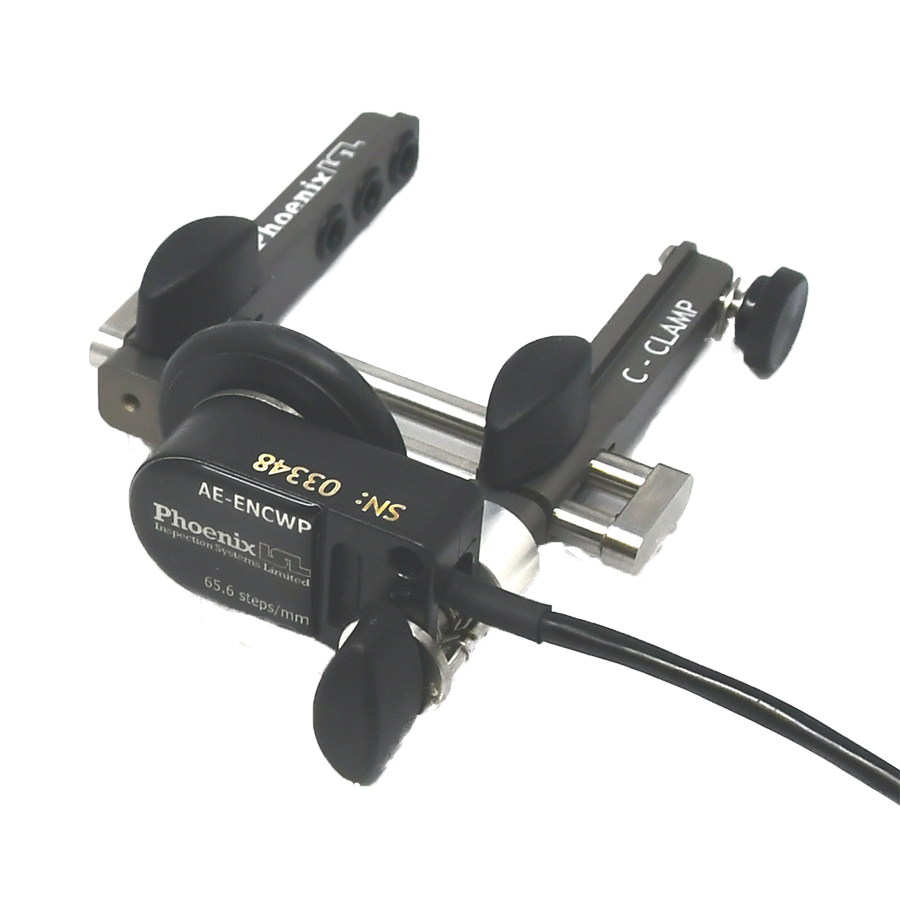

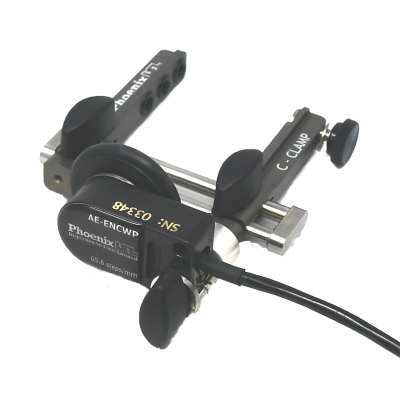

C-Clamp Encoder

Versatile, Waterproof Wheel Encoder

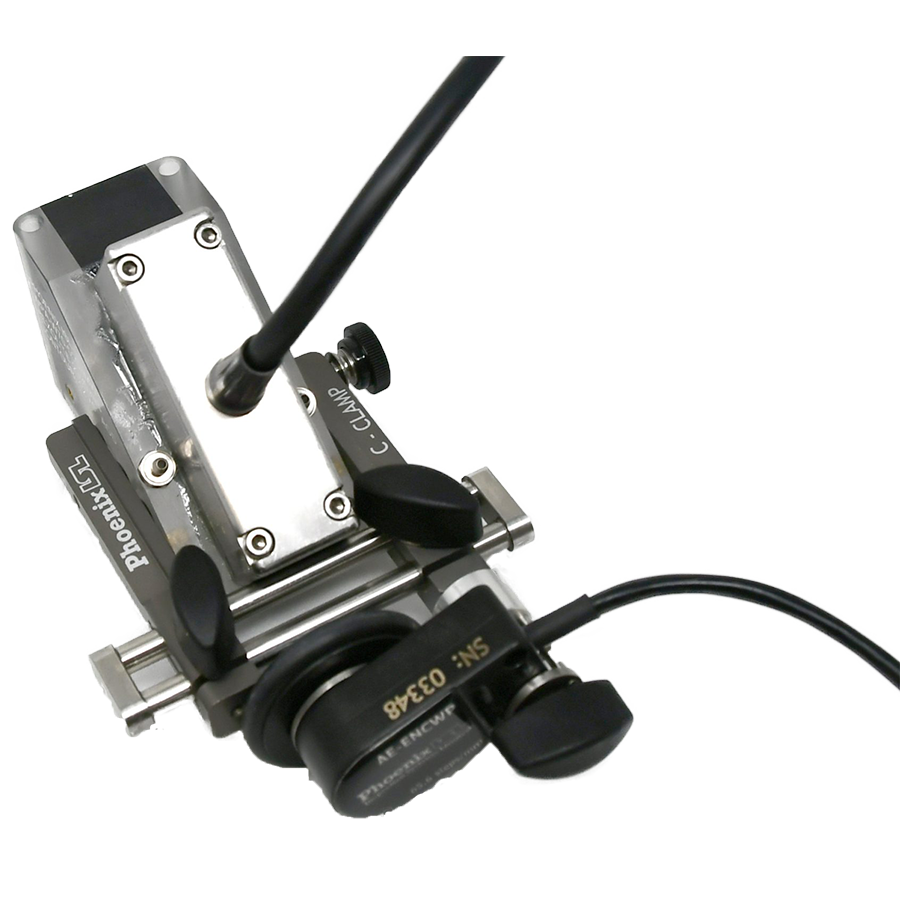

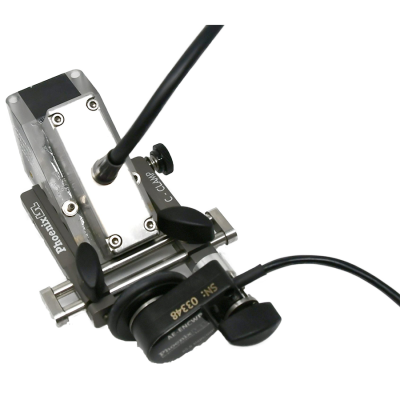

The C-Clamp encoder is an economical universal accessory for single axis inspections requiring no tools for setup and operation. Ideally suited to linear manual phased array inspections it can also fit a broad range of ultrasonic transducers and wedges. The compact design allows use in areas with limited access. The C-Clamp Encoder arms can be quickly adjusted to the transducer or wedge width and then locked and clamped with thumbscrews. The waterproof wheel encoder is then fitted either behind or alongside the clamp dependent upon the inspection needs. The encoder is spring loaded onto the surface with the spring tension adjustable via the attachment thumb screw.

Features & Benefits

• Simple: Economical solution that requires no tools to set up
• Precise: High resolution encoded scans for single axis applications
• Versatile: Fully adjustable for any transducer or wedge up to 55mm wide
• Strong clamp mechanism ensures no lateral movement of encoder when scanning
• Encoder is offset from the inspection area to reduce the risk of the wheel skidding on couplant
• Waterproof
• Can be positioned at 0° & 90° (for B & D scans)
• Adjustable spring loading guarantees encoder always stays in contact with inspection surface
• Compact design allows use in areas with limited access
• Can be used with any instrumentation

Applications

• Pipe and vessel welds
• Bolt hole crack detection
• Linear array corrosion mapping
• B & D-scans

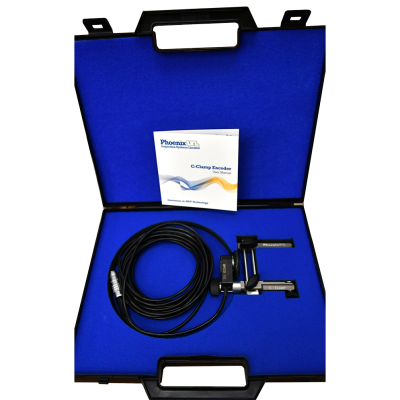

Standard Kit Includes

• Encoder with 2.5m cable
• Universal clamp system
• Protective Case
