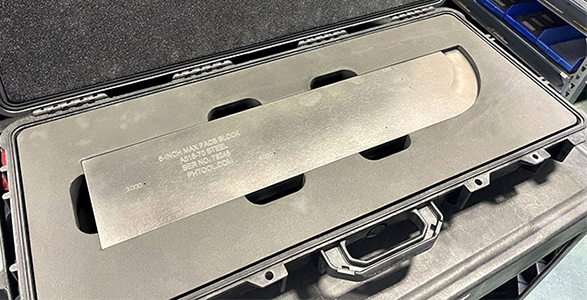

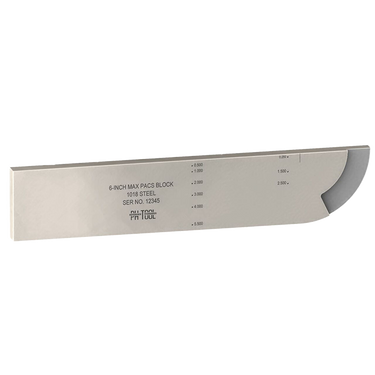

PH Tool 6" MAX PACS Blocks

PH Tool 6" MAX PACS Blocks

Overview

Super-sized Phased Array Calibration Blocks for thicknesses of up to 6". End radii for distance calibration and side-drilled holes for DAC/TCG calibrations.

Key Features:

  • 9 drilled thru-holes @ 3/32" diameter
  • Machine engraved with S/N, Alloy and hole location





Technical Specifications

6" MAX PACS Specifications

  • Alloys:
    • Aluminum 7075-T6
    • 1018 Steel
    • 304 Stainless Steel
  • Dimensions: 1.25" wide x 6.000" tall x 30.0" long
  • Weight: 60 lbs.
Description Part # Saved Price Select Option Add to
PH Tool 6" MAX PACS Block (select material)
Model #
UT-PHT-MAX-PACS-ICS-Master Request Pricing
Optional Documentation: Full-Dimensional Inspection Report showing all of the As-built dimensions of the block. UT-PHT-MAX-PACS-ICS-CERT $197.00
