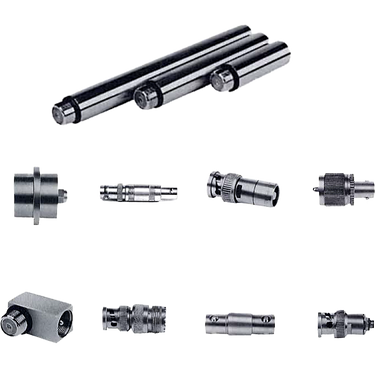

Technisonic Search Tubes Cables and Adaptors

Technisonic Search Tubes Cables and Adaptors

304 Stainless Steel and Centerless Search Tubes Ground to .737" Diameter with 8 Adaptor Types Available

Overview

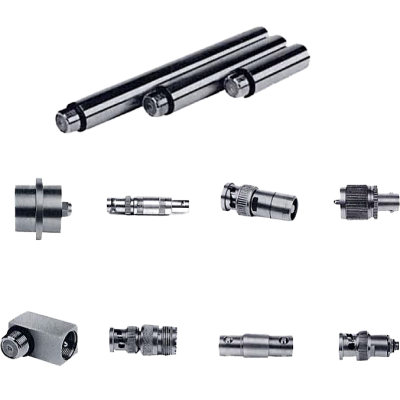

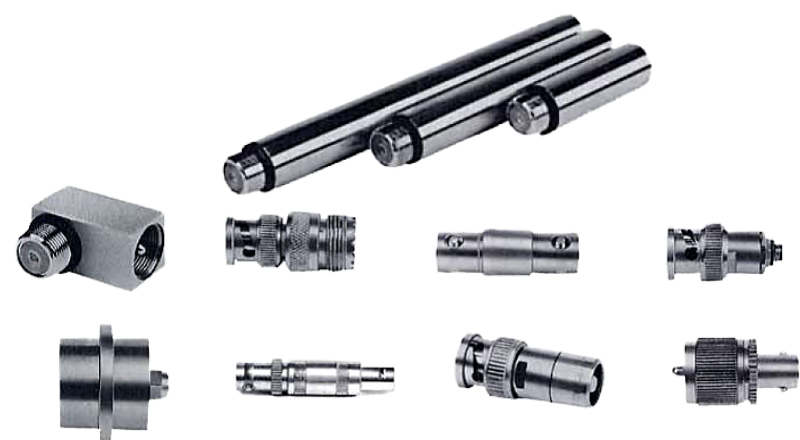

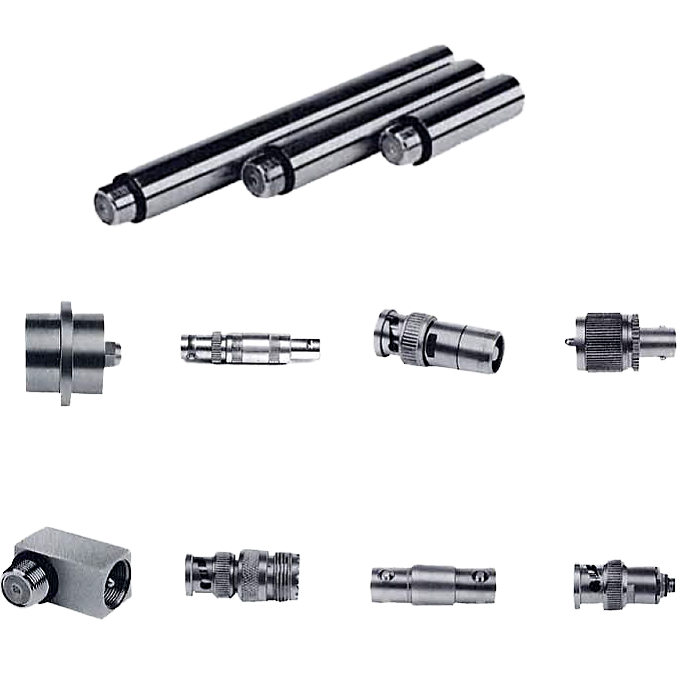

Technisonic Search Tubes and Adaptors work together to extend ultrasonic transducers to hard-to-reach test surfaces and to convert between connector types across probes, cables, and instruments. Search tubes are machined from 304 stainless steel and centerless ground to a .737" diameter, with an integral UHF connector on all tubes 4" and longer. Adaptors bridge common connector combinations — UHF, BNC, Lemo #1, and microdot — so any probe can be paired with any instrument or search tube in the field.

Features

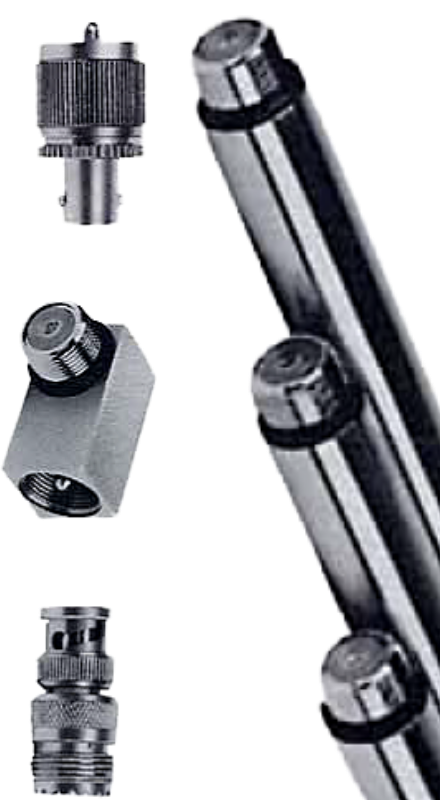

  • Search tubes machined from 304 stainless steel and centerless ground to .737" diameter (.748" available on request at no additional cost)
  • Integral UHF connector on all search tubes 4" and longer for maximum strength
  • Standard search tube lengths from 2" to 36"; special lengths and diameters available on request
  • Adaptors available for UHF, BNC, Lemo #1, and microdot connectors, including a right-angle adaptor for 3/4" search tubes
  • Search tubes and adaptors used together to reach difficult inspection surfaces and connect any transducer to any instrument or cable

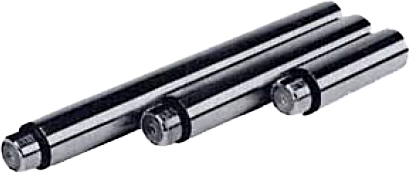

Search Tubes
Length Part No.
2.0" (5.1 cm) ST-2
4.0" (10.2 cm) ST-4
6.0" (15.2 cm) ST-6
12.0" (30.5 cm) ST-12
18.0" (45.7 cm) ST-18
24.0" (61.0 cm) ST-24
36.0" (91.4 cm) ST-36

• Special Search Tube lengths and diameters are available upon request.

Adaptors & Cables






Adaptors

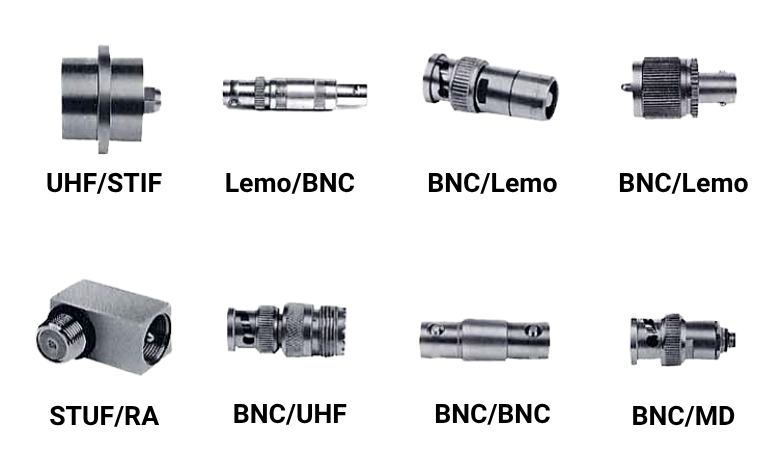

Type Description Part No.
UHF/STIF Adapts transducer with UHF connector to 1 3/8" (3.5 cm) Search Tube U-IF
Lemo/BNC Adapts instrument with Lemo #1 connector to BNC cable L1-B
BNC/Lemo Adapts instrument with BNC to Lemo #1 cable B-L1
UHF/BNC Adapts transducer with UHF connector to cable with BNC U-B
STUHF/RA Right Angle adaptor for 3/4" (1.9 cm) Search Tube ST-RA
BNC/UHF Adapts transducer with BNC connector to cable with UHF B-U
BNC/BNC Couples BNC cable to another BNC cable B-B
BNC/MD Adapts instrument with BNC to microdot cable B-M
Cables
RG 58 BNC/UHF Waterproof - 6' (1.8m) BUW-6
Belden 9222 Triax/UHF Waterproof - 6' (1.8m) TUW-6

Technical Specifications

Technical Specifications

Technical Specifications
Material: 304 Stainless Steel
Manufacturing: Centerless ground
Standard Connector Type: Integral UHF (on all tubes 4" (10.2 cm) and longer)
Available Adaptors:

UHF/STIF, Lemo/BNC, BNC/Lemo, UHF/BNC, STUHF/RA, BNC/UHF, BNC/BNC, BNC/MD
Standard Lengths: 2" (5.1 cm), 4" (10.2 cm), 6" (15.2 cm), 12" (30.5 cm), 18" (45.7 cm), 24" (61.0 cm), and 36" (91.4 cm)
Outer Diameter: 0.737" (18.7 mm); 0.748" (19.0 mm) available upon request at no additional cost
Special Orders: Special lengths and diameters available upon request

Product Literature

Description Part # Saved Price Select Option Add to
Technisonic Search Tube - Select Length
Model #
UT-TS-ST-M
$270.00
Technisonic Search Tube - 36.0" (91.4 cm) UT-TS-ST-36
Request Pricing
Technisonic Adaptor - Select Adaptor Type
Model #
UT-TS-UM
$24.00
Ultrasonic cable for Immersion Probe, BNC to UHF, 6', water-proof connector at UHF end - RG58 UT-TS-BUW-6
$125.00
Ultrasonic cable for Immersion Probe, Triax to UHF, 6', water-proof connector at UHF end - Belden 9222 UT-TS-TUW-6
$125.00
