Overview

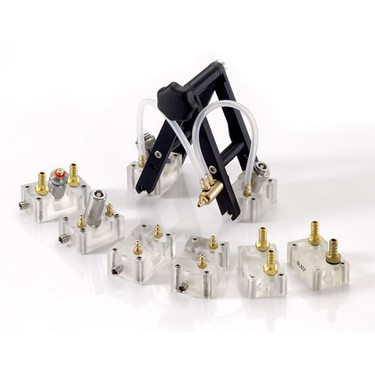

TOFD transducers and wedges generate refracted longitudinal waves in steel for use in applications involving crack sizing by means of the Time of Flight Diffraction technique. Tru-Sonic TOFD (time-of-flight diffraction) transducers are highly damped longitudinal wave probes that offer excellent resolution in challenging TOFD applications. These highly sensitive composite element broadband transducers are available in frequencies from 2.25 MHz to 15 MHz and in sizes from 3mm to 12mm. They are for use with specialized TOFD wedges designed to produce refracted longitudinal waves in steel.













TOFD Probes

Part Number Frequency (MHz) Crystal Size (mm) Probe Housing Connector
2.25-TOFD-MD-6 2.25 6 GE / Olympus Style Microdot
2.25-TOFD-L00-6 2.25 6 GE / Olympus Style Lemo 00
2.25-TOFD-MD-12 2.25 12 GE / Olympus Style Microdot
2.25-TOFD-L00-12 2.25 12 GE / Olympus Style Lemo 00
5.0-TOFD-MD-6 5 6 GE / Olympus Style Microdot
5.0-TOFD-L00-6 5 6 GE / Olympus Style Lemo 00
10.0-TOFD-MD-3 10 3 GE / Olympus Style Microdot
10.0-TOFD-L00-3 10 3 GE / Olympus Style Lemo 00
10.0-TOFD-MD-6 10 6 GE / Olympus Style Microdot
10.0-TOFD-L00-6 10 6 GE / Olympus Style Lemo 00
15.0-TOFD-MD-3 15 3 GE / Olympus Style Microdot
15.0-TOFD-MD-3 15 3 GE / Olympus Style Lemo 00
5.0-TOFD-L00-6-P 5 6 Phoenix Style Lemo 00
10.0-TOFD-L00-3-P 10 3 Phoenix Style Lemo 00
10.0-TOFD-L00-6-P 10 6 Phoenix Style Lemo 00
15.0-TOFD-L00-3-P 15 3 Phoenix Style Lemo 00







TOFD Wedges

GE & Olympus Style Wedges

Part Number Wedge Angle Probe Housing Type
G-TOFD-6-45L 45° 6 mm (1/4")
G-TOFD-6-60L 60° 6 mm (1/4")
G-TOFD-6-70L 70° 6 mm (1/4")
G-TOFD-12-45L 45° 12 mm (1/2")
G-TOFD-12-60L 60° 12 mm (1/2")
G-TOFD-12-70L 70° 12 mm (1/2")



Phoenix Style Wedges

Part Number Wedge Angle Probe Housing Type
P-TOFD-6-45L 45° 6 mm (1/4")
P-TOFD-6-60L 60° 6 mm (1/4")
P-TOFD-6-70L 70° 6 mm (1/4")
P-TOFD-12-45L 45° 12 mm (1/2")
P-TOFD-12-60L 60° 12 mm (1/2")
P-TOFD-12-70L 70° 12 mm (1/2")

Price includes water fittings and locking side screw

Product Literature

Description Part # Saved Price Select Option Add to

GE / Olympus Style Transducers
TOFD Microdot Transducer (2.25 MHz - 6mm) - GE / Olympus Style UT-TU-2.25-TOFD-MD-6
$310.00
TOFD Lemo 00 Transducer (2.25 MHz - 6 mm) - GE / Olympus Style UT-TU-2.25-TOFD-L00-6
$308.00
TOFD Microdot Transducer (2.25 MHz - 12 mm) - GE / Olympus Style UT-TU-2.25-TOFD-MD-12
$330.00
TOFD Lemo 00 Transducer (2.25 MHz - 12 mm) - GE / Olympus Style UT-TU-2.25-TOFD-L00-12
$330.00
TOFD Microdot Transducer (5.0 MHz - 6 mm) - GE / Olympus Style UT-TU-5.0-TOFD-MD-6
Request Pricing
TOFD Lemo 00 Transducer (5.0 MHz - 6 mm) - GE / Olympus Style UT-TU-5.0-TOFD-L00-6
$300.00
TOFD Microdot Transducer (10.0 MHz - 3 mm) - GE / Olympus Style UT-TU-10.0-TOFD-MD-3
$375.00
TOFD Lemo 00 Transducer (10.0 MHz - 3 mm) - GE / Olympus Style UT-TU-10.0-TOFD-L00-3
$375.00
TOFD Microdot Transducer (10.0 MHz - 6 mm) - GE / Olympus Style UT-TU-10.0-TOFD-MD-6
$395.00
TOFD Lemo 00 Transducer (10.0 MHz - 6 mm) - GE / Olympus Style UT-TU-10.0-TOFD-L00-6
$395.00
TOFD Microdot Transducer (15.0 MHz - 3 mm) - GE / Olympus Style UT-TU-15.0-TOFD-MD-3
$405.00
TOFD Lemo 00 Transducer (15.0 MHz - 3 mm) - GE / Olympus Style UT-TU-15.0-TOFD-L00-3
$405.00

Phoenix Style Transducers
TOFD Lemo 00 Transducer (5.0 MHz - 6 mm) - Phoenix Style UT-TU-5.0-TOFD-L00-6-P
$330.00
TOFD Lemo 00 Transducer (10.0 MHz - 3 mm) - Phoenix Style UT-TU-10.0-TOFD-L00-3-P
$375.00
TOFD Lemo 00 Transducer (10.0 MHz - 6 mm ) - Phoenix Style UT-TU-10.0-TOFD-L00-6-P
$395.00
TOFD Lemo 00 Transducer (15.0 MHz - 3 mm) - Phoenix Style UT-TU-15.0-TOFD-L00-3-P
$405.00

TOFD Wedges
TOFD GE & Olympus Style Wedge - 6 mm - 1/4" (specify angle)
Model #
UT-TU-G-TOFD-6-Master
$120.00
TOFD GE & Olympus Style Wedge - 12 mm - 1/2" (specify angle)
Model #
UT-TU-G-TOFD-12-Master
$120.00
TOFD Phoenix Style Wedge - 6 mm - 1/4" (specify angle)
Model #
UT-TU-P-TOFD-6-Master
$120.00
TOFD Phoenix Style Wedge - 12 mm - 1/2" (specify angle)
Model #
UT-TU-P-TOFD-12-Master
$120.00
