Tru-Sonic Quick Change Angle Beam Probes

Tru-Sonic Quick Change Angle Beam Probes

Overview

NDT Supply's Tru-Sonic transducers are tuned to provide the best combination of resolution and sensitivity and are well suited for most ultrasonic flaw detection applications. Certification included with all transducers.

Applications include welding inspection of pipe and thin materials, aircraft maintenance crack detection, oil field tubular inspection and crack detection on curved parts



Features

  • Good Resolution and Sensitivity
  • Interchangeable wedges
  • Interchangeable with some other brand wedges
  • Modified wedges for special applications
  • Microdot connectors are standard
  • Subvis connectors available on special order

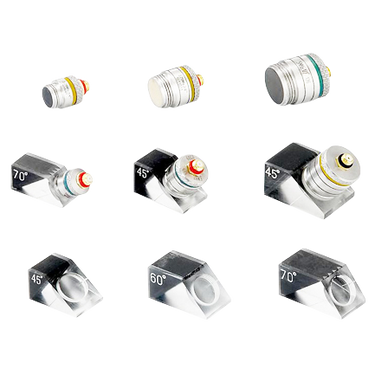

Quick Change Style Angle Beam

Model Frequency (MHz) Diameter (in.)
QC2-25 2.25 1/4
QC2-37 2.25 3/8
QC2-50 2.25 1/2
QC5-25 5 1/4
QC5-37 5 3/8
QC5-50 5 1/2
QC10-25 10 1/4
QC10-37 10 3/8
QC10-50 10 1/2
Description Part # Saved Price Select Option Add to
QC2 Series Quick Change, MD-Top, 2.25 MHz (specify diameter)
Model #
UT-TU-QC2-Master $205.00
QC5 Series Quick Change, MD-Top, 5 MHz (specify diameter)
Model #
UT-TU-QC5-Master $205.00
QC10 Series Quick Change, MD-Top, 10 MHz (specify diameter)
Model #
UT-TU-QC10-Master $285.00
