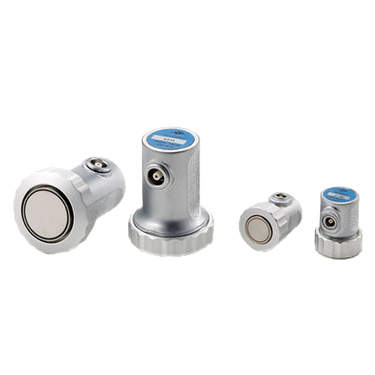

Tru-Sonic Euro Style Straight Beam Probes

Tru-Sonic Euro Style Straight Beam Probes

General Purpose Medium Dampened Probes for Flaw Detection

Good Resolution & Sensitivity

General purpose medium dampened flaw probes for detection and thickness gauging applications with a combination of a ceramic face and protective membrane. NDT Supply's Tru-Sonic transducers are tuned to provide the best combination of resolution and sensitivity. Certification included with all transducers.



Features

  • Lemo connectors standard. Optional microdot type, Subvis or BNC connectors
  • Band width: 50-55% at -6Db
  • Sensitivity equal or better than major name brands
  • Metal housing
  • Combination Ceramic Face and Protective Membrane
  • Membrane optional for 12 mm, 20 mm, and 24 mm probes
  • 0.5 MHz and 1 MHz are Composite Type
  • Certification included





Euro Style Straight Beam

Model Frequency (MHz) Diameter (mm) Connector
CRE0.5-24 0.5 24 Lemo 1
CRE1-24 1 24 Lemo 1
CRE2-12 2 12 Lemo 00
CRE2-20 2 20 Lemo 00
CRE2-24 2 24 Lemo 1
CRE4-12 4 12 Lemo 00
CRE4-20 4 20 Lemo 00
CRE4-24 4 24 Lemo 1

Product Literature

Description Part # Saved Price Select Option Add to
CRE0.5 Series Probe, Lemo1-Side, 0.5 MHz (specify diameter)
Model #
UT-TU-CRE0.5-Master
$416.00
CRE1 Series Probe, Lemo1-Side, 1 MHz (specify diameter)
Model #
UT-TU-CRE1-Master
$370.00
CRE2 Series Probe, Lemo00-Side, 2 MHz (specify diameter)
Model #
UT-TU-CRE2-Master
$195.00
CRE4 Series Probe, Lemo00-Side, 4 MHz (specify diameter)
Model #
UT-TU-CRE4-Master
$195.00
