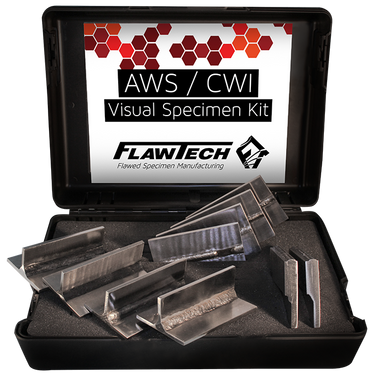

FlawTech AWS/CWI Visual Specimen Kit

FlawTech AWS/CWI Visual Specimen Kit

Kit is designed specifically for VT weld inspection.

AWS / CWI Visual Kit

  • Based on AWS D1.1
  • Material: Carbon Steel
  • 10 Specimens:
    • 4 Tees: 4" x 6" x 2" x 0.25"
    • 2 Plates: 4" x 6" x 0.25"
    • 2 Edge & Lap Joints: 4" x 6" x 0.375"
  • Flaws: 25 total. Each Specimen as at least 2 flaws randomly placed.
    • Flaws are designed to be "Borderline" Acceptable or Rejectable.
  • Welding Process: SMAW
  • Document Package Includes: Certificate of Conformance, CAD Drawings & Test Sheets
  • Free Carrying Case
  • Weight: ~40 lbs.





Flaws Include:

  • Undercut
  • Crater & Longitudinal Crack
  • Excessive Convexity
  • Undersize & Oversize Leg
  • Cluster & Aligned Porosity
  • Arc Strike
  • Overlap
  • Incomplete Penetration
  • Excessive Reinforcement
  • Underfill
  • Concavity
  • Transverse Crack

There is a $5.00 Handling fee on FedEx shipments from FlawTech.

Product Literature

Description Part # Saved Price Select Option Add to
FlawTech AWS/CWI Visual Kit FS-FTK-AWS-K1
$2,785.00
